PXIE-6363 National Instruments

PXIE-6363 National Instruments Programmable controller

Product  Description：

The National Instruments PXIe-6363 is a high-performance multifunction data acquisition (DAQ) module from the NI X Series family. Designed for the PXI Express bus, it provides a comprehensive suite of analog I/O, digital I/O, and counter/timer functionality on a single board, optimized for multicore processors and high-throughput data streaming.

Product Specifications

• Analog Input: 32 single-ended or 16 differential channels with 16-bit resolution. It supports a maximum sampling rate of $2.00 \text{ MS/s}$ for a single channel and a $1.00 \text{ MS/s}$ aggregate rate for multiple channels.

• Input Ranges: Multiple software-selectable ranges including $\pm 0.1 \text{ V}$, $\pm 0.2 \text{ V}$, $\pm 0.5 \text{ V}$, $\pm 1 \text{ V}$, $\pm 2 \text{ V}$, $\pm 5 \text{ V}$, and $\pm 10 \text{ V}$.

• Analog Output: 4 channels with 16-bit resolution and a maximum update rate of $2.86 \text{ MS/s}$ for a single channel (simultaneous updates for 4 channels at $1.25 \text{ MS/s}$).

• Digital I/O: 48 digital I/O lines, with 32 lines capable of high-speed hardware-timed operation (up to $10 \text{ MHz}$).

• Counter/Timers: Four 32-bit counters for tasks such as pulse-width modulation (PWM), encoder sensing, frequency measurement, and event counting.

• Bus Interface: PXI Express (x1 Gen 1) with a bandwidth of up to $250 \text{ MB/s}$ in each direction.

• Timing and Synchronization: Equipped with NI-STC3 technology, providing independent timing engines for analog and digital I/O.

Product Advantages

• Advanced Timing with NI-STC3: This technology enables sophisticated triggering and synchronization, allowing the module to execute retriggerable measurement tasks and coordinate multiple subsystems without taxing the host CPU.

• High Throughput: Leveraging the PCI Express bus architecture, the PXIe-6363 avoids the bottlenecks typical of older bus types, making it ideal for high-frequency signal analysis and real-time control.

• Optimized for Multicore: The NI-DAQmx driver software is designed to take full advantage of multicore computer systems, allowing for efficient parallel processing of data acquisition and analysis tasks.

• Integration and Flexibility: By combining analog, digital, and counter functions into one slot, it reduces the system footprint and simplifies the synchronization of different signal types.

Important Considerations and Precautions

• Overvoltage Protection: Analog input pins are protected up to $\pm 25 \text{ V}$ when the device is on and $\pm 15 \text{ V}$ when off. Exceeding these limits can cause permanent hardware damage.

• Measurement Category: This device is not rated for Measurement Categories II, III, or IV. Do not connect it directly to MAINS circuits or high-energy transients.

• Grounding: While Analog Input Ground (AI GND), Analog Output Ground (AO GND), and Digital Ground (D GND) are connected on the device, they should be wired carefully to minimize crosstalk and noise in high-precision applications.

• Thermal Management: Ensure the PXI Express chassis has adequate cooling. The module is rated for an operating temperature of $0^\circ\text{C}$ to $55^\circ\text{C}$, and blocked airflow can lead to measurement inaccuracies or thermal shutdown.

• Warm-up Time: For maximum accuracy, allow the module to warm up for at least 15 minutes after the system is powered on before performing measurements or calibration.

Product Applications

The PXIe-6363 is widely utilized in professional engineering environments that require high-speed, reliable data collection.

• Automated Test Equipment (ATE): Used in manufacturing lines to verify the functionality of electronic components, circuit boards, and consumer electronics.

• Control Systems: Providing the high-speed feedback loop necessary for controlling motors, actuators, or specialized industrial machinery.

• Scientific Research: Capturing high-frequency waveforms in physics experiments or monitoring complex biological signals in medical research.

• Aerospace and Defense: Testing structural integrity through strain gauges or performing vibration analysis on aircraft components.

• Power Monitoring: Analyzing power quality and transient signals in smart grid development and renewable energy systems.

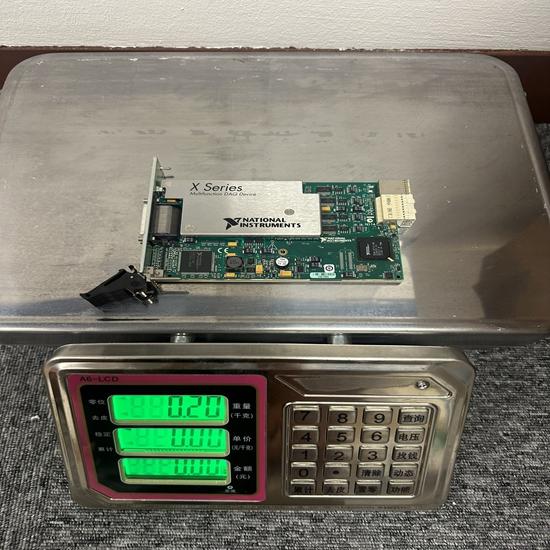

The structure and details of the product：
