PXI-6229 National Instruments

PXI-6229  National Instruments Programmable controller

Product  Description：

The National Instruments PXI-6229 is a high-performance multifunction data acquisition (DAQ) module designed for the PXI platform. It belongs to the M Series family, which is engineered to provide high accuracy at fast sampling rates. The PXI-6229 is a versatile solution for systems requiring a large number of analog inputs and outputs alongside digital I/O capabilities. It is widely used for automated test, control, and design applications where high channel density and reliable synchronization are paramount.

Product Parameters

The PXI-6229 offers a comprehensive set of input and output features to handle complex measurement tasks.

• Analog Input: It features 32 differential or 64 single-ended channels. The module provides a 16-bit resolution with a maximum sampling rate of 250 kS/s for a single channel. The input ranges are software-selectable, typically ranging from ±0.2 V to ±10 V.

• Analog Output: The module includes 4 analog output channels with 16-bit resolution and a maximum update rate of 833 kS/s.

• Digital I/O: It provides 48 digital I/O lines, 32 of which are hardware-timed at up to 10 MHz. This allows for precise digital control and communication.

• Counters/Timers: It is equipped with two 32-bit counters/timers for frequency measurements, pulse-width modulation (PWM), and encoder interfacing.

• Triggering: The module supports digital and analog triggering to synchronize data acquisition with external events.

• Bus Interface: Designed for the PXI backplane, utilizing the PXI Trigger Bus and PXI Star Trigger for multi-module synchronization.

• Connectivity: It typically uses a 68-pin VHDCI connector for high-density wiring.

Product Advantages

• High Channel Density: With 64 analog inputs and 48 digital lines in a single PXI slot, it is ideal for space-constrained environments requiring many measurement points.

• NI-STC2 Connectivity: The module utilizes the NI-STC2 system controller chip, which offers advanced timing and synchronization capabilities, including independent timing engines for analog and digital I/O.

• Superior Accuracy: The NI-PGIA 2 amplifier technology ensures high linearity and fast settling times, which minimizes measurement errors even when switching between channels at high speeds.

• Ease of Integration: It is fully compatible with NI-DAQmx driver software, allowing for seamless integration with LabVIEW, C++, C#, and Python.

• Self-Calibration: The module features an onboard reference for self-calibration, ensuring the highest level of measurement accuracy over time without needing external equipment for routine adjustments.

Important Considerations and Precautions

• Signal Conditioning: For high-voltage or high-noise environments, it is recommended to use SCXI or SCC signal conditioning to protect the module and improve signal integrity.

• Cabling and Shielding: To maintain 16-bit accuracy, users must use shielded cables and proper grounding techniques to prevent electromagnetic interference (EMI).

• Power and Cooling: Ensure the PXI chassis has adequate cooling and power capacity, as high-density DAQ modules can generate significant heat during high-speed operations.

• Maximum Voltage Limits: Do not exceed the specified input voltage limits (typically ±30 V for powered-on modules) to avoid permanent damage to the onboard circuitry.

• Software Versioning: Ensure that the version of NI-DAQmx installed on the host controller supports the PXI-6229 hardware to prevent communication errors.

Product Applications

The PXI-6229 is a flexible tool used across various industries for specialized tasks.

• Automated Test Equipment (ATE): Used in production lines for testing consumer electronics, automotive components, and medical devices.

• Control Systems: Implementing PID control loops or hardware-in-the-loop (HIL) simulations for aerospace and industrial automation.

• Research and Development: Capturing high-speed transient signals in physics or mechanical engineering experiments.

• Environmental Monitoring: Logging data from a large array of sensors such as thermocouples, pressure transducers, and flow meters.

• Data Logging: Long-term monitoring of structural integrity in civil engineering or power grid performance.

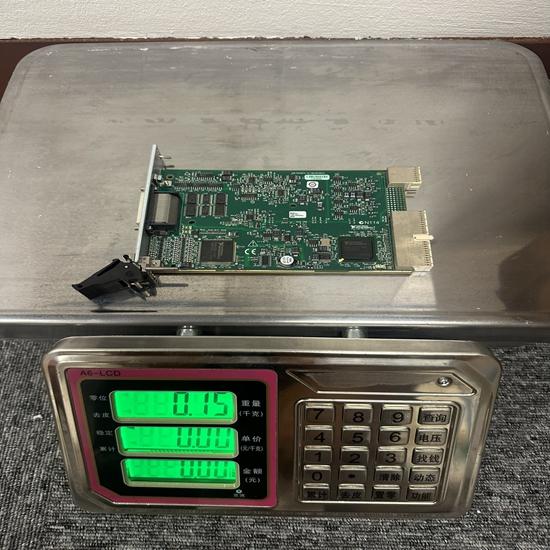

The structure and details of the product：
