PXIE-1073 National Instruments

PXIE-1073 National Instruments Programmable controller

Product  Description：

The National Instruments PXIe-1073 is a high-performance 5-slot PXI Express chassis designed for a wide range of test and measurement applications. It is particularly notable for integrating a remote controller directly into the chassis backplane, which simplifies the setup by allowing a direct connection to a host computer via a cabled PCI Express link. This eliminates the need for a separate system controller module in the first slot, maximizing the available space for instrumentation modules.

Product Specifications

• Chassis Type: PXI Express (PXIe)

• Total Slots: 5 slots in total

• Slot Breakdown: 5 PXI Express hybrid slots, which support both PXI Express and standard PXI modules (with the exception of PXI modules requiring a local bus).

• Integrated Controller: Includes an integrated MXI-Express x1 link for remote control from a PC or laptop.

• Bandwidth: Supports up to $250 \text{ MB/s}$ system bandwidth and $250 \text{ MB/s}$ per-slot dedicated bandwidth.

• Power Supply: Integrated AC power supply providing up to $144 \text{ W}$ total power for the modules.

• Cooling: Forced-air cooling with a bottom-to-top airflow pattern to ensure thermal stability for high-performance modules.

• Acoustics: Features a low-noise fan design, making it suitable for office or laboratory environments where noise levels are a concern.

• Timing and Synchronization: Includes a $10 \text{ MHz}$ reference clock, PXI trigger bus, and PXI star trigger for multi-module synchronization.

Product Advantages

• Compact and Integrated Design: By integrating the MXI-Express remote controller, the PXIe-1073 provides a smaller footprint compared to traditional chassis-and-controller combinations, saving valuable bench or rack space.

• Hybrid Slot Flexibility: Every slot is a hybrid slot, meaning you have the freedom to mix and match older PXI modules with the latest high-bandwidth PXI Express modules without worrying about slot compatibility.

• Cost-Effective Entry: It serves as an affordable entry point for PXI Express technology, offering the benefits of high-speed data transfer without the cost of a high-end embedded controller.

• Simplified Connectivity: The "plug-and-play" nature of the cabled PCIe link allows users to control their PXI system using existing desktop or laptop computers through an appropriate NI PCIe or ExpressCard host adapter.

• Quiet Operation: The advanced cooling system is designed to be exceptionally quiet, which is a significant advantage in acoustic-sensitive R&D settings.

Important Considerations and Precautions

• Slot 1 Limitation: Unlike standard PXIe chassis, the PXIe-1073 does not have a user-accessible System Controller slot. The control logic is hard-wired, so you cannot install an NI embedded controller (like a PXIe-8840) into this chassis.

• Host Interface Required: To use this chassis, you must have a compatible host interface card (such as a PCIe-8361 for desktops or an ExpressCard-8360 for older laptops) and the necessary MXI-Express cable.

• Power Budgeting: With a total module power of $144 \text{ W}$, users must calculate the power draw of all installed modules to ensure the total does not exceed the power supply capacity, especially when using high-performance FPGA or RF modules.

• Airflow Management: To maintain proper cooling, ensure that the air intake at the bottom and the exhaust at the rear/top are not obstructed. For empty slots, it is recommended to use filler panels to maintain consistent airflow across active modules.

• Software Requirements: Ensure that the NI-PXI Platform Services software is installed on the host computer to properly identify the chassis and modules in Measurement & Automation Explorer (MAX).

Product Applications

The PXIe-1073 is highly versatile and used across various industries for localized or portable testing.

• Automated Test Equipment (ATE): Its compact size and high speed make it ideal for manufacturing test stands where floor space is limited but data throughput is critical.

• Data Acquisition and Monitoring: Used in structural health monitoring or environmental testing where multiple channels of synchronized data need to be captured and streamed to a PC.

• Validation and Research: Perfect for laboratory benches where engineers need to quickly swap modules to validate different components or subsystems.

• Portable Instrumentation: Because it can be controlled by a laptop via an ExpressCard or Thunderbolt-to-PCIe adapter (with third-party hardware), it is often used for field diagnostics and mobile testing.

• Education: Its lower price point compared to high-slot-count chassis makes it a popular choice for university laboratories teaching automated instrumentation and control.

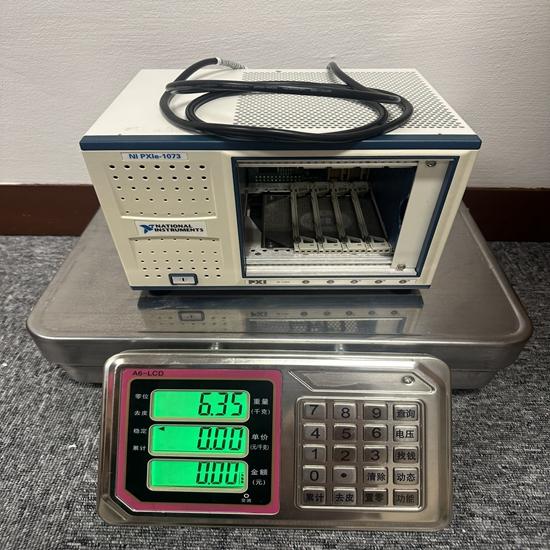

The structure and details of the product：
