PXA45-1015 ABB Bailey

PXA45-1015 ABB Bailey Analog Output Modules

Product  Description：

• • • • • • The PXA45-1015 is part of the S800 and Advant OCS (Open Control System) family. It is engineered to handle the "dirty" electrical environment of the factory floor by providing a physical break between the control logic and the actuators. The module typically houses high-quality electromechanical relays or solid-state components that can switch significantly higher currents and voltages than the standard I/O cards can support. Its design is optimized for DIN rail mounting and features clear labeling and diagnostic indicators, making it a staple in legacy ABB control system upgrades and maintenance.

            Product Parameters

            • Model Series: ABB Advant OCS / S800 I/O

            • Input Voltage: $24 \text{ VDC}$ (standard logic level from the controller)

            • Switching Capacity: Typically rated for up to $250 \text{ VAC}$ or $30 \text{ VDC}$ at currents ranging from $3 \text{ A}$ to $10 \text{ A}$, depending on the specific load type (inductive vs. resistive).

            • Isolation Voltage: $2.5 \text{ kV}$ or higher between the coil and contact circuits to prevent back-EMF from reaching the PLC.

            • Response Time: Fast pick-up and drop-out times, generally under $15 \text{ ms}$ for electromechanical versions.

            • Mechanical Life: Rated for millions of cycles, ensuring long-term reliability in repetitive switching tasks.

            • Contact Material: Often utilizes silver-nickel or gold-plated alloys to minimize contact resistance and prevent oxidation.

            • Mounting: Designed for standard $35 \text{ mm}$ DIN rail or integrated into PXA-specific sub-racks.

            Product Advantages

            One of the primary advantages of the PXA45-1015 is its Enhanced System Protection. By isolating the controller from the field, it prevents accidental short circuits or high-voltage surges in the field from destroying expensive CPU or I/O modules. The Signal Amplification capability allows a low-current $24 \text{ V}$ signal to control large motor starters or heavy-duty solenoid valves directly.

            Additionally, the module offers Ease of Maintenance; since the relays are often the components most prone to wear, having them in a modular, easy-to-replace format like the PXA45-1015 saves hours of troubleshooting and repair time compared to fixed-relay systems. The Diagnostic Visibility provided by onboard LEDs allows technicians to instantly verify if a command signal is reaching the relay, simplifying the verification of the control loop.

            Important Considerations and Precautions

            When installing the PXA45-1015, it is crucial to account for Inductive Kickback. When switching inductive loads like solenoids or large contactor coils, users should install suppression diodes (for DC) or RC snubbers (for AC) across the load to prevent premature contact pitting.

            Another consideration is Contact Derating; if the module is used in high-temperature environments or at high altitudes, the maximum allowable current must be reduced according to ABB’s derating curves. Always ensure that the Wiring Terminals are tightened to the specified torque to prevent arcing and localized heating. Furthermore, users should never exceed the Maximum Switching Frequency specified in the manual, as rapid cycling can lead to mechanical fatigue of the relay armature or excessive heat buildup in solid-state versions.

            Product Applications

            The ABB PXA45-1015 is utilized across a broad range of heavy industries that rely on the ABB Advant platform for process stability.

            • Power Generation: Controlling the trip and close circuits of high-voltage circuit breakers and managing auxiliary pump operations.

            • Metals and Mining: Interfacing with heavy-duty conveyor motors and hydraulic power units in smelting and rolling mills.

            • Pulp and Paper: Managing the sequencing of large valves and steam control systems in the drying sections of paper machines.

            • Chemical and Petrochemical: Acting as the final control element for explosion-proof solenoids in hazardous areas (when installed in a suitable enclosure).

            • Marine Automation: Controlling shipboard power management systems and engine room auxiliary equipment where vibration resistance is required.

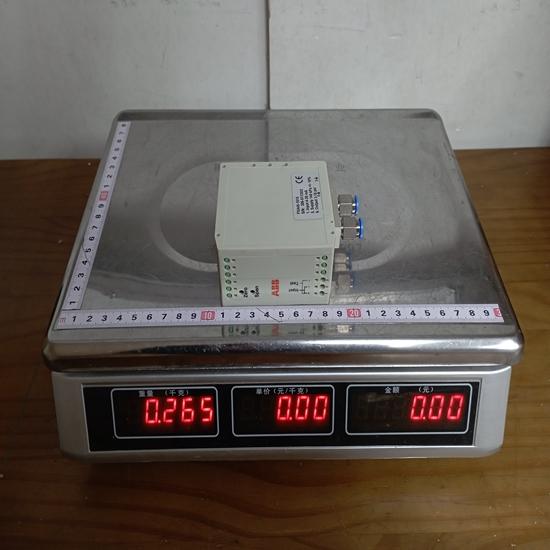

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
