07DC91-AD ABB Bailey

07DC91-AD ABB Bailey Analog Output Modules

Product  Description：

• • • • • • The 07DC91-AD is an integrated I/O device that serves as a distributed terminal in a networked control system. It is designed to be connected to the AC31 central unit via the CS31 system bus, allowing for data exchange over long distances without the need for extensive parallel wiring. The module is housed in a rugged industrial casing designed for DIN rail mounting, making it suitable for cabinet installations. It typically manages a combination of digital inputs and digital outputs, providing a versatile interface for monitoring switches and controlling actuators simultaneously in a single node.

            Product Parameters

            • Product Series: Advant Controller 31 (AC31)

            • Module Type: Digital Input/Output Module

            • Supply Voltage: $24 \text{ VDC}$ nominal (typically allowing a range of $19.2 \text{ V}$ to $30 \text{ VDC}$)

            • Digital Inputs: 16 channels, typically $24 \text{ VDC}$ (Sink/Source depending on configuration)

            • Digital Outputs: 8 to 16 channels (depending on sub-revision), transistor outputs rated for $24 \text{ VDC}$, $0.5 \text{ A}$ per channel

            • Communication Interface: CS31 System Bus (RS-485 based)

            • Address Setting: Manual addressing via rotary switches on the front or side of the unit

            • Status Indicators: LED diagnostics for power, system bus activity, and individual I/O status

            • Protection Rating: IP20, intended for clean, dry industrial environments

            Product Advantages

            A primary advantage of the 07DC91-AD is its Distributed Architecture, which significantly reduces the cost of cabling by allowing the I/O to be placed directly at the machine or process point. The Compact Footprint allows for high-density I/O configurations in small control boxes. It also offers Integrated Diagnostics, with LEDs that immediately signal if there is a communication error on the CS31 bus or a short circuit on the outputs, which simplifies maintenance. Furthermore, the High Reliability of the AC31 platform ensures long-term operation in harsh industrial conditions where electromagnetic noise and vibration are common.

            Important Considerations and Precautions

            When installing the 07DC91-AD, the most critical precaution is the Correct Termination of the CS31 Bus. A $120 \text{ Ohm}$ resistor must be placed at both physical ends of the communication line to prevent signal reflection and data corruption. Users must also be careful with Output Loading; exceeding the $0.5 \text{ A}$ limit per channel can cause thermal damage to the internal transistors.

            It is also important to ensure that the Address Configuration is unique; if two modules on the same CS31 bus share the same address, the entire network may become unstable. Lastly, since this is a legacy product, users should ensure they have a stable $24 \text{ VDC}$ power supply with adequate filtering, as modern power fluctuations can sometimes affect the communication stability of older microprocessor-based modules.

            Product Applications

            The 07DC91-AD is utilized in various automated environments that require reliable, decentralized digital signal processing.

            • Material Handling: Controlling conveyor belt motors and monitoring proximity sensors in large sorting facilities.

            • Building Automation: Managing lighting, ventilation fans, and security sensors across multiple floors or zones.

            • Food and Beverage: Interfacing with valves and switches in bottling or packaging lines where decentralized control is necessary for modular machine sections.

            • Water Treatment: Monitoring level switches and controlling small chemical dosing pumps in remote pumping stations.

            • Metalworking: Coordinating the safety interlocks and operation of pneumatic or hydraulic actuators on automated presses.

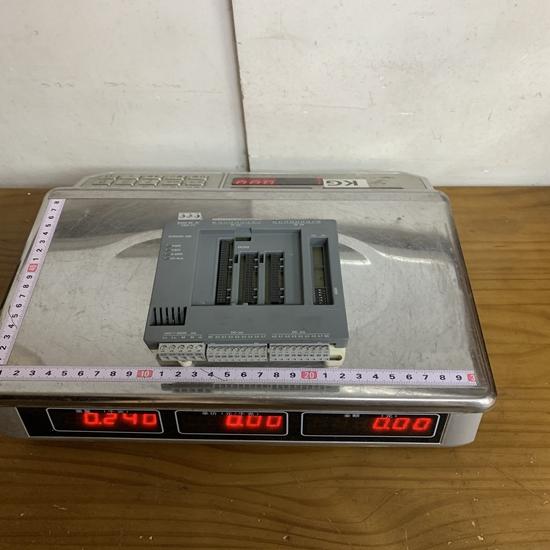

The structure and details of the product：
