DC532 1SAP240100R0001 ABB Bailey

DC532 1SAP240100R0001 ABB Bailey Analog Output Modules

Product  Description：

• • • • • • The DC532 is part of the AC500 platform’s S500 I/O expansion series. It is characterized by its high channel density, offering 16 digital input channels and 16 configurable digital input/output channels, totaling 32 I/O points. This module is designed to be mounted on an I/O terminal unit (TU515 or TU516), which allows for easy wiring and the ability to replace the electronic module without disturbing the field wiring. The module communicates with the central CPU through the internal I/O bus and supports advanced diagnostic functions to ensure system reliability.

            Product Parameters

            • Input/Output Capacity: 16 digital inputs ($24 \text{ VDC}$) plus 16 configurable channels that can be set as either inputs or outputs.

            • Supply Voltage: $24 \text{ VDC}$ nominal (process voltage).

            • Input Voltage Range: $-3 \text{ V}$ to $+5 \text{ V}$ for signal '0', and $+11 \text{ V}$ to $+30 \text{ V}$ for signal '1'.

            • Output Current: Max $0.5 \text{ A}$ per channel, with a maximum total current of $8 \text{ A}$ per module.

            • Output Type: Transistor, short-circuit proof and overload protected.

            • Switching Frequency: Up to $0.5 \text{ kHz}$ for inductive loads and up to $4 \text{ kHz}$ for resistive loads.

            • Isolation: Between the process voltage and the internal logic via optocouplers.

            • Operating Temperature: $0\text{°C}$ to $60\text{°C}$ (standard) or $-40\text{°C}$ to $+70\text{°C}$ for the "XC" extreme condition version.

            • Mounting: DIN rail mounting via the required Terminal Unit.

            Product Advantages

            A major advantage of the DC532 is its Versatility through Configuration. Since 16 of the 32 channels can be defined by the user as either inputs or outputs, it allows for a highly customized setup that reduces the need for different module types. The High Channel Density is another key benefit, as it provides 32 points in a module width of only $67.5 \text{ mm}$, significantly reducing the footprint in the electrical cabinet.

            The Advanced Diagnostics integrated into the module allow for real-time monitoring of channel status, including short-circuit and over-temperature detection, which simplifies maintenance. Additionally, the Hot-Plug Capability (when used with specific terminal units) allows for the replacement of modules during operation, minimizing downtime for the entire automation system.

            Important Considerations and Precautions

            When installing the DC532, ensure that the Total Current Consumption does not exceed the maximum rating of $8 \text{ A}$. Exceeding this limit can cause thermal damage to the internal busbars of the terminal unit. It is also essential to use Proper Fusing for the process voltage supply to protect both the module and the field devices from short circuits.

            Because this is a high-density module, Heat Dissipation must be managed; ensure there is adequate vertical clearance above and below the module for natural convection. Furthermore, verify that the Terminal Unit (TU515/TU516) is correctly seated on the DIN rail and that the DC532 module is firmly clicked into place. Improper seating can cause intermittent communication errors on the I/O bus. Lastly, always refer to the ABB Automation Builder software for the correct hardware configuration to ensure the I/O mapping matches the physical wiring.

            Product Applications

            The ABB DC532 is widely used in industrial automation where high-speed digital control is required across many points.

            • Machine Tooling: Controlling a large number of sensors and actuators in high-precision milling and grinding machines.

            • Packaging and Bottling: Managing the complex synchronization of conveyors, filling valves, and sorting gates.

            • Printing Industry: Coordinating the high-speed paper feed and alignment sensors in large-scale commercial printers.

            • Material Handling: Controlling the automated gates and sensor arrays in large distribution centers and airport baggage systems.

            • Building Automation: Managing lighting, blinds, and security sensors across multiple floors using the decentralized I/O structure.

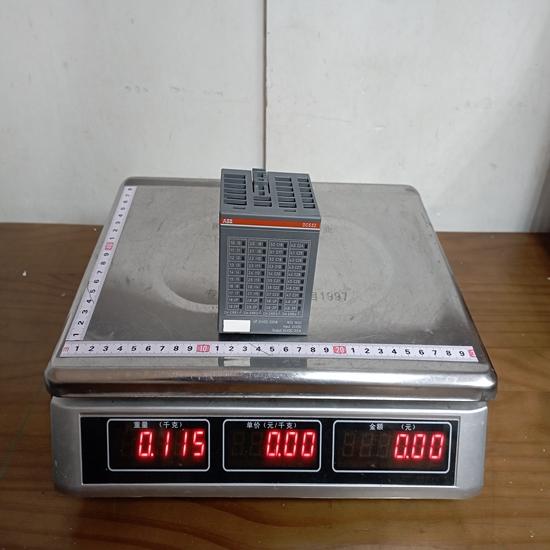

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
