DILM115 EATON

DILM115 EATON Coupler for external

Product  Description：

The Eaton DILM115 is a high-performance power contactor belonging to the DILM Series (formerly Moeller). It is designed for switching and controlling high-power loads in various industrial and commercial applications.

Product Specifications

• Product Type: Power Contactor (Motor Contactor)

• Designation: DILM115

• Rated Operational Current ($I_e$):

  • AC-3: $115 \text{ A}$ at $400 \text{ V}$ (for motor control)

  • AC-1: $160 \text{ A}$ at $400 \text{ V}$ (for resistive loads)

• Rated Power (Motor):

  • $400 \text{ V}$ (3-phase): $55 \text{ kW}$

  • $480 \text{ V}$: $75 \text{ hp}$

• Auxiliary Contacts: Typically $1 \text{ NO}$ (Normally Open) and $1 \text{ NC}$ (Normally Closed) integrated auxiliary contacts.

• Control Voltage ($U_c$): Available in various AC and DC control voltages (e.g., $24 \text{ VDC}, 110 \text{ VAC}, 230 \text{ VAC}$, etc.) depending on the specific model code suffix.

• Terminal Type: Screw terminals for main and control circuits.

• Degree of Protection: Typically IP00 on the terminals, and IP20 if equipped with protective covers, requiring installation within a suitable enclosure.

• Standards: Designed and tested according to international standards such as IEC/EN 60947 and UL/CSA.

Product Advantages

• High Performance and Reliability: The DILM series is known for its long mechanical and electrical lifespan, ensuring reliable operation even under frequent switching conditions.

• Compact Design: For its high current rating of $115 \text{ A}$, the DILM115 offers a relatively space-saving and compact footprint, which is beneficial for panel builders.

• Integrated Auxiliary Contacts: The built-in auxiliary contacts ($1 \text{ NO} + 1 \text{ NC}$) reduce the need for external auxiliary contact blocks in many standard applications, simplifying wiring and reducing cost.

• Global Approval and Compliance: The adherence to multiple international standards (IEC, UL, CSA) makes the DILM115 suitable for use in equipment destined for worldwide markets.

• Wide Range of Accessories: It is part of a complete system, supporting a full range of accessories, including motor protection circuit breakers, overload relays, and additional auxiliary contacts, for building comprehensive motor starter solutions.

Important Considerations (Precautions)

• Proper Selection: Ensure the contactor's rated operational current ($I_e$) and rated power correspond correctly to the application load (AC-3 for motors, AC-1 for resistive heating, etc.). Oversizing or undersizing can lead to premature failure.

• Control Voltage: Verify that the coil control voltage ($U_c$) of the specific DILM115 model matches the available control supply voltage to prevent coil damage.

• Overload Protection: The DILM115 is a switching device only; it does not provide motor overload protection. It must be paired with an appropriate thermal or electronic overload relay (like a DILM-G or ZB series relay) or a motor protection circuit breaker (MPCB) to protect the motor and wiring.

• Installation Environment: Install the contactor in a suitable, protected enclosure to achieve the necessary IP rating for the operating environment and ensure protection from dust, moisture, and accidental contact.

• Torque Settings: Tighten the screw terminals on the main power circuit to the manufacturer's specified torque to ensure low-resistance, reliable electrical connections and prevent overheating.

Product Applications

The Eaton DILM115 power contactor is primarily used for switching and controlling electrical loads in industrial and commercial environments.

• Motor Control: Starting, stopping, and reversing three-phase asynchronous motors in applications like pumps, compressors, fans, and conveyor systems.

• Resistive Heating Loads: Switching large electric heating elements, such as those found in industrial ovens, furnaces, or HVAC systems.

• Lighting Systems: Controlling large banks of industrial or stadium lighting.

• Power Supply Switching: Used as isolation or switching components in power distribution and energy management systems.

• Capacitor Banks: Switching power factor correction capacitor banks (requires specialized contactor version with damping resistors, often designated as DILMC).

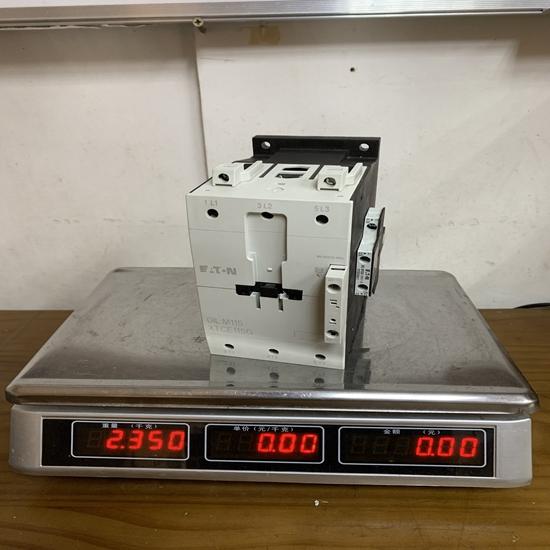

The structure and details of the product：
