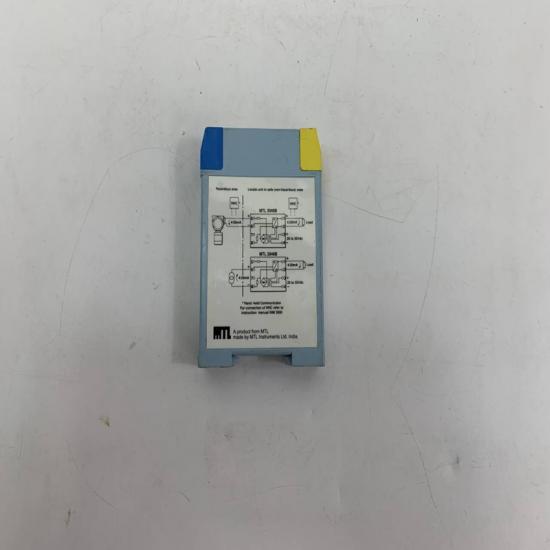

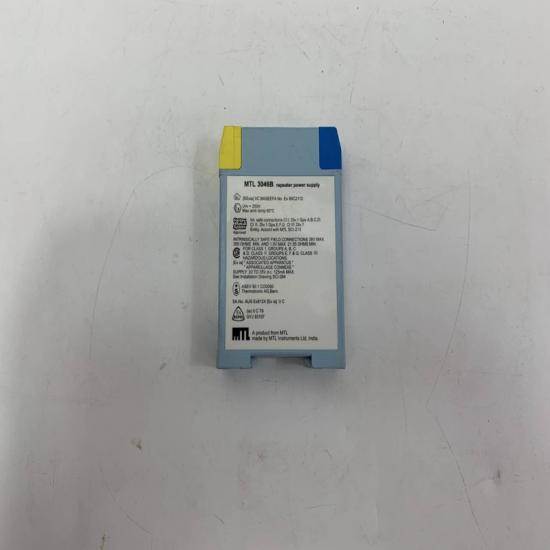

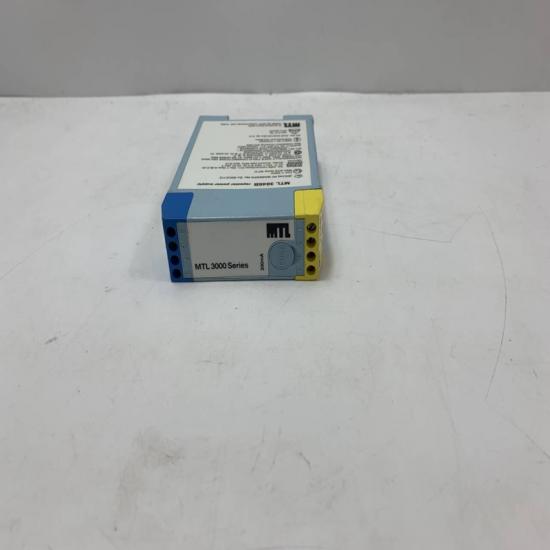

MTL3046B MTL

MTL MTL3046B REPEATER POWER SUPPLY

Product  Description：

Customer connections to the sensor are made through the Catalog

No. E51RN receptacle. Mechanical keying prevents other Eaton

wiring receptacles from being used with the three-wire DC switch

bodies. This will prevent the inadvertent installation of an AC switch

body from being connected to a receptacle wired from a DC source,

for example.

E51SNL and E51SPL Solid State Switches both have a normally

open and normally closed (N.O. & N.C.) complementary output configuration (refer to “Wiring Diagrams” below).

Both devices have factory-installed light emitting diodes which signify

switch closure for both N.O. and N.C. contacts. These devices are

also protected from damage should reverse polarity DC voltage be

applied to them

The resettable short circuit protection feature built into these

switches will turn the output off if the load is shorted or the output

is inadvertently applied across the DC power supply. When the protection feature operates, it causes the light emitting diode for that

output to turn OFF, as a fault indication. The output can be reset by

cycling power, or by moving a target in and out of the sensing range.

When power is first applied to the switch bodies, both N.O. and

N.C. outputs will be open and both LEDs will be off. At the end of

this “time before availability” period the outputs will be open or

closed, as determined by the signal for the sensor head.

File E51 Switches may be wired into common conduit with wiring

from other AC or DC control devices. Grounding by means of the

grounding terminal provided in the wiring receptacle is optional or

as required by the applicable electrical code.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
