2711P-RDT7C Allen-Bradley

2711P-RDT7C Allen-Bradley I / O module

Product  Description：

The 2711P-RDT7C is a 7-inch color display module featuring a high-resolution screen designed for harsh industrial environments. As a "color" designated unit (indicated by the 'C' in the suffix), it supports a wide spectrum of colors to represent complex process graphics, alarms, and data trends clearly. It utilizes Active Matrix Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) technology to ensure sharp contrast and wide viewing angles.

Product Parameters

• Display Type: Color Active Matrix TFT LCD.

• Display Size: 6.5-inch diagonal (standard for the 700 series).

• Resolution: 640 x 480 pixels (VGA).

• Input Type: Touchscreen (Resistive).

• Backlight: Field-replaceable CCFL (Cold Cathode Fluorescent Lamp).

• Luminance: Approximately 300 cd/m² (nits).

• Operating Temperature: $0^{\circ}C$ to $55^{\circ}C$ ($32^{\circ}F$ to $131^{\circ}F$).

• Storage Temperature: $-25^{\circ}C$ to $70^{\circ}C$ ($-13^{\circ}F$ to $158^{\circ}F$).

• Compatibility: Compatible with PanelView Plus 700 and PanelView Plus 6 700 logic modules.

Product Advantages

• Modular Cost Efficiency: Because the PanelView Plus system is modular, the 2711P-RDT7C allows for a targeted repair. If a screen is damaged by impact or wear, only the display module needs to be replaced, saving the cost of a full terminal.

• High Visual Quality: The TFT LCD provides superior brightness and a faster refresh rate compared to older passive-matrix screens, which is critical for monitoring high-speed machinery.

• Durable Touch Interface: The resistive touchscreen is designed to respond to gloved hands, which is a standard requirement in industrial settings.

• Ease of Installation: The module snaps onto the logic module and is secured with clips, making field replacement quick and reducing system downtime.

Important Considerations

• Logic Module Compatibility: This is only a display module. It does not contain the processor, memory, or communication ports. It must be paired with a compatible 700-series logic module to function.

• Backlight Lifespan: CCFL backlights have a finite lifespan. If the screen becomes dim or flickers, the backlight may need replacement or the entire module may be nearing its end of life.

• Environmental Sealing: To maintain the NEMA 4X or IP66 rating of the entire terminal, the module must be installed correctly with a functional sealing gasket between the display and the enclosure door.

• ESD Protection: When handling the 2711P-RDT7C, use proper electrostatic discharge (ESD) precautions, such as a grounded wrist strap, to avoid damaging the internal sensitive electronics.

• Cleaning: Use a soft, lint-free cloth and mild non-abrasive cleaners. Avoid harsh chemicals that can degrade the touchscreen overlay.

Product Applications

The 2711P-RDT7C is widely used in sectors requiring robust Human-Machine Interface (HMI) solutions.

• Food and Beverage: Used on the plant floor for controlling pasteurizers, conveyor systems, and packaging machines where wash-down protection is necessary.

• Automotive: Integrating with ControlLogix systems to monitor robotic assembly cells and paint booth parameters.

• Water and Wastewater: Providing a visual interface for pump station controls and chemical dosing monitoring.

• Oil and Gas: Serving as the local control interface for wellhead monitoring or refinery sub-systems within specialized enclosures.

• Pharmaceutical: Used in cleanroom environments to manage batch records and monitor environmental conditions during production.

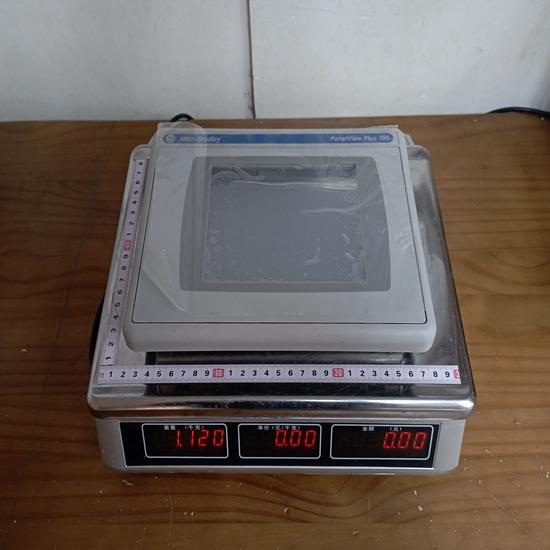

The structure and details of the product：
