2711P-T7C4D1 Allen-Bradley

2711P-T7C4D1 Allen-Bradley I / O module

Product  Description：

The 2711P-T7C4D1 belongs to the 700 series of PanelView Plus 6 terminals. This specific model features a color display and utilizes touch-screen technology for user input. It operates on the Windows CE operating system, providing a flexible environment for running FactoryTalk View Machine Edition (ME) applications. As a "D1" designated model, it is powered by Direct Current (DC), making it suitable for standard industrial control panels.

Product Specifications

• Display Type: Color Active Matrix Thin Film Transistor (TFT) with Liquid Crystal Display (LCD).

• Display Size: 6.5 inches (diagonal).

• Resolution: 640 x 480 VGA resolution with 18-bit color graphics.

• Input Type: Analog resistive touch screen for intuitive operator interaction.

• Input Voltage: 18 to 30 Volts DC (24 Volts DC nominal).

• Power Consumption: Maximum of 70 Watts (2.9 Amperes at 24 Volts DC).

• Internal Memory: 512 MB of Random Access Memory (RAM) and 512 MB of non-volatile storage for applications.

• Communication Ports: One Ethernet port (10/100 Mbps), one RS-232 serial port, and two USB ports for peripheral connections like mice, keyboards, or flash drives.

• Operating System: Windows CE 6.0, which supports standard features like VNC connectivity and file management.

• External Storage: Supports Secure Digital (SD) card slots for easy data logging and application transfers.

Product Advantages

• High Performance Architecture: The PanelView Plus 6 series features upgraded processors and increased memory compared to legacy models, ensuring faster screen transitions and smoother handling of complex graphic objects.

• Integration Excellence: It is designed for seamless integration within the Rockwell Automation Integrated Architecture, allowing for direct tag referencing from Logix controllers without the need for manual data mapping.

• Modular Design: The display module and logic module are separate components, which allows for easier maintenance or upgrades without replacing the entire unit.

• Visibility and Clarity: The high-resolution TFT display provides vibrant colors and wide viewing angles, ensuring that critical alarms and process data are clearly visible to operators in various lighting conditions.

• Flexible Communication: With both Ethernet and Serial capabilities, the terminal can connect to modern high-speed networks or legacy serial devices simultaneously.

Important Considerations

• Environmental Rating: The front of the terminal is NEMA 4X and IP66 rated when properly installed in an enclosure, meaning it is protected against dust and high-pressure water jets.

• Touch Screen Care: Avoid using sharp objects, such as pens or screwdrivers, to operate the touch screen, as this can damage the resistive overlay. Use fingers or a specialized stylus only.

• Voltage Regulation: Ensure the DC power supply is stable and within the 18 to 30 Volt range. Voltage spikes or drops outside this range can cause the unit to reboot or suffer hardware failure.

• Software Version: Always verify that the FactoryTalk View ME firmware installed on the terminal is compatible with the version of the software used to design the application on your PC.

• Cleaning: Clean the display with a soft, lint-free cloth and a non-abrasive cleaner. Do not spray liquids directly onto the screen.

Product Applications

The 2711P-T7C4D1 is a versatile HMI used across a wide spectrum of industrial sectors.

• Automotive Manufacturing: Monitoring assembly lines, robotic cell status, and torque tool data.

• Food and Beverage: Controlling pasteurization processes, bottling lines, and batching systems where hygiene and wash-down protection (IP66) are necessary.

• Water and Wastewater: Visualizing pump station levels, flow rates, and chemical dosing systems in remote or local control rooms.

• Oil and Gas: Displaying real-time pressure, temperature, and flow data from wellheads or processing facilities.

• Packaging: Managing high-speed wrapping, labeling, and palletizing machinery where quick operator intervention is required.

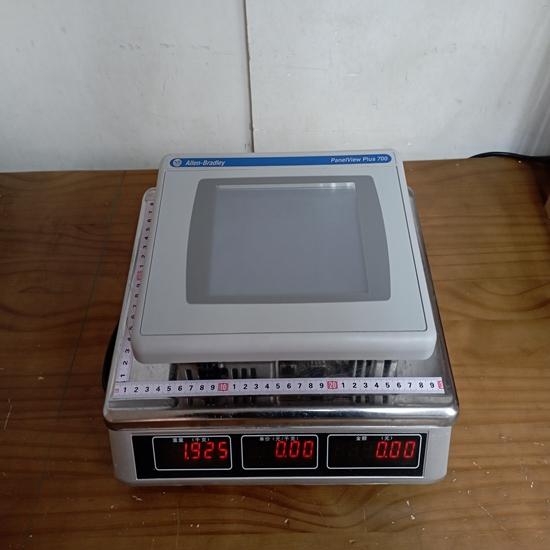

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
