6186M-19PT Allen-Bradley

6186M-19PT Allen-Bradley I / O module

Product  Description：

The Allen-Bradley 6186M-19PT is a high-performance industrial monitor from the Performance Monitor series by Rockwell Automation. This 19-inch display is specifically engineered to function as a ruggedized interface for industrial computers and servers, such as the Allen-Bradley 6181P integrated display computers or 6189R non-display industrial computers. It is designed to provide clear, reliable visual feedback in demanding environments where standard commercial monitors would fail.

Detailed Product Specifications

• Display Size and Type: 19-inch active-matrix Thin Film Transistor (TFT) LCD.

• Resolution: Native resolution of $1280 \times 1024$ pixels (SXGA format) with a 5:4 aspect ratio.

• Touchscreen Technology: Integrated analog resistive touchscreen, allowing for operator input even while wearing industrial gloves.

• Brightness and Contrast: Features a typical brightness level of $300 \text{ cd/m}^2$ (nits) and a contrast ratio of 800:1, ensuring high visibility in bright factory settings.

• Input Connections: Supports both analog (VGA) and digital (DVI) video inputs. It also features USB and Serial (RS-232) ports specifically for the touchscreen interface.

• Input Voltage: Universal power supply supporting $90 \text{ to } 264 \text{ VAC}$ at $47 \text{ to } 63 \text{ Hz}$, as well as a $24 \text{ VDC}$ option.

• Environmental Ratings: Rated NEMA 4, 4X, and 12, as well as IP66 for the front panel when properly mounted, providing protection against dust and sprayed water.

• Viewing Angle: Offers wide viewing angles, typically $160^\circ$ horizontally and vertically.

Core Product Advantages

• Industrial-Grade Durability: Unlike consumer monitors, the 6186M-19PT is built with heavy-duty materials to withstand constant vibration, mechanical shock, and temperature fluctuations common in industrial plants.

• Resistive Touchscreen Flexibility: The resistive touch technology is highly reliable for industrial use because it reacts to pressure, meaning it can be operated by a finger, a gloved hand, or a stylus.

• Mounting Versatility: The monitor is designed for panel mounting, allowing it to be integrated seamlessly into control cabinet doors or operator consoles. It also supports VESA mount standards for arm or wall attachment.

• Long Lifecycle Support: Part of the Rockwell Automation ecosystem, this monitor offers a much longer production and support lifecycle than commercial displays, ensuring that replacements and spare parts are available for years to come.

• Enhanced Visual Clarity: The high-contrast ratio and anti-glare coating minimize reflections from overhead factory lighting, reducing operator eye strain and improving safety.

Important Considerations and Precautions

• Panel Cutout Accuracy: When installing the monitor into a panel, the cutout dimensions must be exact to maintain the NEMA 4X or IP66 seal. Any gaps will compromise the protection against liquids and dust.

• Temperature Management: Ensure adequate airflow behind the monitor. While the front is protected, the rear electronics generate heat and require a controlled ambient temperature within the enclosure to prevent premature failure.

• Chemical Exposure: While the front bezel is rugged, certain harsh cleaning agents or industrial solvents can degrade the touchscreen surface over time. Always use recommended cleaning solutions.

• Grounding Requirements: Proper electrical grounding of the monitor and the enclosure is essential to prevent electrical noise from interfering with the video signal or the touchscreen accuracy.

• End of Life Awareness: Many models in the 6186M series have reached or are approaching "End of Life" status. It is advisable to check for current availability or consider the 6186M-19PT as a replacement part for existing systems rather than for new designs.

Common Product Applications

The Allen-Bradley 6186M-19PT is utilized across various sectors where a robust Human Machine Interface (HMI) is required.

• Automotive Manufacturing: Used on assembly lines to display real-time production metrics, work instructions, and quality control data to operators.

• Food and Beverage Processing: Because of its NEMA 4X (corrosion resistant) and IP66 rating, it is suitable for environments that require frequent wash-downs, provided the enclosure is properly rated.

• Oil and Gas Operations: Employed in control rooms or on-site skids where equipment must operate reliably under 24/7 conditions and withstand harsh outdoor or indoor environments.

• Pharmaceutical Production: Integrated into cleanroom environments where a smooth, easily sanitized front surface is required for monitoring batch processes.

• Material Handling and Logistics: Mounted on large-scale sorting systems or crane operator cabins to provide visual feedback for complex automated movements.

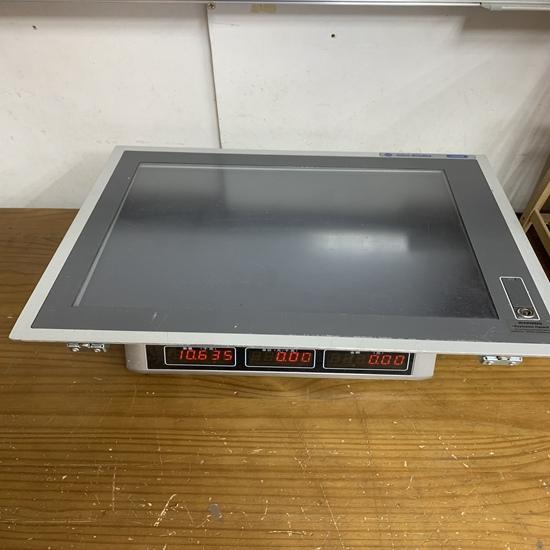

The structure and details of the product：
