X20CP1484 B&R

X20CP1484 B&R Input module

Product  Description：

The X20CP1484 serves as the central processing unit for the X20 system, which is renowned for its three-part modularity: the bus module, the electronics module, and the terminal block. This design allows for pre-wiring without the electronics and hot-swappable replacements. This specific model is based on an Intel Celeron-compatible processor, bridging the gap between basic PLC tasks and high-end industrial PC performance.

Product Parameters

• Processor: Intel Celeron compatible, clocking at $266 \text{ MHz}$ with an additional I/O processor for background data handling.

• Memory: Includes $32 \text{ MB}$ of DRAM and $1 \text{ MB}$ of SRAM (Note: The X20CP1484-1 variant features $64 \text{ MB}$ of SDRAM).

• Remnant Variables: Up to $32 \text{ kB}$ for data retention during power loss.

• Communication Interfaces:

  • 1x Ethernet 10/100 Base-T (IF2)

  • 1x ETHERNET Powerlink V1/V2 (IF3) for real-time communication

  • 2x USB 1.1 Type A (IF4, IF5)

  • 1x RS232 (IF1) via terminal block

  • 1x X2X Link Master (IF6) for connecting backplane I/O modules

• Application Memory: Removable CompactFlash card (must be ordered separately).

• Power Supply: $24 \text{ VDC}$ ($−15\% / +20\%$), featuring an integrated power supply for the CPU and the X2X Link backplane ($7 \text{ W}$ output).

• Fastest Cycle Time: $800 \text{ \mu s}$.

• Dimensions: Width $37.5 \text{ mm}$ (approx. $1.5 \text{ inches}$), making it extremely space-efficient on a DIN rail.

Product Advantages

• High Performance in Small Footprint: Despite its narrow width, it handles complex control algorithms and high-speed I/O processing that typically require much larger controllers.

• Real-Time Capabilities: With integrated POWERLINK, the module is capable of hard real-time synchronization, making it suitable for motion control and synchronized multi-axis applications.

• Maintenance Friendly: The three-part modularity means that if the CPU fails, the electronics can be swapped out without disturbing the field wiring or the backplane bus.

• Fanless Design: The passive cooling system eliminates moving parts, significantly increasing the Mean Time Between Failures (MTBF) and allowing for operation in dusty environments.

• Scalable Integration: Seamlessly connects with the entire X20 I/O family, allowing users to add digital, analog, or specialized modules (like safety or counters) directly to the right of the CPU.

Important Considerations (Precautions)

• Memory Card Required: The CPU does not include internal application storage; a B&R-qualified CompactFlash card is required to store the user program and boot the system.

• Battery Maintenance: The module includes a buffer battery (typically CR2477N) for the real-time clock and SRAM. This should be checked periodically to prevent data loss during long power-down periods.

• Mounting Orientation: For optimal cooling in fanless mode, horizontal installation on a DIN rail is recommended. Vertical installation may require temperature derating.

• Power Budgeting: The integrated X2X Link power supply provides $7 \text{ W}$. If a large number of I/O modules are connected, an additional X20PS power supply module may be necessary on the bus.

• IP Rating: Rated at IP20, meaning it must be installed in a control cabinet or enclosure to protect against moisture and fine conductive dust.

Product Applications

The X20CP1484 is a "workhorse" controller used across various industries where space is limited but performance cannot be compromised.

• Machine Tooling: Controlling CNC-like movements and auxiliary systems in metalworking or woodworking machinery.

• Packaging Machinery: Managing high-speed pick-and-place, filling, and wrapping cycles that require millisecond-level precision.

• Renewable Energy: Used in wind turbine pitch control systems and solar tracking arrays for its reliability and wide temperature range.

• Process Automation: Acting as a distributed controller for pumping stations, chemical dosing, or environmental monitoring systems.

• Automotive Production: Managing assembly line segments where the controller must interface with both factory-level Ethernet and field-level real-time networks.

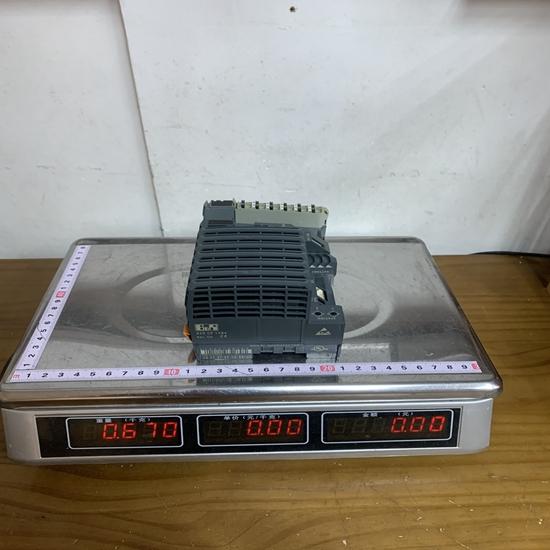

The structure and details of the product：
