VRDM368/50LNBOB SCHNEIDER

VRDM368/50LNBOB SCHNEIDER Power module

Product  Description：

The Schneider Electric VRDM368/50LNBOB is a specific model of a Brushless DC Servo Motor designed for high-performance motion control applications. It is a key component of a complete servo system, typically paired with a compatible servo drive from Schneider Electric.

Product Specifications

• Product Type: Brushless DC Servo Motor

• Series: VRDM (likely part of the legacy Berger Lahr series, which is now integrated into Schneider Electric)

• Frame Size/Flange: Typically an industry standard square flange (the exact dimensions are defined by the number 368 in the part number).

• Rated Torque: The motor is designed to deliver a specific continuous torque, often specified in Newton meters (Nm).

• Rated Speed: It has a specific continuous operating speed, typically specified in revolutions per minute (RPM).

• Peak Torque: The maximum torque the motor can briefly produce during acceleration/deceleration.

• Nominal Voltage: The typical DC bus voltage required for the motor/drive combination (often related to the 50 in the part number, potentially indicating a voltage class or speed).

• Feedback Device: Features a built-in feedback device, usually an Absolute or Incremental Encoder, to provide precise position and speed information back to the servo drive. The NBOB part of the designation typically indicates the specific type and manufacturer of the feedback system and motor winding details.

• Connections: Usually features a power connector and a separate feedback/signal connector.

• Protection Class: Typically IP65 or similar, indicating protection against dust and water jets, suitable for industrial environments.

Product Advantages

• High Dynamic Performance: Brushless servo motors offer excellent dynamic response, providing rapid acceleration and deceleration capabilities essential for demanding automation tasks.

• Precise Control: When paired with a servo drive and its high-resolution encoder feedback, the VRDM368/50LNBOB enables highly accurate position, speed, and torque control.

• Maintenance-Free Operation: The brushless design eliminates the need for brush replacement, leading to long life, high reliability, and minimal maintenance compared to brushed motors.

• Energy Efficiency: Brushless motors generally operate with higher efficiency compared to other motor types, leading to reduced energy consumption and heat generation.

• Robust Construction: Designed for continuous industrial use, featuring durable construction to withstand demanding operational environments.

Important Considerations (Precautions)

• Compatibility: This motor must be used with a compatible servo drive from Schneider Electric (e.g., Lexium series) that is correctly sized for the motor's current and voltage requirements. Mismatching the motor and drive can lead to poor performance or damage.

• Tuning: Proper servo loop tuning is critical to achieve the motor's rated performance. Incorrect tuning can result in oscillation, vibration, or poor positioning accuracy.

• Wiring: Follow the manufacturer's specific instructions for power and feedback wiring. Shielded cables should be used to minimize electromagnetic interference (EMI) which can affect feedback signals.

• Mounting and Alignment: Ensure the motor is mounted securely and correctly aligned to the load to prevent excessive bearing wear and vibration. Use flexible couplings to compensate for minor misalignment.

• Heat Dissipation: Ensure adequate air circulation around the motor, especially when operating at high duty cycles or near the peak torque limit, to prevent overheating.

Product Applications

The VRDM368/50LNBOB servo motor is ideally suited for applications requiring high precision, speed, and repeatability in industrial automation.

• CNC Machinery: Used for controlling the axis movements in milling machines, lathes, and plasma cutters.

• Robotics: Providing precise joint control for industrial and collaborative robots.

• Packaging Machinery: Used in high-speed form-fill-seal machines, labelers, and cartoners where rapid indexing and accurate positioning are essential.

• Printing Presses: Controlling web tension and registration systems requiring extremely accurate synchronization.

• Material Handling: Driving indexing tables, linear actuators, and high-speed pick-and-place systems.

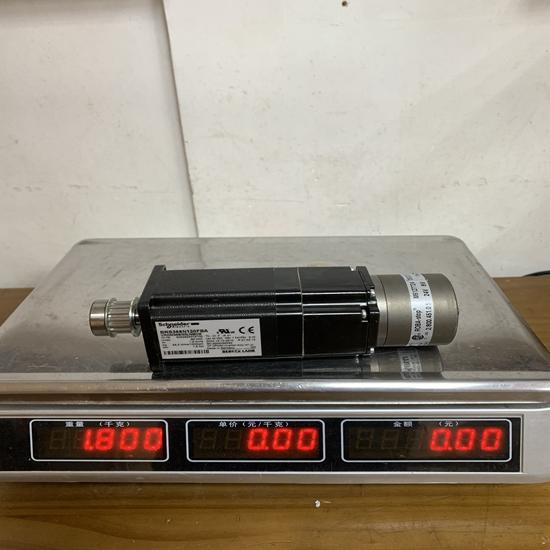

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：

SCHNEIDER LXM16DU10M2X
