140XBP01000 SCHNEIDER

140XBP01000 SCHNEIDER Power module

Product  Description：

The Schneider Electric 140XBP01000 is a crucial component within the Modicon Quantum automation platform. It is a backplane module designed to physically house and electrically interconnect the various modules (CPU, I/O, communication) that form the control system.

Product Specifications

• Product Type: Backplane

• Range of Product: Modicon Quantum automation platform

• Number of Slots: 10 slots. This determines the maximum number of modules (CPU and I/O) that can be connected to this specific backplane.

• Bus Type: Internal I/O bus (data and power distribution).

• Mounting: Can be mounted vertically or horizontally, typically within an industrial enclosure.

• Electrical Connection: Provides connections for the system power supply (e.g., 140CPS11420), which supplies power to all modules installed on the backplane.

• Maximum Current Rating (Bus): Designed to handle the combined current draw of up to 10 installed Quantum modules.

• Net Weight: The weight is relatively light, designed to be mounted inside a cabinet.

• Compatibility: Exclusively compatible with Modicon Quantum series CPUs (e.g., 140CPUxxxx), I/O modules (e.g., 140DDIxxxx), and communication modules (e.g., 140NOExxxx).

Product Advantages

• Scalability and Expansion: The 10-slot design allows for significant expansion of the control system, accommodating a large number of I/O points or communication interfaces in a single rack.

• High-Speed Communication: The backplane provides a high-speed communication bus for rapid data exchange between the CPU and all installed I/O and communication modules, ensuring real-time control performance.

• Robust Industrial Design: Built to meet industrial standards, the backplane offers mechanical rigidity and electrical integrity, necessary for reliable operation in harsh factory environments.

• Power Distribution: Efficiently distributes the required DC power from the power supply module to every other module plugged into the slots.

• Easy Module Installation: Features a simple, plug-and-play mechanism for securely seating and locking the electronic modules, simplifying system assembly and maintenance.

Important Considerations (Precautions)

• Slot Allocation: Always adhere to the Modicon Quantum architecture rules regarding module placement, especially the CPU and power supply, which must typically be installed in specific, designated slots (often the leftmost slots).

• Power Requirements: Ensure the selected Power Supply Module (e.g., 140CPSxxxx) has sufficient current capacity to meet the total power consumption of the CPU and all 10 installed I/O and communication modules. Overloading the power supply will lead to unreliable system operation or failure.

• Grounding: Proper grounding of the backplane and enclosure is essential for noise suppression and safety. Follow Schneider Electric's installation guidelines strictly.

• Environmental Conditions: Install the backplane within an industrial enclosure that protects it from excessive dust, moisture, and temperature fluctuations to maintain reliable operation.

• Compatibility: The 140XBP01000 is for the Modicon Quantum family only. It is not compatible with the newer Modicon M580 or Modicon X80 platforms.

Product Applications

The 140XBP01000 10-slot backplane is the foundational hardware structure for building a centralized Modicon Quantum Programmable Automation Controller (PAC) system.

• Large-Scale Control Systems: Used in applications that require a high I/O count or a large number of specialized modules (e.g., analog, high-speed counting, network interfaces), such as:

  • Automotive Assembly Lines

  • Large Process Control Systems (Oil & Gas, Water/Wastewater)

  • Power Generation Facilities

• Distributed I/O Node: While typically used for centralized control, it can also function as a dense, local I/O rack managed by a communication module (like an Ethernet or Fieldbus module) in a larger, distributed control architecture.

• Critical Infrastructure: Employed in environments where high reliability and redundancy are required, leveraging the Quantum platform's capabilities for fault tolerance.

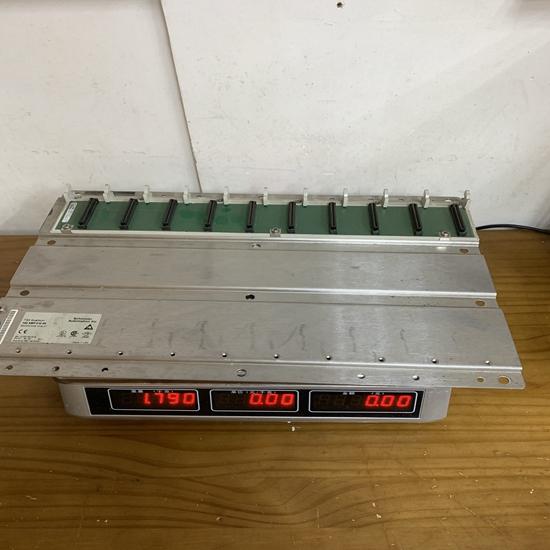

The structure and details of the product：
