TB511-ARCNET ABB Bailey

TB511-ARCNET ABB Bailey Analog Output Modules

Product  Description：

• • • • • • The TB511-ARCNET is an expansion module that mounts onto the terminal base of an AC500 CPU. Its primary purpose is to enable the CPU to act as a node within an ARCNET network, allowing it to exchange data with other PLCs, PCs, or peripheral devices at high speeds. Unlike standard Ethernet, ARCNET provides a highly predictable data transmission environment, which is critical for time-sensitive control applications. The module typically features a 9-pin D-sub connector for the network interface and internal logic that offloads the communication processing from the main CPU, ensuring that control cycle times remain consistent even during heavy network traffic.

            Product Parameters

            • Product Series: AC500 Modular PLC System

            • Protocol Type: ARCNET (Token-Passing Bus)

            • Transmission Rate: Typically supports up to $2.5 \text{ Mbit/s}$

            • Interface Type: 9-pin D-sub female connector

            • Connection Type: Supports Coaxial or Twisted Pair cabling (depending on the specific media converter or bus setup used)

            • Current Consumption: Powered via the internal bus of the terminal base, typically around $50 \text{ mA}$ to $100 \text{ mA}$ at $24 \text{ VDC}$

            • Max Nodes: Supports up to 255 nodes per network segment

            • Dimensions: Standard S500 module width (approx. $34 \text{ mm}$)

            • Diagnostic Indicators: LED lights for "Power," "Status," and "Activity" to facilitate rapid troubleshooting

            Product Advantages

            One of the foremost advantages of the TB511-ARCNET is its Determinism. Because it uses a token-passing protocol, there are no data collisions, ensuring that every node has a guaranteed time slot to transmit its data. This makes it superior to standard Ethernet in older or specific synchronized control systems. The Seamless Integration with the AC500 platform allows for easy configuration within the Automation Builder software environment.

            The module also offers High Reliability in electrically noisy environments; ARCNET is historically known for its robustness against electromagnetic interference. Furthermore, its Offloading Capability ensures that the communication tasks do not slow down the PLC's logic execution, maintaining high-speed performance for the overall automation process.

            Important Considerations and Precautions

            When installing the TB511-ARCNET, it is critical to observe Proper Termination. As a bus-based system, the first and last nodes of the ARCNET segment must be properly terminated with the correct resistance (usually $93 \text{ $\Omega$}$ for coaxial or $120 \text{ $\Omega$}$ for twisted pair) to prevent signal reflections that cause data corruption. Users must also be careful with Node Addressing; each module must have a unique ID set via hardware switches or software; duplicate IDs will prevent the network from initializing correctly.

            Since this module is sensitive to Static Electricity, always use an ESD wrist strap when handling the unit during installation. Additionally, verify the Firmware Compatibility between the TB511 module and the AC500 CPU to ensure all communication blocks in the PLC program function correctly. Finally, avoid running the ARCNET communication cables parallel to high-voltage power lines to maintain the highest signal integrity.

            Product Applications

            The TB511-ARCNET is primarily used in complex, large-scale automation projects where multiple controllers must share data rapidly and reliably.

            • Power Plant Automation: Synchronizing data between multiple turbine controllers and the central command station where timing is critical.

            • Tunnel and Infrastructure Control: Connecting distributed PLC stations over long distances for ventilation and lighting control.

            • Marine and Offshore Systems: Used in shipboard automation for engine monitoring and cargo handling where robust communication is required.

            • Printing and Paper Industry: Coordinating multiple high-speed rollers and cutters that require precise synchronization between different sections of the machine.

            • Legacy System Migration: Interfacing modern AC500 PLCs with existing ARCNET-based industrial networks without requiring a complete overhaul of the communication infrastructure.

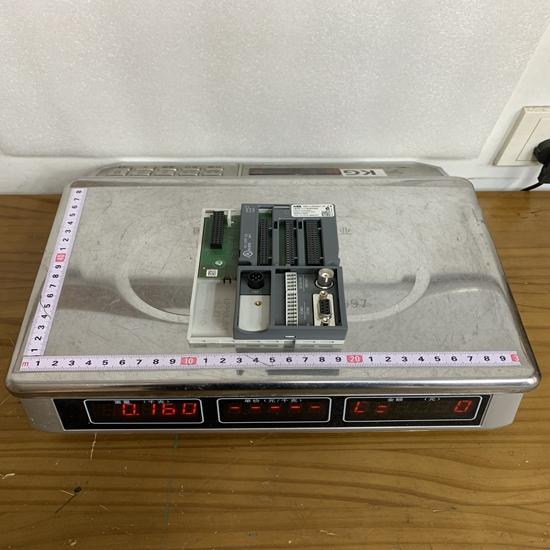

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
