1SVR450081R0000 ABB Bailey

1SVR450081R0000 ABB Bailey Analog Output Modules

Product  Description：

• • • • • • The 1SVR450081R0000 serves as a universal interface between field sensors and control systems like PLCs or DCS. It is capable of receiving a wide variety of input signals—including current, voltage, and resistance—and converting them into standard output signals. This unit features a 3-way electrical isolation between the input, output, and power supply circuits, which is essential for protecting sensitive control equipment from voltage spikes and eliminating ground loop interference. The device is housed in a compact $22.5 \text{ mm}$ wide enclosure designed for DIN rail mounting, featuring pluggable terminal blocks that simplify wiring and maintenance.

            Product Parameters

            • Type Designation: CC-U/STD

            • Rated Control Supply Voltage: $24-48 \text{ VDC}$ or $24 \text{ VAC}$ ($50/60 \text{ Hz}$)

            • Input Signals: Configurable for $0-10 \text{ V}$, $0-20 \text{ mA}$, $4-20 \text{ mA}$, and several other non-standard voltage/current ranges.

            • Output Signals: Configurable for $0-10 \text{ V}$, $0-20 \text{ mA}$, $4-20 \text{ mA}$, and $\pm 10 \text{ V}$.

            • Isolation: 3-way galvanic isolation up to $2.5 \text{ kV}$.

            • Response Time: Typically $< 30 \text{ ms}$, ensuring rapid data updates for time-sensitive processes.

            • Accuracy: Error margin is typically less than $0.1\%$ of the full-scale value.

            • Mounting: Standard $35 \text{ mm}$ DIN rail (DIN EN 60715).

            • Terminal Type: Pluggable screw terminals for easy replacement without rewiring.

            • Indicators: Green LED for supply voltage status.

            Product Advantages

            A major advantage of the 1SVR450081R0000 is its Universal Versatility. Because it supports a vast array of input and output combinations, a single unit can be kept in stock as a universal spare part for many different applications, reducing inventory costs. The 3-Way Galvanic Isolation provides superior protection for the controller, preventing damaged sensors or electrical noise from propagating through the system.

            The Pluggable Connection Terminals are a significant mechanical benefit, allowing for "cold" replacement of the module during maintenance without the risk of miswiring. Furthermore, the Front-Face Configuration via DIP switches allows technicians to set up the device in the field without needing specialized software or a computer, which is highly efficient for quick commissioning.

            Important Considerations and Precautions

            When installing the 1SVR450081R0000, it is vital to ensure that the DIP Switch Settings are correctly configured before applying power; incorrect settings can lead to inaccurate readings or unexpected output behavior that could trigger safety alarms in the PLC. Thermal Management is also important; while the device is efficient, multiple units mounted side-by-side in a high-temperature cabinet should have adequate ventilation to prevent heat buildup.

            Observe the Maximum Load Impedance for current outputs (typically $500 \text{ \Omega}$ at $20 \text{ mA}$) to ensure the output signal remains linear and accurate. Additionally, always use Shielded Twisted Pair Cables for long-distance signal runs to minimize the impact of electromagnetic interference (EMI), and ensure the shields are grounded according to standard industrial practices. Finally, verify the Supply Voltage Range to avoid damaging the unit with overvoltage.

            Product Applications

            The ABB 1SVR450081R0000 is used extensively in industrial automation for signal conditioning and isolation.

            • Water Treatment Plants: Converting signals from flow meters or level sensors to match the input requirements of a central control station.

            • Factory Automation: Isolating analog signals from motor drives (VFDs) to prevent electrical noise from interfering with the PLC's analog input modules.

            • Power Plants: Monitoring temperature and pressure transducers in environments where high galvanic isolation is required to protect the control infrastructure.

            • HVAC Systems: Scaling and converting signals from air quality or humidity sensors for building management systems.

            • Chemical Processing: Providing precise signal transmission in large-scale facilities where long cable runs might otherwise lead to signal loss or ground loop issues.

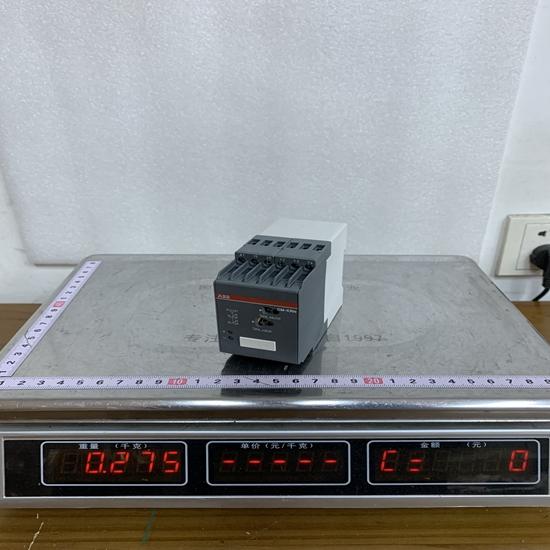

The structure and details of the product：
