SB401 Yokogawa

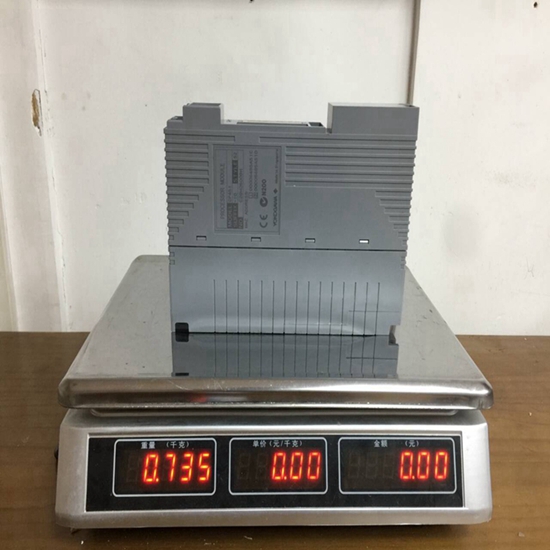

SB401 Yokogawa I / O module

Product  Description：

Yokogawa I/O (Input/Output) modules are highly reliable, industrial-grade components designed primarily for use within the CENTUM Distributed Control System (DCS) and the ProSafe-RS Safety Instrumented System. These modules serve as the essential physical interface between the central control processors and the field-side instruments. They accurately capture discrete and continuous signals from process sensors and transmit precise control commands to actuators, valves, and motor starters across a processing plant.

Product Parameters

The technical profile of Yokogawa I/O modules reflects their high-density architecture and stringent industrial ratings:

• Channel Density: Offered in various configurations including low-density 8-channel and 16-channel modules, up to high-density 32-channel and 64-channel variants to optimize cabinet layout.

• Signal Compatibility: Supports a comprehensive array of signal types including 24V DC discrete inputs/outputs, 4-20mA analog signals, HART communication-enabled loops, and specialized thermocouple or RTD temperature inputs.

• Isolation Architecture: Features robust galvanic isolation between the field circuits and the internal system bus, typically rated at 1500V AC or higher to safeguard the control network.

• Resolution and Accuracy: Analog modules provide high-precision 16-bit analog-to-digital (A/D) and digital-to-analog (D/A) conversion, ensuring minimal signal drift over time.

• Response Time: Digital input modules feature configurable input filter times, while specialized high-speed modules offer input response times under 1 millisecond.

• Power Consumption: Low power draw engineering that minimizes internal heat generation on the rack, typically drawing power directly from the system baseplate.

Product Advantages

Yokogawa I/O modules are recognized globally for their superior reliability and advanced diagnostic features:

• Dual-Redundant Configuration: Supports full hardware redundancy where two identical modules can be installed in a paired slot configuration, ensuring bumpless transfer and continuous operation if one module fails.

• Integrated HART Communication: Many analog modules feature built-in HART modems, allowing operators to pass digital device diagnostics, calibration data, and secondary variables from the field instrument directly to the DCS without extra wiring.

• Online Hot-Swapping: Modules are designed for safe removal and replacement while the system is live and running, preventing process interruptions during maintenance cycles.

• Advanced Line Diagnostics: Equipped with intelligent sensors that detect field wiring abnormalities, such as open circuits (wire-break) or short circuits, long before they cause a major process trip.

• Environmental Protection: Built with G3-class conformal coating as standard for many series, providing exceptional resistance to harsh, corrosive chemical atmospheres containing sulfur or moisture.

Product Applications

These modules are widely deployed in heavy process industries that require continuous, fault-tolerant operations:

• Oil and Gas Refining: Interfacing with critical temperature, pressure, and level transmitters across distillation columns and storage tank farms.

• Petrochemical Production: Managing complex sequence logic and continuous control loops in hazardous environments where explosive gases may be present.

• Power Generation Plants: Monitoring turbine parameters, steam pressures, and generator statuses while providing reliable trip signaling for safety systems.

• LNG Terminals and Marine Transport: Handling the precise temperature monitoring required for cryogenic liquefied natural gas processing and shipping.

• Pharmaceutical and Food Processing: Managing batch production systems where high-precision analog data is critical to maintaining product quality and regulatory compliance.

Important Precautions

To preserve the longevity and operational accuracy of Yokogawa I/O modules, the following deployment guidelines must be observed:

• Baseplate Matching: Ensure that the I/O module is perfectly aligned and locked into its designated slot on the node unit or baseplate. Forcing a module into an incompatible slot can damage the gold-plated multi-pin connectors.

• Shielding and Grounding: Shielded twisted-pair cabling must be used for all analog and digital communication loops. The cable shields must be grounded at a single, dedicated instrument ground point to eliminate the risk of ground loops.

• Voltage Verification: Double-check the field loop voltage before connecting the field wiring terminal block to the module. Exposing a low-voltage DC input channel to an unexpected AC voltage will result in permanent hardware damage.

• Unused Channel Configuration: For analog input modules, any channel that is not physically wired to a sensor should be disabled in the system builder software to prevent the accumulation of ghost data or noise alarms.

• Enclosure Maintenance: Keep the control cabinet doors closed and maintain the cooling fans. Allowing conductive dust or moisture to settle on the module components can lead to localized short circuits and premature failure.
