CP451-10 S2 Yokogawa

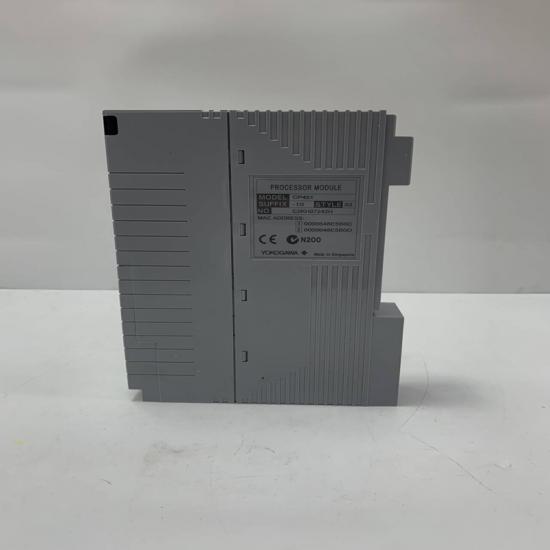

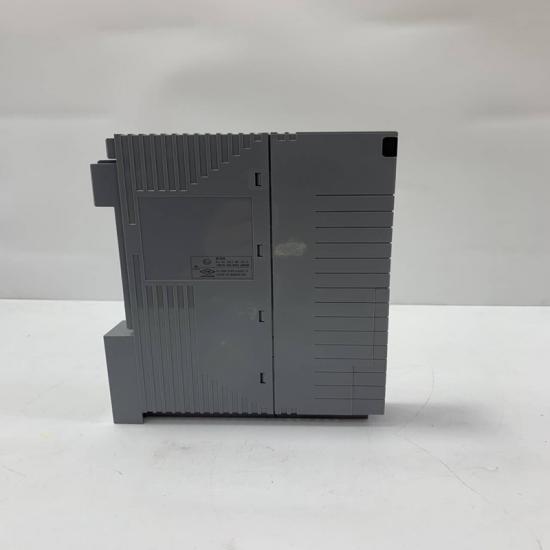

YOKOGAWA CP451-10 S2 PROCESSOR MODULE

Product  Description：

YOKOGAWA  ALP111 PROFIBUS-DP Communication Module

This document describes about Model ALP111 PROFIBUS-DP Communication Module (for FIO) which performs as the PROFIBUS-DP master device to communicate and exchange data with PROFIBUS-DP slave devices. This , and£, AFV10£, AFV40£PROFIBUS-DP communication module can be mounted on field control units (AFV30 ).£), and ER bus node unit (ANR10£), optical ESB bus node unit (ANB11£), ESB bus node unit (ANB10£AFF50 ALP111 module has been certified by PROFIBUS Nutzerorganisation e.V. as complying with the PROFIBUS DP-V0.

Hardware specifications for ALP111 PROFIBUS-DP communication module are as shown below. Table PROFIBUS-DP Communication Module Hardware Specifications Item Specifications Model ALP111 Interface PROFIBUS-DP Connection method EIA-RS-485-compliant Signal isolation Isolated Transmission speed 9600 bps to 12 Mbps Transmission route Shielded Maximum transmission distance 1.2 km per segment (at the communication speed of 9600 bps). No. of communication port One port (*1) Communication port D-sub 9 pin (female) (*2) Maintenance port D-sub 9 pin (male), Interface: RS-232C Maximum current consumption 0.7 A Weight 0.3 kg Note: The cables and terminators must comply with PROFIBUS-DP standards (PROFIBUS Specifications IEC 61158-2/EN 50170 volume 2). *1: There is another port for maintenance. *2: PROFIBUS-DP connector must comply with the PROFIBUS-Specificaiton-Normative-parts-2.

Engineering:

For PROFIBUS-DP devices engineering, SyCon-PB/YOKO, the PROFIBUS-DP configurator, is provided by Hilscher GmbH. Configuration definitions are loaded into CENTUM VP, from which they are then downloaded to each device via control network (Vnet/IP or V net), FCS, and ALP111 modules. ALP111 modules are also defined in SyCon-PB/ YOKO as PROFIBUS masters.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
