Phoenix SACB-8/16-10,0PUR .SCOP

Phoenix SACB-8/16-10,0PUR .SCOP Programmable controller

Product  Description：

The SACB-8/16-10,0PUR SCOP serves as a centralized distribution hub for field signals. Instead of running multiple individual cables from sensors or actuators back to a control cabinet, these devices are plugged directly into the local distributor box. The integrated master cable then carries all signals back to the PLC or controller in a single, heavy-duty PUR (Polyurethane) jacketed cable. The SPEEDCON technology allows for a secure "plug and turn" connection that is significantly faster than traditional screw-threaded M12 connectors.

Product Parameters

The technical specifications reflect its readiness for harsh industrial environments:

• Number of Slots: 8 M12 slots

• Number of Positions per Slot: 5 positions, allowing for 2 signals per socket

• Total Number of Signals: 16 signals

• Connection Method: M12 SPEEDCON plastic sockets

• Master Cable Length: 10 meters

• Master Cable Type: PUR halogen-free, black

• Nominal Voltage: $120 \text{ V AC/DC}$

• Current Carrying Capacity per I/O Signal: $2 \text{ A}$

• Total Current (Maximum): $12 \text{ A}$

• Degree of Protection: IP65, IP67, and IP68

• Ambient Temperature Range: $-30\text{°C}$ to $80\text{°C}$ (for the box) and $-40\text{°C}$ to $90\text{°C}$ (for fixed cable routing)

• Local Diagnostics: Integrated green LED for operating voltage and yellow LEDs for signal status

Product Advantages

One of the primary advantages of this module is the dramatic reduction in installation time due to the SPEEDCON rapid-locking system, which requires only a half-turn to achieve a fully sealed connection. The double-occupancy design (2 signals per M12 port) allows for a high density of connections in a compact footprint, making it ideal for space-constrained machinery. The PUR master cable provides excellent resistance to oils, chemicals, and mechanical wear, ensuring a long service life even in environments where the cable is subject to frequent movement or exposure to coolants. Furthermore, the built-in LED diagnostics allow maintenance personnel to quickly verify power status and individual signal activity without using external testing tools.

Important Considerations

Users must ensure that the total current across all slots does not exceed the $12 \text{ A}$ limit to prevent overheating of the master cable. When using the double-occupancy feature, specialized Y-splitters or 5-pin M12 cables must be used to access the second signal on each port. It is also critical to ensure that unused slots are covered with M12 protective caps to maintain the IP67/IP68 rating, as exposure to moisture or dust can lead to short circuits. During installation, the bending radius of the 10-meter PUR cable should be respected, particularly in dynamic applications where the cable may be placed in a drag chain.

Product Applications

This distributor box is extensively used in modular machine building and automated assembly lines. Common applications include:

• Robotic Cells: Managing signals from multiple proximity sensors and grippers on a robot arm.

• Packaging Machinery: Centralizing inputs from photo-eyes and limit switches across long conveyor sections.

• Automotive Production: Distributing power and signals to clamps and presence sensors in welding or assembly stations.

• Machine Tools: Providing a robust connection point for sensors exposed to cutting fluids and metal shavings.

• Material Handling: Simplifying the wiring of sorting systems where sensors are distributed over large areas.

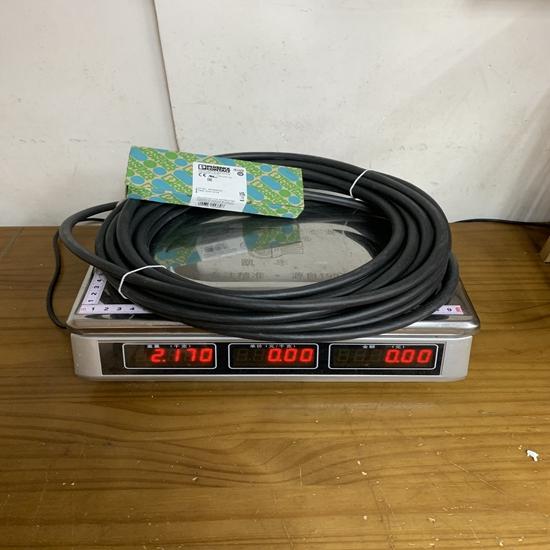

The structure and details of the product：
