Phoenix 2736628

Phoenix 2736628 Programmable controller

Product  Description：

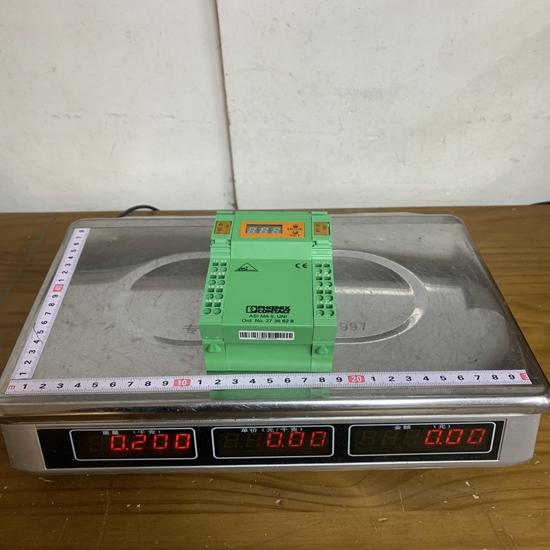

The ASI MA IL UNI is a modular gateway that integrates directly into an Inline station. It acts as the brain for an AS-i segment, managing the data exchange between up to 62 connected AS-i slaves and the central controller. The module features an integrated 3-character 7-segment display on the front panel, which provides real-time status updates and diagnostic codes, making it easier for technicians to monitor system health without external tools. The design follows the standard Inline form factor, characterized by its green housing and push-in connection technology, which simplifies the physical installation process.

Product Parameters

• Item Number: 2736628

• Type Designation: ASI MA IL UNI

• AS-i Specification: Version 2.1 (Extended Specification)

• Number of AS-i Slaves: Up to 62 slaves

• Local Bus Interface: Inline data jumper (500 kbps transmission speed)

• AS-Interface Transmission Speed: 167 kbps

• Supply Voltage: 7.5 V DC (via the Inline local bus)

• Typical Current Consumption: 200 mA from the AS-i network; approximately 160 mA from the local bus

• Address Area: Maximum of 30 bytes for input and 30 bytes for output

• Degree of Protection: IP20

• Ambient Operating Temperature: -25 °C to 55 °C

• Dimensions: Width 73.2 mm, Height 119.8 mm, Depth 71.5 mm

• Weight: Approximately 210 g

Product Advantages

• High Integration: As part of the Inline family, it snaps directly into the station, receiving power and local bus connectivity automatically through the backplane jumpers, reducing wiring complexity.

• Versatile Diagnostics: The 3-digit onboard display and multiple LED indicators provide immediate feedback on configuration errors, power status, and communication health, significantly reducing downtime during troubleshooting.

• Flexible Configuration: Users can configure the AS-i network directly on the device using integrated "Mode" and "Set" pushbuttons or through software parameterization, offering flexibility for both field and office setups.

• Maintenance Friendly: The use of pluggable wiring and Zack marker strip labeling ensures that maintenance or module replacement can be performed quickly and with minimal risk of wiring errors.

Important Considerations

• Obsolete Status: Please note that this specific part number (2736628) is listed as an obsolete or discontinued product in many regions. For new projects, it is recommended to consult the manufacturer for the current replacement model within the Axioline or updated Inline ranges.

• Environmental Limits: The IP20 rating means the device is not protected against water and must be installed in a closed control cabinet or housing to prevent damage from moisture and dust.

• Power Requirements: Ensure the AS-i power supply is properly sized, as the gateway draws a typical 200 mA from the AS-i network to maintain its master functions.

• Isolation: The module provides electrical isolation between the AS-i network and the INTERBUS local bus (tested at 500 V AC, 50 Hz for 1 minute), which is critical for preventing ground loops and protecting the main controller.

Product Applications

The PHOENIX 2736628 is primarily used in distributed automation systems where simple field devices like sensors and actuators need to be networked efficiently.

• Conveyor Systems: Managing a large number of digital inputs and outputs across long distances using the simplified two-wire AS-i cable.

• Packaging Machinery: Coordinating the timing and signals of multiple sensors and small drives within a compact machine footprint.

• Building Automation: Integrating environmental sensors and simple control elements into a larger PLC-based management system.

• Process Industry: Serving as a gateway to bring field-level data from AS-i slaves into a PROFIBUS or PROFINET network for high-level monitoring and control.
