MX220 BACHMANN

MX220 BACHMANN Analog Output Modules

Product  Description：

Bachmann electronic provides high-precision Analog Output Modules designed for their M1 automation system. These modules are responsible for converting digital values from the controller's processor into standardized analog voltage or current signals. These signals are typically used to control proportional valves, frequency converters, or heating controllers, serving as the "muscles" of the control system that allow for smooth, continuous adjustments rather than simple on/off switching.

Product Parameters

The technical profile of Bachmann Analog Output Modules is defined by high resolution and flexible signal ranges:

• Output Signal Ranges: Configurable for standard voltage ranges such as ±10V, 0 to 10V, and current ranges such as 0 to 20mA or 4 to 20mA.

• Digital-to-Analog Resolution: High-precision conversion typically at 16-bit resolution, ensuring extremely fine increments in the output signal.

• Channel Density: Modules are available in various configurations, commonly offering 2, 4, or 8 independent output channels.

• Settling Time: Fast response capabilities with settling times often below 100 microseconds, allowing for high-dynamic control loops.

• Load Impedance: Support for a wide range of loads, typically up to 500 or 600 Ohms for current outputs and a minimum of 1k Ohm for voltage outputs.

• Accuracy and Linearity: Exceptional performance with low temperature drift and total error rates usually under 0.1 percent of the full scale.

Product Advantages

Bachmann Analog Output Modules are engineered for long-term stability and integration within the M1 ecosystem:

• Fully Integrated Diagnostics: The modules can detect and report wiring errors such as open circuits (for current loops) or short circuits (for voltage outputs) back to the CPU in real-time.

• Galvanic Isolation: Robust electrical isolation between the internal system bus and the output circuits protects the controller from field-side electrical interference and potential damage.

• Software Configuration: All parameters, including signal type and range, are set via software (SolutionCenter), eliminating the need for manual potentiometers or jumpers.

• Precise Synchronicity: When used within the M1 system, these modules support highly synchronized output updates, which is essential for multi-axis motion control or complex wind turbine pitch adjustments.

• Durable Industrial Build: Designed to withstand the extreme vibrations and temperature fluctuations common in energy and maritime applications.

Product Applications

These modules are used in industries where precise, variable control is mandatory:

• Wind Energy: Controlling the pitch of turbine blades or the torque of the generator by providing precise setpoint signals to hydraulic or electric actuators.

• Maritime Engineering: Governing engine speeds and stabilizing systems on ships where reliability under vibration is critical.

• Industrial Press Control: Managing the proportional valves that regulate pressure and flow in heavy-duty hydraulic presses.

• Renewable Power Plants: Interfacing with power electronics to regulate the reactive power and voltage output of large-scale inverters.

• Motion Control: Providing velocity setpoints to analog-controlled motor drives in legacy or specialized automation machinery.

Important Precautions

To ensure safety and maintain signal integrity, the following guidelines must be observed:

• Proper Shielding: Use high-quality shielded cables for all analog signals. The shield should be connected to a low-impedance ground at the module side to prevent electromagnetic interference from distorting the output.

• Voltage Drop Consideration: When using voltage outputs over long distances, be mindful of the voltage drop caused by the cable resistance. For long-distance transmission, 4-20mA current signals are generally preferred.

• External Power Supply: Many Bachmann analog modules require an external 24V DC supply to power the output circuitry. Ensure this power source is stable and meets the ripple specifications mentioned in the manual.

• Safe State Configuration: Configure the "Fail-Safe" behavior in the software. You must define whether the output should drop to 0V/0mA, hold the last value, or move to a specific safe value in the event of a controller stop or communication failure.

• Heat Dissipation: Install modules in the correct orientation to allow for natural air convection. Avoid placing these modules directly above high-heat components like power supplies within the control cabinet.

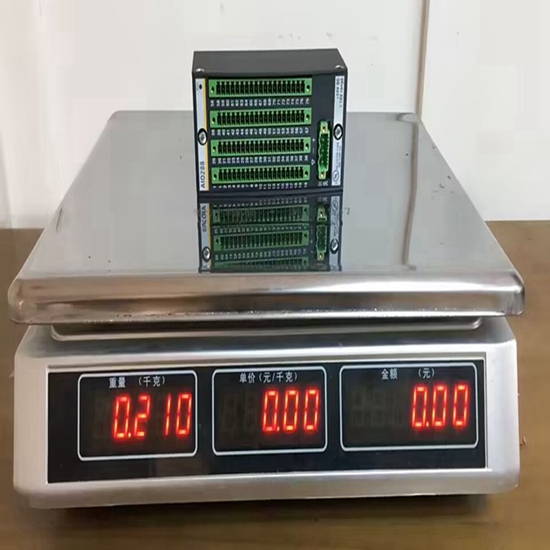

The structure and details of the product：
