MDSKSRS056-23 LENZE

MDSKSRS056-23 LENZE Interface Module

Product  Description：

Lenze interface modules are specialized communication and expansion components designed to integrate Lenze frequency inverters, servo drives, and controllers into broader industrial automation networks. These modules act as specialized translators, converting proprietary internal drive data into open industrial fieldbus or Ethernet protocols. By enabling seamless data exchange, they allow central programmable logic controllers (PLCs) or industrial PCs to monitor diagnostics, adjust parameters, and execute high-speed motion commands in real time.

Product Parameters

The technical characteristics of Lenze interface modules focus on networking compatibility, data throughput, and drive synchronization:

• Supported Network Protocols: Broad compatibility across global industrial standards, including EtherCAT, PROFINET, EtherNet/IP, CANopen, and Modbus TCP.

• Transmission Speed: High-speed Ethernet-based variants support 100 Mbps communication, while serial or fieldbus versions operate at standard protocol baud rates up to 12 Mbps for Profibus.

• Hardware Connections: Typically engineered with dual RJ45 ports to support daisy-chain network topologies, or terminal block connectors for serial bus wiring.

• Interface Compatibility: Custom-designed to plug directly into the dedicated expansion slots of specific Lenze drive families, such as the i500, i550, or 8400 series inverters and TopLine servo drives.

• Isolation Voltage: Integrated electrical isolation between the communication bus network and the internal drive control logic, commonly rated at 500V AC or higher.

• Power Consumption: Low power draw architecture, utilizing the drive's internal control voltage supply without requiring an external auxiliary power source.

Product Advantages

Lenze interface modules offer substantial operational benefits for modular machine building and precise motion control:

• Seamless Modular Expansion: The plug-and-play design allows standard Lenze inverters to be easily adapted to different factory network requirements without changing the core drive hardware.

• Real-Time Motion Performance: Modules supporting high-speed protocols like EtherCAT provide highly deterministic communication, allowing for tight synchronization of multi-axis servo systems.

• Simplified Engineering Integration: Fully compatible with Lenze's EASY Product Finder and PLC Designer software tools, allowing for straightforward commissioning, parameter replication, and device mapping.

• Space-Saving Architecture: By integrating directly into the housing footprint of the drive, these modules eliminate the need for external protocol gateways, saving valuable DIN rail space inside the control enclosure.

• Comprehensive Remote Diagnostics: Grants high-level automation systems direct access to internal drive parameters, fault logs, current consumption, and thermal statuses for efficient predictive maintenance.

Product Applications

These modules are widely utilized wherever Lenze drives need to be part of a coordinated machine network:

• Material Handling and Logistics: Interfacing inverters on long conveyor lines, sorting systems, and automated storage units with a centralized control system.

• Packaging Machinery: Providing the high-speed communication backbone necessary to synchronize rotary cutters, film feeds, and wrapping axes in vertical form fill seal machines.

• Printing and Paper Conversion: Coordinating multiple tension control and winding drives to maintain exact material placement at high web speeds.

• Automated Assembly Cells: Linking servo-driven robotic arms, rotary index tables, and pick-and-place stations to an EtherCAT or PROFINET master controller.

• Pump and Fan Systems: Connecting multi-pump configurations in building automation or industrial processing plants to optimize energy consumption via fieldbus coordination.

Important Precautions

To maintain communication network reliability and prevent drive hardware failure, follow these operational requirements:

• Power-Down Installation: Never insert, remove, or modify an interface module while power is applied to the drive. Doing so can cause permanent electrical damage to the drive's control card and the module's bus pins.

• Correct Network Termination: For fieldbus variations like CANopen or Profibus, make sure that a terminating resistor is correctly activated at the physical first and last nodes of the network to prevent signal reflection errors.

• Shielding and Grounding: Use only high-quality, industrial-shielded communication cables. Ensure the cable shield is properly grounded at the drive entry point to prevent electromagnetic noise from nearby motor cables from corrupting network packets.

• Address and Switch Configuration: Double-check any physical DIP switches or rotary dials on the module used for node addressing or baud rate selection before powering up, as setting duplicate addresses will cause severe network conflicts.

• Firmware Compatibility: Verify that the firmware version of the Lenze host drive is compatible with the specific version of the interface module being installed, as mismatched software can lead to communication initialization faults.

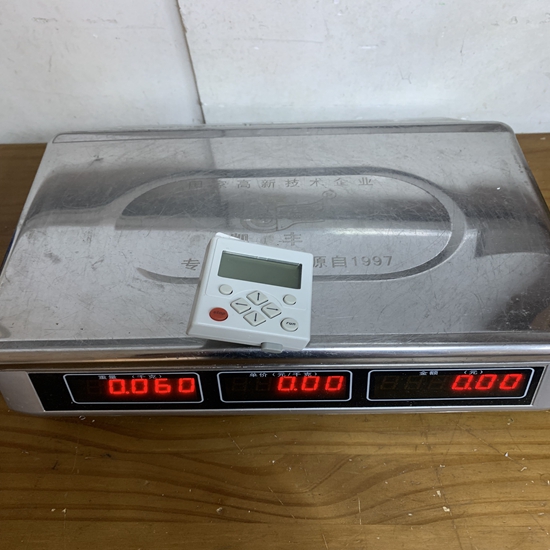

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
