EIBB3070 EATON

EIBB3070 EATON Interface Module

Product  Description：

An EATON Interface Module is a modular device or card that acts as a translator or mediator between different communication protocols, electrical signals, or network segments within an automation architecture. Its primary function is to enable devices that speak different "languages" (e.g., Modbus, PROFIBUS, Ethernet/IP) to exchange data seamlessly, or to condition signals between field devices and the main controller. These modules are essential for system integration, allowing controllers to communicate with remote I/O blocks, smart sensors, motor starters, or enterprise-level systems. They often feature isolation circuitry to protect the controller from electrical noise and voltage spikes originating from the field wiring.

Product Parameters

The specific parameters of an EATON Interface Module depend heavily on its function (e.g., protocol converter, network gateway, or signal conditioner), but common specifications include:

• Supported Protocols: Examples include CANopen to Ethernet/IP, Modbus RTU to Modbus TCP, or PROFIBUS DP Slave to DeviceNet Master.

• Data Throughput: Measured in Mbps (Megabits per second) or data exchange rate (e.g., milliseconds per update cycle).

• Communication Ports: Typically includes RJ45 (Ethernet), DB9 (RS-232/RS-485), or terminal blocks for fieldbus wiring.

• Electrical Isolation: Often features optical isolation of $500 \text{ V}_{\text{AC}}$ or more between the field-side and controller-side circuits.

• Power Supply: Generally $24 \text{ V}_{\text{DC}}$ or supplied directly by the backplane of the host system.

• Configuration Method: Often configured via web interface, proprietary software tool, or DIP switches.

• Mounting: Typically DIN rail mountable for easy installation in control cabinets.

Product Advantages

EATON Interface Modules offer substantial advantages for automation systems:

• Seamless Interoperability: They enable heterogeneous networks to function as a unified system by translating data between incompatible communication standards.

• System Scalability: They allow for the easy expansion of the control system by connecting new devices or remote I/O racks using common network technologies, simplifying wiring and reducing hardware costs.

• Noise Immunity and Protection: Built-in electrical isolation protects sensitive controller electronics from ground loops, voltage fluctuations, and electrical noise from the factory floor.

• Simplified Wiring: By aggregating data from multiple field devices onto a single communication link (e.g., an industrial Ethernet cable), they significantly reduce the amount of complex point-to-point wiring.

• Remote Diagnostics: Many modules support remote monitoring and diagnostics over the network, simplifying troubleshooting and reducing maintenance time.

Important Considerations (Precautions)

Proper deployment of an Interface Module requires attention to several precautions:

• Protocol Matching: Ensure the module is configured correctly to match the baud rate, parity, and addressing scheme of both the host controller and the field device network.

• Power Quality: A stable, filtered $24 \text{ V}_{\text{DC}}$ power supply is essential to prevent module faults and ensure reliable communication, especially in noisy electrical environments.

• Termination: Proper network termination resistors must be installed on fieldbus networks (like RS-485 or PROFIBUS) to prevent signal reflection, which can lead to intermittent communication errors.

• Grounding Practices: Adherence to strict grounding practices is necessary, connecting the module's ground terminal to the system protective earth to maximize the effectiveness of the electrical isolation.

• Configuration Management: The module's configuration file should be backed up, as reconfiguring a complex gateway module from scratch can be time-consuming if the module needs replacement.

Product Applications

EATON Interface Modules are employed wherever disparate systems need to communicate:

• Machine Retrofits: Connecting new, modern controllers to older machines that use legacy fieldbus protocols (e.g., connecting a new Ethernet PLC to an existing DeviceNet network).

• Remote I/O and Field Devices: Acting as a gateway between a central controller and distributed remote I/O blocks, motor control centers (MCCs), or smart sensors across a large plant area.

• Enterprise Integration: Providing a secure, managed interface for sending plant floor data (OT) from PLCs and drives up to supervisory control and data acquisition (SCADA) systems or manufacturing execution systems (MES).

• Building and Process Automation: Used to integrate building management systems (BMS) with industrial control systems, allowing for unified monitoring and control of utilities and processes.

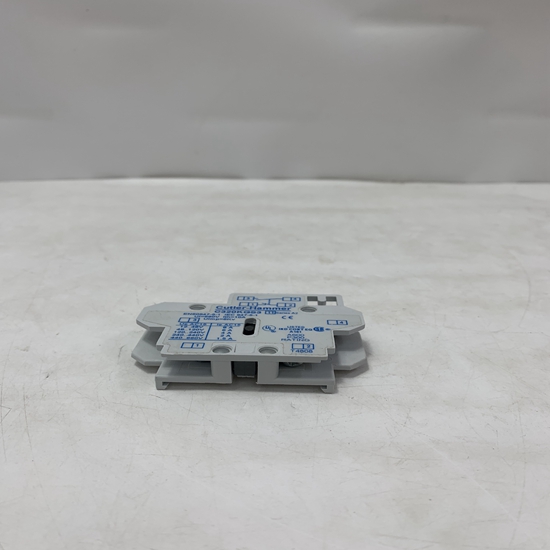

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
