D26MR40A EATON

D26MR40A EATON Operator unit

Product  Description：

The D26MR40A is a multipole, DC-powered industrial relay designed for high-cycle applications. The "MR" designation identifies it as a Master Relay with a DC coil, and the "40" indicates its specific contact configuration of 4 Normally Open (NO) poles. It features a modular, rugged design that allows for significant customization; for example, the contact poles are field-convertible, and the relay can be expanded with additional decks. Its construction is centered around a heavy-duty frame and a precision-wound coil, ensuring that the relay provides consistent switching times across its entire operational life.

Product Parameters

• Coil Operating Voltage: $120 \text{ VDC}$ (nominal).

• Contact Configuration: 4 Normally Open (4NO) fixed poles.

• Thermal Current Rating: $10 \text{ A}$ continuous (NEMA A600 rating for AC, P600 for DC).

• Maximum Voltage: Rated for up to $600 \text{ V}$ insulation.

• Mechanical Operations: Rated for over 10 million cycles under standard conditions.

• Coil Power Consumption: Typically around $7 \text{ to } 10 \text{ Watts}$ for sealed operation.

• Mounting Style: Standard surface mounting via screws, typically within a NEMA-rated enclosure or on a sub-panel.

• Certifications: UL listed, CSA certified, and compliant with NEMA industrial standards.

Product Advantages

A primary advantage of the D26MR40A is its Field-Convertible Contacts. Each pole can be easily changed from Normally Open (NO) to Normally Closed (NC), providing immense flexibility for last-minute circuit modifications without needing to purchase new parts. The Compact Footprint allows for a high density of control logic within an electrical cabinet, which is critical for complex machinery.

The relay is also known for its High Reliability in Harsh Conditions; it is designed to resist the effects of dust, oil mist, and vibrations commonly found in heavy industrial plants. Additionally, the Modular Expansion Capability means that users can add a second deck of contacts or a pneumatic timer attachment directly to the top of the base relay, making it one of the most versatile control components in the Eaton portfolio.

Important Considerations and Precautions

When installing the D26MR40A, it is vital to ensure that the Control Voltage is Stabilized. DC coils are sensitive to voltage drops; if the voltage falls below 80% of the nominal $120 \text{ VDC}$, the relay may "chatter" or fail to pull in, which can cause excessive heat and contact welding. Polarity Sensitivity must also be observed depending on whether surge suppression modules are installed across the coil.

Maintenance personnel should regularly check for Contact Pitting, especially when switching inductive loads like large solenoid valves or motor starters. It is highly recommended to install a flywheel diode or RC snubber across the load to suppress inductive kicks that can degrade the contacts. Finally, always ensure the Terminal Screws are tightened to the specified torque to avoid localized heating, which is a leading cause of premature relay failure in high-current applications.

Product Applications

The Eaton D26MR40A is a standard component in several critical industrial sectors:

• Automotive Manufacturing: Used in the master control logic for assembly lines and metal stamping presses where multi-pole switching is required for safety interlocking.

• Machine Tool Control: Managing the operational sequencing of CNC peripherals, coolant pumps, and tool changers.

• Lifting and Hoisting: Integrating into the control panels of overhead cranes and heavy-duty hoists to manage auxiliary motor functions.

• Power Plant Utilities: Serving as a reliable interface relay in switchgear control circuits for monitoring breaker positions.

• Process Automation: Coordinating the timing and sequencing of valves and actuators in chemical processing plants.

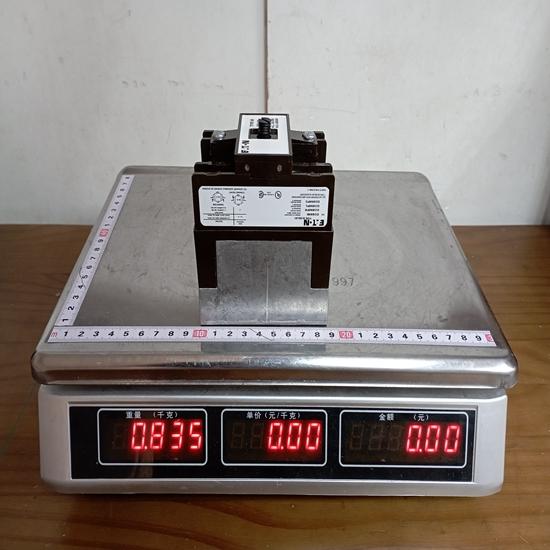

The structure and details of the product：
