B91065502 BENDER

B91065502 BENDER Central unit

Product  Description：

Bender Central Units, primarily represented by advanced evaluation controllers, gateways, and master devices within the LINETRAXX and COMTRAXX series, serve as the intelligent hub for electrical safety and power quality monitoring systems. These units are engineered to collect, analyze, and communicate data from distributed measuring transducers, residual current monitors (RCMs), and insulation fault location systems. By centralizing field data, the central unit provides comprehensive visibility into the health of ungrounded (IT), grounded (TN), and resistance-grounded (TT) electrical systems.

Product Parameters

The technical configuration of a Bender Central Unit focuses on precision monitoring, diverse network capability, and robust industrial design:

• Auxiliary Voltage Supply: Supports wide-range inputs, typically 24V to 240V AC or DC, ensuring compatibility with varying global power standards.

• Device Capacity: Single master units can manage up to 30, 90, or more distributed measuring channels and sensor inputs via internal and external bus networks.

• Communication Bus: Integrated with standard RS-485 interfaces running proprietary Bender BMS protocols alongside open Modbus RTU channels.

• Network Interface: Equipped with industrial Ethernet ports supporting Modbus TCP, SNMP, and integrated web server technologies for remote browser access.

• Response and Processing Time: High-speed evaluation cycles capable of capturing structural system faults and insulation degradation in milliseconds.

• Relay Outputs: Features configurable alarm relays (e.g., Form C contacts rated up to 250V AC) for automated trip signaling or external horn activation.

Product Advantages

Bender Central Units are preferred in critical infrastructure due to their sophisticated diagnostic intelligence and preventative safety benefits:

• Early Fault Detection: Tracks minor changes in insulation resistance and residual currents long before a circuit breaker trips, allowing for scheduled maintenance instead of forced shutdowns.

• Centralized Visual Monitoring: Combines local digital displays with integrated web servers, allowing engineers to view real-time safety metrics and trends across the entire facility from any connected PC.

• High Electromagnetic Compatibility: Advanced internal filtering enables the unit to operate flawlessly near high-frequency noise sources like variable frequency drives (VFDs) and solar inverters.

• Automated Fault Localization: Works seamlessly with evaluation modules to automatically pinpoint the specific electrical branch or load causing an insulation breakdown.

• Scalable Architecture: The modular software and hardware design allow system operators to add new monitoring circuits as the electrical network expands.

Product Applications

These central units are crucial in industries where unexpected power interruptions can lead to financial loss or safety hazards:

• Healthcare and Hospitals: Managing the isolated power systems (IPS) in critical care areas and operating rooms to ensure life-support equipment never fails unexpectedly.

• Data Centers and IT Infrastructure: Continuous monitoring of continuous power supplies (UPS) to prevent unexpected ground faults from corrupting critical server hardware.

• Renewable Energy Installations: Overseeing the electrical safety of large-scale photovoltaic power plants and wind turbine generators.

• Marine and Offshore Engineering: Controlling the isolated electrical grids on commercial ships, oil platforms, and subsea distribution systems.

• Manufacturing and Process Automation: Protecting continuous production lines, such as glass manufacturing or chemical processing, from costly unscheduled downtime.

Important Precautions

To maintain the accuracy of the monitoring system and avoid personal hazard, the following operational instructions must be followed:

• Earth Reference Grounding: The functional ground terminal of the central unit must be tied directly to the main plant earth utilizing a clean, low-impedance conductor to guarantee precise insulation measurement.

• Voltage Level Compliance: Always cross-reference the network voltage with the specific rating of the unit or its accompanying coupling modules. Directly connecting a low-voltage central unit to a medium-voltage bus will cause catastrophic failure.

• Correct Address Assignment: When expanding the BMS or Modbus network, ensure every sub-device has a unique hardware address assigned. Duplicate addresses will result in erratic data collisions and communication blackouts.

• Enclosure Environmental Controls: While the unit is rugged, it must be installed within a suitable control panel (typically IP54 or higher) if operating in environments prone to conductive dust, condensation, or chemical vapors.

• Safe Maintenance Isolation: Before executing any dielectric strength or insulation tests on the physical power cables of the facility, disconnect the central unit from the network to prevent the high-voltage test signals from damaging the sensitive measuring electronics.

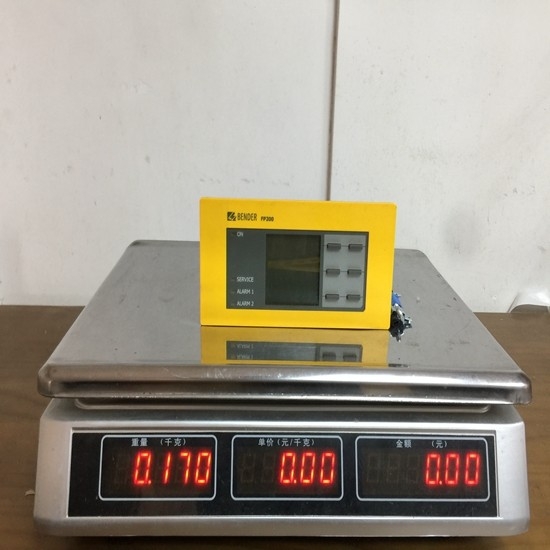

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
