IR425-D4M1C-2 BENDER

IR425-D4M1C-2 BENDER Programmable controller

Product  Description：

The voltage monitor VME421H monitors AC/DC systems in the frequency range of DC/15…460 Hz for undervoltage, overvoltage, underfrequency or overfrequency.

Device variant -1 is suitable for the nominal voltage range Un = 9.6…150 V, device variant -2 for Un = 70…300 V. The supply voltage is taken from the nominal voltage being monitored Un.

In order to meet the requirements of the applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the

technical data.

• Voltage and frequency monitoring of single-phase machines and electrical installations

• Earth fault monitoring in medium-voltage systems via voltage transformers

• Monitoring of battery systems

• Switching machinery and equipment on and off at a certain voltage level Once the supply voltage is applied, the start-up delay “t” begins. Measured voltage and frequency values changing during this time do not influence the switching state of the alarm relays.

The devices feature two separately adjustable measuring channels (overvoltage/undervoltage). When the measuring quantity exceeds the response value (“Alarm 1”) or falls below the response value (“Alarm 2”), the time of the response delays “ton1/2” begins.

Once the response delay has elapsed, the alarm relays switch and the alarm LEDs light up. When the measuring value exceeds or falls below the release value (response value plus hysteresis) after the alarm relays have switched, the selected release delay “toff” begins. When “toff” has elapsed, the alarm relays switch back to their initial position. When the fault memory is activated, the alarm relays remain in alarm position until the reset button R is pressed. Also in the event of complete power failure of the system being monitored, the delay times are effective during the energy backup discharging time.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：

BENDER IRDH275-435

BENDER IRDH275-427

BENDER IRDH275B-415

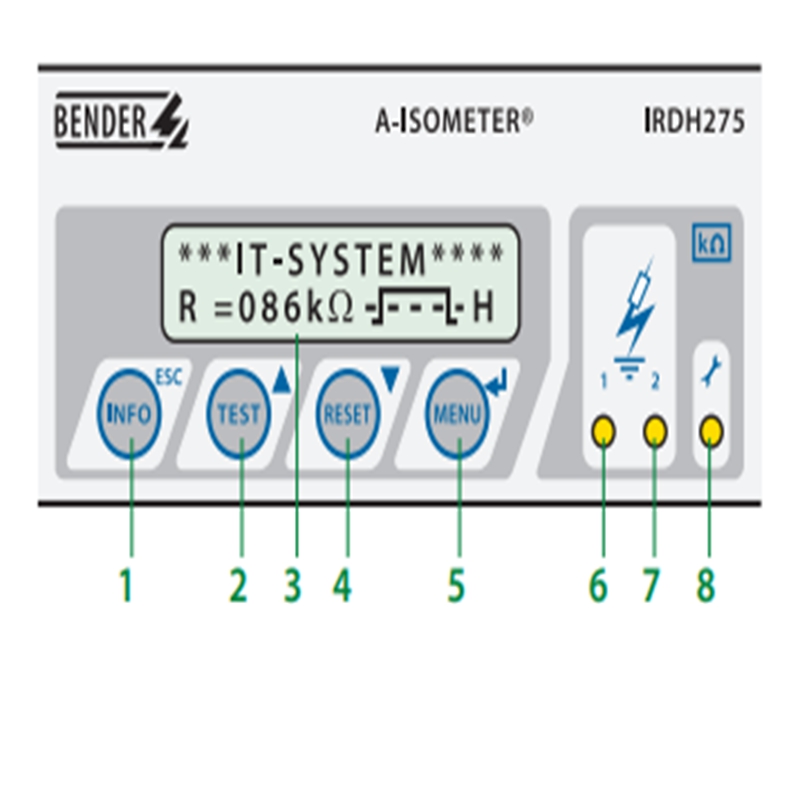

BENDER IRDH275

BENDER IR425-D4M1C-2

BENDER iso685-D-B

BENDER IRDH275B-427

BENDER IR425-D4M1C2-2

BENDER IR425-D4-1

BENDER MK2418

BENDER MK2418A-11

BENDER 107TL47

BENDER IRDH275B-435

BENDER RCMA421 H-D-2

BENDER VMD421H

BENDER IR425-D4-2

BENDER EDS460-D-2

BENDER IRDH275-427

BENDER VMD420-D-2

BENDER RCMA420-D-1

BENDER W1-S35 B911731

BENDER VME421H-D-2

BENDER VMD421H-D-3

BENDER RCM420-D-2

BENDER IRDH-275B-435

BENDER ISOPV425-D4-4

BENDER AGH420

BENDER AGH150W-4

BENDER IRDH575B1-427

BENDER UG140P

BENDER AGH675S-7
