AIP827-1 Yokogawa

AIP827-1 Yokogawa Output I/O module

Product  Description：

The AIP827-1 is a flat, industrial-grade keyboard that connects to a console PC via a USB interface. Unlike generic peripherals, it is engineered specifically for the mission-critical environment of a control room. It features a layout optimized for process control, including a full alphanumeric set for data entry and a dedicated section of special function keys. These keys allow for "one-touch" access to frequently used windows, alarm management, and process variables. A significant feature is its integrated audio capability; it contains an independent USB speaker and electronic buzzers to provide audible feedback and immediate alerts for system alarms.

Product Parameters

• Type: Dust-proof and drip-proof industrial flat keyboard.

• PC Interface: USB 2.0 (Full-speed, bus-powered) for keyboard functions; USB 1.1 for sound functions.

• Input Voltage: $5 \text{ VDC} \pm 5\%$ (Supplied directly from the USB port of the computer).

• Power Supply (for AC adapter models): $100 \text{--} 120 \text{ VAC}$ at $50/60 \text{ Hz}$ (Suffix -1) or $220 \text{--} 240 \text{ VAC}$ (Suffix -2).

• Power Consumption: Maximum $1 \text{ A}$ via USB or $20 \text{ VA}$ via AC supply.

• External Dimensions: $440 \text{ mm (W)} \times 284 \text{ mm (D)} \times 52 \text{ mm (H)}$. Height increases to $73 \text{ mm}$ when the adjustable feet are extended.

• Weight: Approximately $2.3 \text{ kg}$ to $2.5 \text{ kg}$ depending on the specific assembly.

• Operating Temperature: $5 \text{ to } 40 \text{°C}$.

• Ambient Humidity: $20 \text{ to } 80\% \text{ RH}$ (Non-condensing).

• Protection Rating: Designed for industrial reliability, often cited with IP65-level protection for the front face.

• Paint Color: Frosty White (Munsell No. 2.5Y8.4/1.2).

Product Advantages

• Operational Efficiency: The inclusion of 32 dedicated function keys and window call keys allows operators to navigate complex process screens instantly without searching through menus.

• Industrial Durability: Its dust-proof and drip-proof design ensures that accidental spills or dusty environments do not lead to hardware failure, which is a common risk with commercial-grade keyboards.

• Integrated Alarm Feedback: The built-in speaker and buzzer ensure that operators receive redundant sensory alerts (visual and audible), which is critical for maintaining plant safety during high-stress events.

• Ease of Integration: As a plug-and-play USB device, it is easily replaced or installed without requiring complex hardware configurations, provided the system software revision is R3.03 or later.

• User-Definable Customization: It supports user-definable function keys, allowing the interface to be tailored to the specific needs of a particular plant or process area.

Important Considerations

• Software Compatibility: This keyboard is intended for use with Yokogawa Centum systems. Ensure the software revision is R3.03 or later before installation.

• Power Management: While it is bus-powered, it has a relatively high current consumption (up to $1 \text{ A}$). It should be connected directly to the PC's USB port or a high-quality powered USB hub to ensure stable operation.

• Environmental Limits: While rugged, it is not designed for extreme temperatures. Ensure the control room environment remains within the $5 \text{ to } 40 \text{°C}$ range to prevent electronic degradation.

• Cleaning Maintenance: When cleaning the flat surface, avoid using abrasive chemicals that could damage the membrane or the "Frosty White" paint finish. Use a soft, damp cloth suitable for industrial plastics.

• Discontinuation Notice: Note that the AIP827 series has been largely superseded by the newer AIP830 model. When sourcing spares, confirm if the system requires the specific AIP827-1 model or if a migration to the newer series is necessary.

Product Applications

• Refineries and Chemical Plants: Where operators must monitor hundreds of loops and require fast "window call" capabilities to respond to chemical process deviations.

• Power Generation Facilities: Used in centralized control rooms to manage turbines, boilers, and electrical distribution through the Centum VP interface.

• Water and Wastewater Treatment: Providing a reliable operator interface in environments where humidity and dust might be present.

• Manufacturing and Automation: Acts as the primary Human-Machine Interface (HMI) for engineers and operators to input setpoints, acknowledge alarms, and run diagnostic sequences on the DCS.

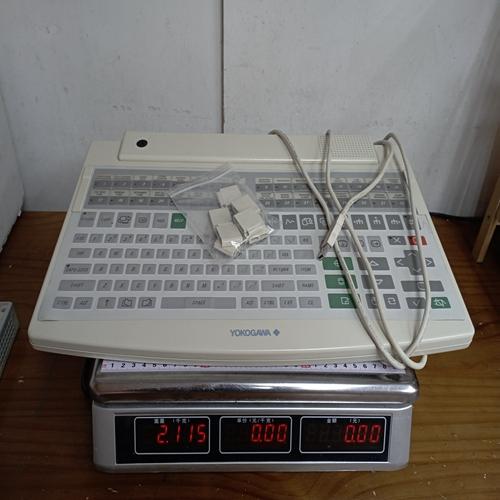

The structure and details of the product：
