ADV161-P00 Yokogawa

ADV161-P00 Yokogawa Communication Interface

Product  Description：

Yokogawa Communication Interfaces are high-reliability networking modules designed for the CENTUM Distributed Control System (DCS), ProSafe-RS safety systems, and FA-M3 range-free controllers. These interfaces establish a robust data highway between the main control processor and external subsystems, such as supervisory computers, third-party PLCs, field instruments, and enterprise management platforms. Engineered for mission-critical industrial environments, they ensure seamless, real-time data flow without compromising the stability of core process control.

Product Parameters

The technical configuration of a Yokogawa Communication Interface focuses on industrial protocol alignment, throughput, and structural integrity:

• Network Compatibility: Supports industry-standard protocols including Modbus TCP/RTU, EtherNet/IP, PROFIBUS DP, PROFINET, FOUNDATION Fieldbus, and Yokogawa’s proprietary Vnet/IP high-speed control network.

• Data Transmission Speed: Vnet/IP copper or fiber optic connections operate at 1 Gbps (Gigabit per second), while standard serial interfaces run at configurable rates from 1.2 kbps up to 115.2 kbps.

• Physical Interfaces: Equipped with dual-redundant RJ45 Ethernet ports, fiber optic LC/ST connectors, or D-sub connectors for RS-422/RS-485 serial communication.

• Communication Distance: Ethernet segments support up to 100 meters over twisted-pair cabling, which extends up to 15 kilometers when using single-mode fiber optic links.

• Maximum Node Capacity: Capable of managing connections to hundreds of field devices or multiple host systems simultaneously depending on the selected protocol sub-layer.

• Power Consumption: Low heat emission profile, typically drawing a steady 3.3V DC or 5V DC directly from the controller base plate or rack backplane.

Product Advantages

Yokogawa’s communication technology stands out in processing and petrochemical industries due to its focus on continuous operation:

• True Dual Redundancy: Most Yokogawa interface modules feature native dual-line redundancy, allowing the system to instantly switch to a backup communication path without losing a single data packet if a cable or port fails.

• Deterministic Vnet/IP Communication: By utilizing an open yet strictly managed Ethernet technology, Yokogawa guarantees that high-priority control commands take precedence over background configuration data traffic.

• Enhanced Cyber Resilience: Modules are designed with robust internal security architectures, including IP address filtering and port restriction, protecting the core control layer from unauthorized network intrusion.

• Minimum CPU Load Impact: The module utilizes an onboard independent processor to manage the communication stack and frame packaging, leaving the main controller CPU completely free to execute control logic and safety algorithms.

• Maintenance and Long Lifecycle: Supports hot-swapping under live power, enabling maintenance teams to replace modules without halting process control operations.

Product Applications

These interfaces serve as the critical connectivity backbone in large-scale, automated infrastructure:

• DCS to PLC Integration: Linking a central CENTUM DCS room with remote, specialized third-party equipment like package boilers, water treatment skids, or compressor control panels.

• Fieldbus Asset Management: Routing diagnostic and calibration data from smart field instruments to Yokogawa's PRM (Plant Resource Manager) software for predictive maintenance.

• SCADA and ERP Connectivity: Providing the high-speed data link required to push real-time factory floor metrics up to plant historians, SCADA systems, or corporate enterprise platforms.

• Safety System Synchronization: Facilitating safe communication between the ProSafe-RS Emergency Shutdown System (ESD) and the main process control loop for unified emergency responses.

• Energy Management Systems: Connecting control racks to smart power meters and substations via specialized utilities protocols like IEC 60870 or DNP3 to monitor total plant energy expenditure.

Important Precautions

To preserve the integrity of the network and avoid unexpected system disconnects, adhere to the following protocols:

• Network Architecture Isolation: Never bridge the dedicated industrial control network (like Vnet/IP) directly with the general office IT network. Always utilize a secure corporate firewall or an isolated Demilitarized Zone (DMZ) server.

• Strict Redundancy Alignment: When deploying redundant communication lines, ensure that the A-line and B-line cables are routed through physically separate trays to prevent a single mechanical incident from severing both paths.

• Proper Shielding and Grounding: Use high-grade shielded cables for all serial and Ethernet communication. Ensure that the cable shield is grounded correctly at the designated system end to prevent electromagnetic interference from distorting data frames.

• Address and Parameter Synchronization: Before commissioning, carefully verify that node numbers, station addresses, and baud rates match the external device configuration exactly. Mismatched settings can flood the network with error retries.

• Firmware and Configuration Consistency: When replacing an older module, verify that the new hardware firmware version aligns with the revision layer of the current system software to prevent configuration loading conflicts.

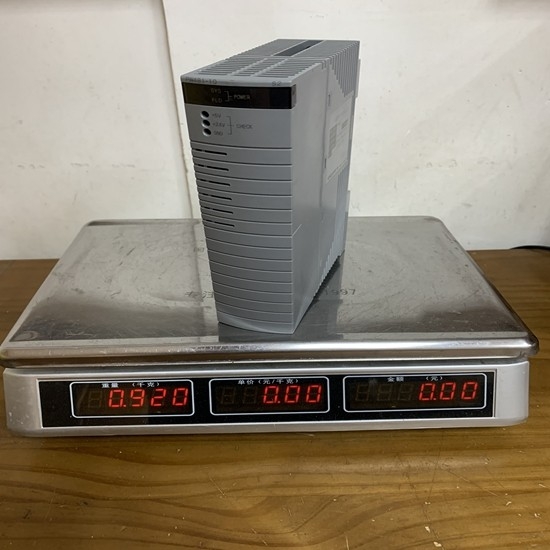

The structure and details of the product：
