6ES7331-7NF00-0AB0 SIEMENS

6ES7331-7NF00-0AB0 SIEMENS Basis unit

Product  Description：

The 6ES7331-7NF00-0AB0 is a specialized member of the SM 331 series. Unlike standard analog modules, the "7NF00" variant is optimized for high-speed applications and features hardware-based synchronization. It supports a variety of signal types, including voltage and current, and provides 16-bit resolution, ensuring that even the most minute changes in field sensor data are accurately captured. The module provides electrical isolation between the backplane bus and the input channels, as well as between the channels themselves in certain configurations, which is critical for protecting the central PLC from field-side electrical surges.

Product Parameters

• Input Channels: 8 analog inputs.

• Resolution: 16 bits (including sign bit), providing high granularity for precise measurements.

• Input Ranges (Voltage): $\pm 5 \text{ V}$, $\pm 10 \text{ V}$, $1 \text{ V}$ to $5 \text{ V}$.

• Input Ranges (Current): $\pm 20 \text{ mA}$, $0 \text{ mA}$ to $20 \text{ mA}$, $4 \text{ mA}$ to $20 \text{ mA}$.

• Cycle Time: Extremely fast conversion; all 8 channels can be processed in as little as $10 \text{ ms}$ depending on the interference frequency suppression settings.

• Isolation: Tested at $500 \text{ VDC}$ between channels and backplane bus.

• Power Supply: Requires $24 \text{ VDC}$ backplane power and external $24 \text{ VDC}$ for sensor supply if configured for 2-wire transmitters.

• Front Connector: Requires a 40-pin front connector (not included with the base module).

• Diagnostics: Supports hardware interrupts and diagnostic interrupts for wire break, overflow, and underflow.

Product Advantages

A primary advantage of the 6ES7331-7NF00-0AB0 is its High-Speed Performance. It is specifically designed for applications where standard analog modules are too slow to follow rapid process changes. The High Resolution (16-bit) allows for extremely accurate scaling, which is vital in chemical dosing or precision pressure monitoring.

Furthermore, the module features Advanced Noise Suppression. It uses sophisticated filtering techniques to eliminate $50/60 \text{ Hz}$ power line interference, ensuring stable readings even in electrically "noisy" factory floors. The Flexible Configuration is another benefit; each channel can be independently set for different signal types (e.g., Channel 0 for $4-20 \text{ mA}$ and Channel 1 for $\pm 10 \text{ V}$) using the physical range card on the side of the module and software settings in STEP 7 or TIA Portal.

Important Considerations and Precautions

When installing the 6ES7331-7NF00-0AB0, the most common error involves the Range Measuring Modules (Range Cards) located on the side of the module. These plastic cubes must be physically rotated to the correct position (A, B, C, or D) to match the programmed signal type; failure to do so can result in incorrect readings or hardware damage.

Shielding and Grounding are also critical. For high-accuracy 16-bit measurements, the analog signal cables must be shielded, and the shield should be grounded using the S7-300 shield connecting element to prevent electromagnetic interference. Additionally, if using 4-wire Transmitters, ensure they have a common reference potential to avoid common-mode voltage errors that could exceed the module's limits. Lastly, always ensure the 40-pin Front Connector is wired correctly and securely latched, as loose connections on a 16-bit module will result in significant signal jitter.

Product Applications

The 6ES7331-7NF00-0AB0 is ideally suited for demanding process industries.

• Oil and Gas: Precise monitoring of pressure and flow rates in pipelines where high resolution is required for leak detection.

• Chemical Processing: Managing reactor temperatures and pH levels where high-speed response to chemical changes is necessary.

• Power Plants: Monitoring turbine parameters and electrical load balances that require isolated and synchronized high-speed inputs.

• Pharmaceuticals: Accurate measurement for weight scales and dosing systems that must comply with strict quality tolerances.

• Metals and Mining: Controlling hydraulic pressures and high-speed mechanical positioning in rolling mills.

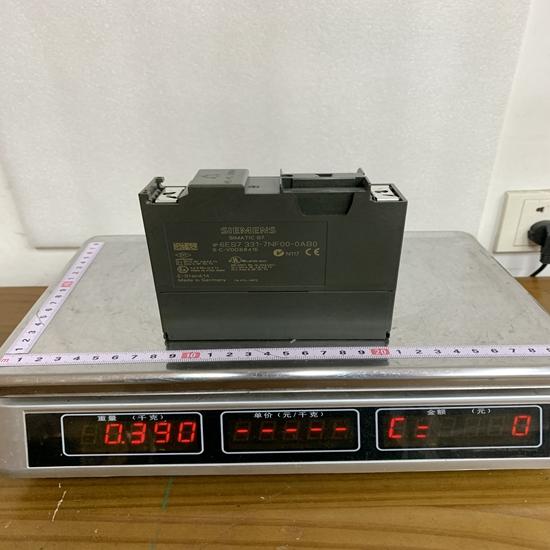

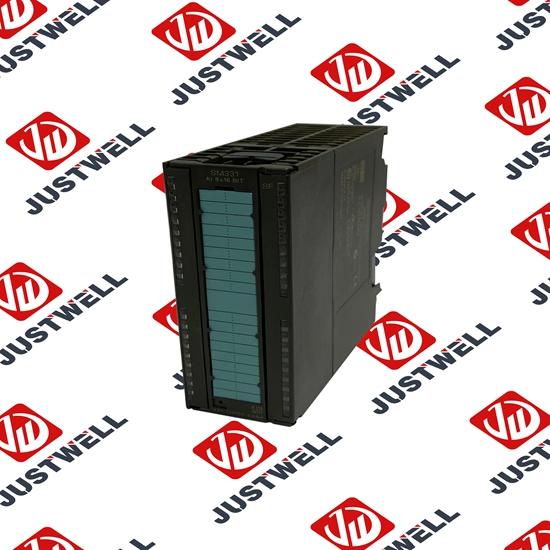

The structure and details of the product：
