6ES7322-5HF00-0AB0 SIEMENS

6ES7322-5HF00-0AB0 SIEMENS Basis unit

Product  Description：

The 6ES7322-5HF00-0AB0 is a specialized relay module that offers 8 output channels, each featuring changeover (Form C) contacts. This means each channel provides both a Normally Open (NO) and a Normally Closed (NC) contact, offering maximum flexibility for control logic. Unlike standard transistor output modules, this relay version provides complete galvanic isolation between the internal backplane bus and the external load circuits. It is designed with a compact $40 \text{ mm}$ width, fitting perfectly into the standard S7-300 rail system, and requires a 40-pin front connector for wiring.

Product Parameters

• Number of Outputs: 8 Digital Outputs (Relay contacts).

• Type of Contact: Changeover (CO) contacts, providing NO and NC options per channel.

• Galvanic Isolation: Tested at $1500 \text{ VAC}$ between channels and the backplane bus.

• Load Voltage: Supports up to $230 \text{ VAC}$ or $120 \text{ VDC}$.

• Output Current: Rated at $5 \text{ A}$ per channel for resistive loads.

• Total Current: Maximum total current of $40 \text{ A}$ for the entire module.

• Switching Frequency: Maximum $2 \text{ Hz}$ for resistive loads and $0.5 \text{ Hz}$ for inductive loads.

• Mechanical Life: Approximately 10 million operating cycles.

• Diagnostics: Includes "Group Fault" (SF) LED and individual channel status LEDs.

• Power Consumption: Typically $160 \text{ mA}$ from the backplane bus ($5 \text{ VDC}$).

Product Advantages

A key advantage of the 6ES7322-5HF00-0AB0 is its High Switching Capacity. Being able to switch up to $5 \text{ A}$ at $230 \text{ VAC}$ allows the module to directly drive large solenoids, motor starters, and heating elements without the need for interposing relays. The Changeover Contact Design is another major benefit, as it simplifies the wiring for fail-safe applications or dual-state controls (e.g., opening and closing a valve using a single channel).

The module also offers Superior Isolation, protecting the sensitive PLC CPU from high-voltage transients or electrical noise generated by heavy industrial loads. Furthermore, the Integrated Diagnostics features allow for rapid troubleshooting by clearly indicating module faults or channel status directly on the front panel, reducing system downtime.

Important Considerations and Precautions

When installing the 6ES7322-5HF00-0AB0, users must pay close attention to Contact Protection. When switching inductive loads (such as coils or motors), high-voltage spikes can occur during turn-off, which can pit the relay contacts. It is highly recommended to use external RC snubbers for AC loads or flyback diodes for DC loads to extend the life of the relay.

Another critical precaution is the Current Limitation. While the module can handle $5 \text{ A}$ per channel, the user must ensure that the total current across all channels does not exceed the thermal limits of the module or the cabinet. Wiring Safety is also paramount; because the module can switch $230 \text{ VAC}$, all power must be disconnected before opening the front door or handling the 40-pin connector. Finally, ensure the Front Connector is coded correctly to prevent the accidental insertion of a low-voltage connector into a high-voltage module.

Product Applications

The Siemens 6ES7322-5HF00-0AB0 is ideally suited for applications requiring high-power switching or mixed-voltage control.

• Heavy Machinery: Controlling large hydraulic valves and pneumatic actuators in metal stamping or plastic molding machines.

• Building Automation: Managing lighting circuits, HVAC dampers, and fan motors where $230 \text{ VAC}$ switching is standard.

• Power Distribution: Operating motor-driven circuit breakers and isolation switches in low-voltage switchgear.

• Water Treatment: Controlling pump starters and chemical dosing motors that require high-reliability relay interfaces.

• Food and Beverage: Managing heating elements and conveyor drive starters in high-temperature processing environments.

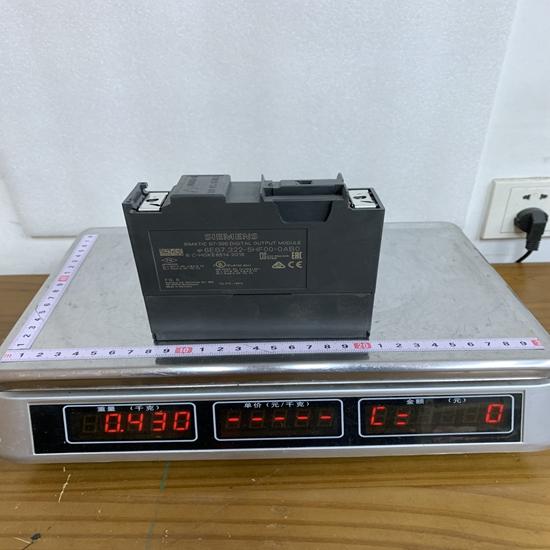

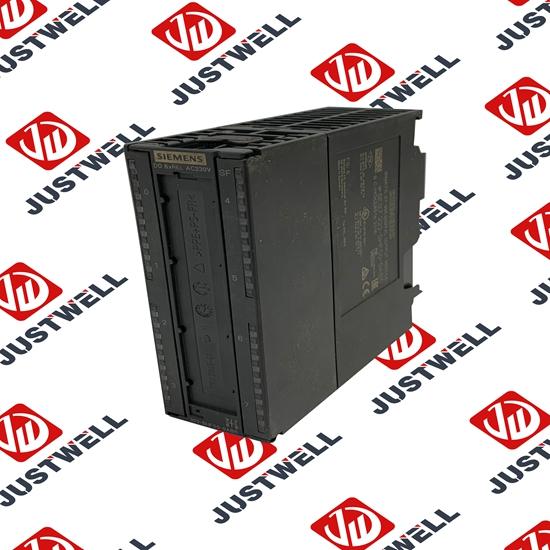

The structure and details of the product：
