2TLA010070R0000 ABB Bailey

2TLA010070R0000 ABB Bailey Analog Output Modules

Product  Description：

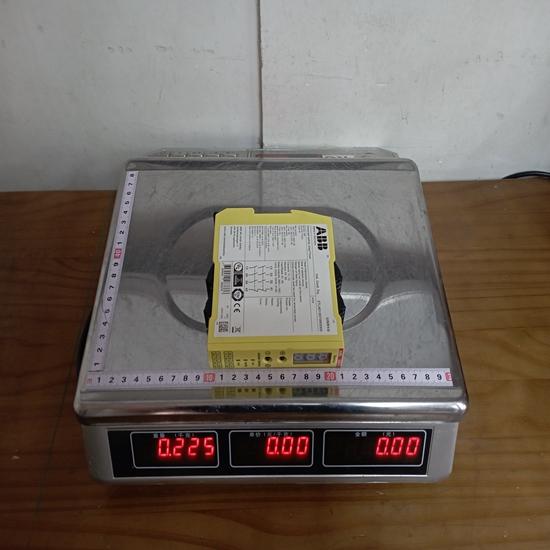

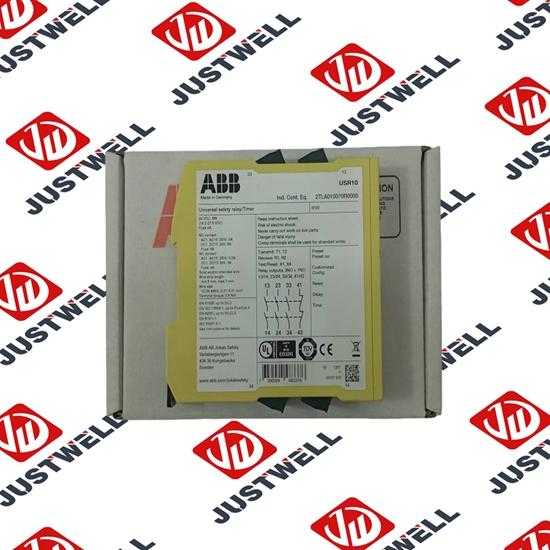

• • • • The ABB 2TLA010070R0000 is a highly versatile component from the Sentry series of safety relays. It is specifically identified as the Sentry USR10 model, which is a universal safety relay and safety timer with delayable outputs. Its main purpose is to monitor various types of safety devices in industrial machinery and ensure that hazardous motion is safely stopped or monitored according to strict international safety standards.

        Product Specifications

        • Product Type: Universal Safety Relay/Safety Timer

        • Series: Sentry USR10

        • Supply Voltage (Coil): 24 V DC

        • Output Configuration: Failsafe Relay Outputs: 3 Normally Open (NO) safety contacts and 1 Normally Closed (NC) auxiliary contact (3NO + 1NC)

        • Contact Rating: Typically rated up to $8 \text{ A}$ for NO contacts and $5 \text{ A}$ for NC contacts.

        • Terminal Type: Screw terminals for secure and robust wiring connections.

        • Mounting: DIN Rail mountable.

        • Dimensions (W x H x D): $22.5 \text{ mm} \times 120 \text{ mm} \times 120 \text{ mm}$ (Slim profile for cabinet space saving).

        • Enclosure/IP Rating: IP20 (Requires installation in a suitable electrical enclosure).

        • Timer Function: Integrated, highly accurate timer function with a range of $0$ to $999$ seconds.

        • Timer Modes: Supports various timer functions including OFF-delay, ON-delay, Time bypass, and Time reset.

        • Safety Performance Level: Capable of achieving up to Performance Level e (PLe) and Safety Integrity Level 3 (SIL 3), making it suitable for the highest level of machine safety applications.

        • Display: Features a front-facing LED display for easy configuration, diagnostics, and troubleshooting by showing error codes and logs.

        Product Advantages

        • High Versatility and Universality: The USR10 is a truly universal device capable of monitoring almost all common safety input devices, including contacts, OSSD outputs, safety mats, and two-hand controls, reducing the need for multiple specialized relays.

        • Integrated Safety Timer: The highly accurate, configurable time delay function (0-999 seconds) allows for advanced control applications, such as safely delaying the stop of machinery that requires a controlled shutdown sequence.

        • Enhanced Diagnostics: The built-in display provides clear and immediate status and error information, significantly simplifying troubleshooting, reducing downtime, and improving maintenance efficiency.

        • Simplified Configuration: The relay is configurable, with the ability to select the reset function (automatic or manual) and protect custom settings with a password.

        • High Safety Rating: Meets the stringent requirements of PLe and SIL 3, ensuring a high level of personnel and machine protection.

        • High Output Capacity: The robust output contact rating (up to $8 \text{ A}$) may eliminate the need for an additional intermediary contactor in certain applications, saving cost and panel space.

        Important Considerations (Precautions)

        • Safety System Design: This component is only a part of a complete safety system. The entire machine safety system must be designed and validated by qualified personnel in accordance with all local, national, and international standards (e.g., ISO 13849-1, IEC 62061).

        • Installation Environment: Due to its IP20 rating, the relay must be installed inside a protective enclosure that guards against excessive dust, moisture, and contamination.

        • Wiring Integrity: Use the correct size and type of wires, and ensure all screw terminals are tightened to the specified torque to maintain proper circuit integrity and prevent loose connections that could compromise safety.

        • System Power: Always disconnect all power sources to the machine before performing any installation, wiring, or maintenance on the safety relay to prevent electric shock and potential damage to the component.

        • Configuration Protection: Utilize the password protection feature to prevent unauthorized personnel from altering the safety configuration settings on the relay.

        Product Applications

        The ABB Sentry USR10 (2TLA010070R0000) is deployed in industrial environments to monitor safety functions on machinery in diverse industries.

        • Emergency Stop Circuits: Monitoring single or dual-channel emergency stop buttons to quickly and safely de-energize machinery in an emergency.

        • Safety Gate/Interlock Switches: Supervising the status of safety switches on access gates and doors to ensure power is removed when a protective guard is opened.

        • Optoelectronic Safety Devices: Connecting and monitoring safety light curtains, light beams, safety mats, safety edges, and safety bumpers, which typically have OSSD (Output Signal Switching Device) outputs.

        • Two-Hand Control Devices: Used to monitor two-hand controls required on certain presses or machines to ensure an operator's hands are safely away from the point of operation during a hazard cycle.

        • Delayed Stop Applications: Utilizing the timer function to manage safety-related controlled stops, allowing machinery to safely coast or complete a non-hazardous cycle before power is completely removed (e.g., on a grinding wheel or a conveyor belt).
