2093-AMP1 Allen-Bradley

2093-AMP1 Allen-Bradley I / O module

Product  Description：

The 2093-AMP1 is a Single-axis Inverter Module that operates within a Kinetix 2000 drive system. It does not operate as a standalone unit; instead, it must be mounted onto a 2093-PRSx Power Rail, which provides the necessary power and communication links from the integrated power module (IAM). The "AMP1" designation indicates its specific power rating and its role as an axis expansion module. It supports both Smart Motor Technology and generic permanent magnet motors, allowing for seamless integration with Allen-Bradley MP-Series and TL-Series servo motors.

Product Parameters

• Module Type: Axis Module (Inverter)

• Input Voltage: $325\text{ VDC}$ (from the common DC bus on the power rail)

• Continuous Output Current (RMS): $1.0\text{ A}$

• Peak Output Current (RMS): $3.0\text{ A}$

• Continuous Power Output: $0.3\text{ kW}$

• Efficiency: $95\%$

• Pulse Width Modulation (PWM) Frequency: $8\text{ kHz}$

• Weight: $0.67\text{ kg}$ ($1.48\text{ lb}$)

• Dimensions: Approximately $178\text{ mm}$ height, $45\text{ mm}$ width, and $183\text{ mm}$ depth

• Control Interface: SERCOS interface (via the system IAM module)

Product Advantages

• Compact Modular Design: The Kinetix 2000 system is significantly smaller than traditional servo drives. The 2093-AMP1's narrow footprint allows for high-density mounting, reducing the overall size of the electrical enclosure.

• Ease of Installation: The module features a "plug-and-play" design on the power rail. No complex wiring is required to share the DC bus; the power rail handles power distribution automatically, which minimizes wiring errors.

• High Performance: Despite its small size, it delivers the high-speed loop response and precise positioning required for high-throughput applications.

• System Integration: It is fully integrated with the Logix5000 platform via the SERCOS interface, allowing for unified programming, commissioning, and diagnostics within the Studio 5000 environment.

Important Considerations and Precautions

• Power Rail Requirement: This module cannot function without a Kinetix 2000 power rail and an Integrated Axis Module (IAM) to provide the DC bus voltage and control synchronization.

• Electrostatic Discharge (ESD): Like most high-precision electronic components, the 2093-AMP1 is sensitive to static. Proper grounding procedures must be followed during handling and installation.

• Thermal Management: Even though the module is efficient, multiple modules mounted together generate heat. Ensure that the cabinet has adequate airflow and adheres to the specified clearance requirements for cooling.

• Capacitor Discharge: After removing power, wait at least five minutes for the DC bus capacitors to discharge to safe voltage levels before touching terminals or performing maintenance.

• Proper Motor Matching: Ensure that the 2093-AMP1 power rating matches the requirements of the connected servo motor. Overloading the module can lead to thermal trips or hardware failure.

Product Applications

The 2093-AMP1 is ideal for multi-axis applications where space is at a premium and high-speed coordination is necessary.

• Packaging Machinery: Used in labeling, filling, and pouch-making machines where multiple axes must be synchronized at high speeds.

• Electronic Assembly: Perfect for pick-and-place machines and precision soldering stations that require compact footprints and rapid movements.

• Medical Equipment: Often utilized in laboratory automation or medical device manufacturing due to its clean design and precise control.

• Robotics: Suitable for small delta robots or multi-jointed arms used in material handling and light assembly.

• Textile Industry: Employed in spinning or weaving machines that require coordinated movement across numerous spindles.

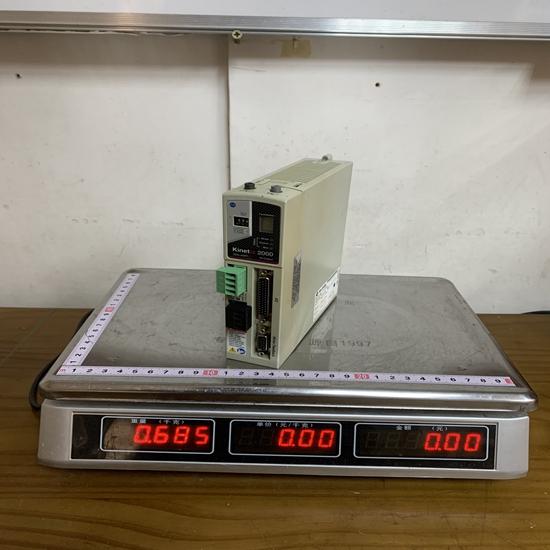

The structure and details of the product：
