2093-AC05-MP1 Allen-Bradley

2093-AC05-MP1 Allen-Bradley I / O module

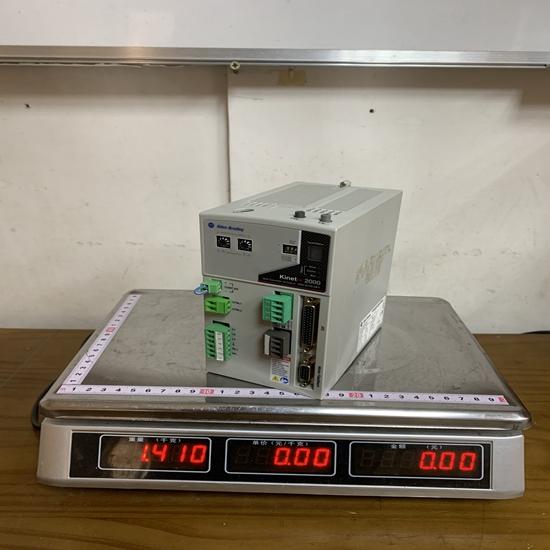

Product  Description：

The 2093-AC05-MP1 belongs to the Kinetix 2000 family, which is engineered for small-to-medium scale motion control applications that require high performance in a space-saving design. This unit is a 5-axis power rail, meaning it features a modular backplane that can support one Integrated Axis Module (IAM) and up to four additional Axis Modules (AM) or Shunt Modules. The power rail simplifies installation by eliminating most of the complicated wiring typically found between multiple servo drives, as the power and communication signals are shared through the rail's internal bus.

Product Parameters

• Product Type: Kinetix 2000 Power Rail

• Number of Axes Supported: 5 Slots (1 IAM slot and 4 additional slots for AM or functional modules)

• Input Voltage Range: $230 \text{ V}$ AC single-phase or three-phase, depending on the attached IAM module

• Current Capacity: Designed to handle the shared DC bus current for Kinetix 2000 drive modules (typically up to $15 \text{ A}$ continuous for the bus)

• Mounting Type: Panel mount via integrated mounting holes

• Weight: Approximately $2.5 \text{ kg}$ ($5.5 \text{ lb}$)

• Dimensions: Slim profile design typical of the Kinetix 2000 series to minimize control cabinet footprint

• Storage Temperature: $-40$ to $70$°C

• Operating Temperature: $0$ to $50$°C

Product Advantages

• Space Efficiency: The multi-axis design significantly reduces the width of the drive system compared to mounting five individual single-axis drives.

• Reduced Wiring Time: Because the DC bus, control power, and communication links are integrated into the rail, the user only needs to provide main power to the first module (IAM). This eliminates the need for "daisy-chaining" wires between axes.

• Modular Flexibility: The power rail allows users to mix and match different sizes of Axis Modules on the same rail, making it easy to scale the system for specific machine requirements.

• High Reliability: By reducing the number of external wiring connections, the 2093-AC05-MP1 minimizes potential points of failure, such as loose terminals or wiring errors.

Important Considerations and Precautions

• Module Placement: The Integrated Axis Module (IAM) must always be installed in the leftmost slot of the power rail to provide power to the rest of the bus.

• Slot Fillers: Any unused slots on the power rail must be protected. While the system functions with empty slots, industrial environments often require slot covers to prevent debris from entering the bus connectors.

• Grounding: Proper grounding of the power rail to the subpanel is critical for electromagnetic compatibility (EMC) and personal safety. Ensure the mounting surface is unpainted or use specialized grounding hardware.

• Ventilation: Maintain minimum clearances above and below the power rail (typically $100 \text{ mm}$) to allow for adequate airflow and cooling of the attached drive modules.

• Arcing Hazard: Never install or remove drive modules from the power rail while the main power is applied. This can cause arcing and permanent damage to the rail connectors.

Product Applications

The 2093-AC05-MP1 power rail is primarily used in high-precision motion control environments. Common applications include:

• Packaging Machinery: Coordinating multiple axes for tasks like form-fill-seal, labeling, and cartoning where space is at a premium.

• Assembly Lines: Controlling small robotic arms or pick-and-place mechanisms that require synchronized movement.

• Semiconductor Manufacturing: Precise positioning systems where clean, compact footprints are required.

• Textile Industry: Controlling winding and tensioning axes in fiber processing machines.

• Food Processing: Used in automated slicing, portioning, and high-speed sorting equipment.
