190214-01 Bently Nevada

190214-01 Bently Nevada Processor module

Product  Description：

• • • The 190214-01 is a rear-mounted module that occupies one full-height slot in the back of a 3500 series rack. Its primary role is to handle the signal conversion and power distribution necessary to drive a VGA display. It processes data from the 3500 system backplane and provides a standard VGA output for video, an RS-232 serial connection for touch screen input data, and a 24 VDC power output to run the monitor. By integrating this module, users can access real-time system event lists, alarm logs, and channel-specific data without needing a separate computer or network connection.

      Product Parameters

      • Model Identification: 3500/94M Normal I/O Module (Part Number 190214-01)

      • Input Voltage: Receives power directly from the 3500 rack backplane (typically 24 VDC nominal)

      • Power Consumption: Maximum of 4.6 to 5.0 Watts

      • Video Output: Standard VGA analog signal (Red, Green, Blue, and Sync)

      • Communication Interface: RS-232 port for touch screen controller data feedback

      • Indicators: OK LED (indicates module health) and TX/RX LED (indicates active communication status)

      • Operating Temperature: -20°C to +65°C (-4°F to +149°F)

      • Storage Temperature: -40°C to +85°C (-40°F to +185°F)

      • Humidity: Up to 95% non-condensing relative humidity

      • Dimensions: 241.3 mm height x 24.4 mm width x 99.1 mm depth (9.5 in x 0.96 in x 3.9 in)

      • Weight: Approximately 0.34 kg (0.75 lb)

      • Mounting Requirement: One full-height rear slot in the 3500 system rack

      Product Advantages

      • High-Speed Data Visualization: It provides rapid synchronization of vibration measurements, alarm summaries, and system status, ensuring operators have the most current information for machinery protection.

      • Compact Integration: The slim rear-slot design saves valuable front-panel space in the rack and simplifies the overall system architecture.

      • Rugged Industrial Build: Designed to operate in harsh industrial environments with a wide temperature range and high resistance to humidity and vibration.

      • Simplified Diagnostics: The onboard LED indicators provide immediate visual confirmation of the module’s operational status and communication activity, aiding in rapid troubleshooting.

      • Ease of Installation: As a "Normal" I/O module, it uses standard cabling for video and touch data, making it straightforward to connect to 10-inch or 15-inch Bently Nevada VGA monitors.

      Important Considerations and Precautions

      • Distance Limitations: Standard VGA and RS-232 cables are typically limited to approximately 6.1 meters (20 feet). For distances up to 305 meters (1,000 feet) or further, a Keyboard-Video-Monitor (KVM) extender must be used.

      • Hazardous Area Safety: While the module itself is often used in industrial racks, specific certifications (like ATEX or Class I, Div 2) must be verified for the entire installation. If using KVM extenders, note that some transmitters are not rated for hazardous areas and must be installed in safe zones.

      • Power Capacity: Ensure the 3500 rack power supply (3500/15) has enough overhead to support the additional 5W draw of the I/O module and the connected display unit.

      • Electrostatic Discharge (ESD): Like all Bently Nevada electronic components, the 190214-01 is sensitive to static. Always use an ESD wrist strap and follow proper grounding procedures during installation or handling.

      • Compatibility: This module is strictly intended for use with the 3500/94M VGA system; it is not compatible with older 3300 series racks or non-standard display systems.

      Product Applications

      The 190214-01 I/O module is utilized across various heavy industries that rely on the Bently Nevada 3500 system for machinery protection.

      • Power Generation: Monitoring turbines and generators to provide operators with immediate visual feedback on vibration levels and alarm statuses.

      • Oil and Gas: Integration within compression and pumping stations for real-time monitoring in remote or local control panels.

      • Petrochemical Processing: Displaying critical machine train data for large-scale rotating equipment such as centrifugal compressors.

      • Manufacturing and Mining: Providing a local "Quick View" of machine health for maintenance personnel directly on the factory floor or at the equipment skid.

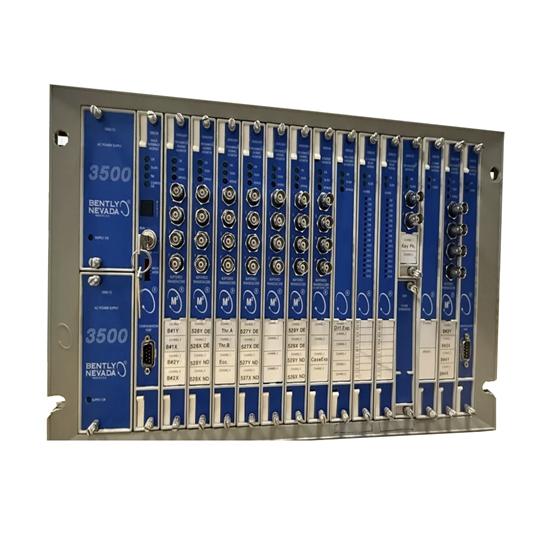

The structure and details of the product：
