146031-01 Bently Nevada

146031-01 Bently Nevada Processor module

Product  Description：

• • • The Bently Nevada 146031-01 is the Transient Data Interface (TDI) I/O Module designed specifically for the 3500/22M system within the Bently Nevada 3500 Machinery Protection System. This specific part number represents the I/O module that provides the physical communication interface for the 3500/22M TDI. It acts as the bridge between the internal rack data and external machinery management software, such as System 1.

      The 146031-01 is a rear-chassis module that works in tandem with the main 3500/22M module installed in the front of the rack. It combines the functionality of a standard Rack Interface Module (RIM) with the high-speed data collection capabilities of a communication processor. This allows for the continuous collection of both steady-state and transient dynamic waveform data, which is essential for advanced machinery diagnostics and predictive maintenance.

      Product Parameters

      Model Number: 3500/22M TDI I/O Module

      Part Number: 146031-01

      Communication Interface: 10Base-T or 100Base-TX Ethernet (Copper) using an RJ45 connector

      Protocol Support: Bently Nevada proprietary host protocol for communication with System 1 and Configuration Software

      Power Consumption: Typically $10.5 \text{ Watts}$ maximum when used with the main 3500/22M module

      Operating Temperature: $-30\text{°C}$ to $+65\text{°C}$ ($-22\text{°F}$ to $+149\text{°F}$)

      Storage Temperature: $-40\text{°C}$ to $+85\text{°C}$ ($-40\text{°F}$ to $+185\text{°F}$)

      Humidity: Up to 95% non-condensing

      OK Relay Contact Rating: Standard $5\text{A}$ at $24 \text{ VDC}$ or $120 \text{ VAC}$ (maximum)

      Weight: Approximately $0.20 \text{ kg}$ ($0.44 \text{ lb}$) for the I/O module alone

      Product Advantages

      High-Speed Data Acquisition: The module supports the capture of high-resolution transient data during machine startup and coastdown events, providing deep insights into mechanical behavior.

      Seamless System Integration: As an integral part of the 3500 series, it ensures perfect compatibility with all M-series monitors (e.g., 3500/40M, 3500/42M) and eliminates the need for external communication gateways.

      Enhanced Diagnostics: By enabling the transmission of dynamic waveform data to System 1 software, it allows engineers to perform detailed spectral analysis, orbit plots, and time-base analysis.

      Reliability and Redundancy: The 3500 platform is industry-renowned for its ruggedness and reliability in harsh industrial environments. For critical applications, the module supports Triple Modular Redundant (TMR) configurations when paired with the appropriate rack hardware.

      Simplified Wiring: The use of standard Ethernet (10Base-T/100Base-TX) simplifies the networking infrastructure required to connect the monitoring system to the plant network.

      Important Considerations and Precautions

      Slot Placement: The 3500/22M and its I/O module (146031-01) must always be installed in the first slot of the 3500 rack, immediately adjacent to the power supplies.

      Static Sensitivity: This electronic module contains components sensitive to electrostatic discharge (ESD). Always use a grounded wrist strap and follow proper ESD handling procedures during installation or maintenance.

      Power Disconnection: Ensure that the rack is powered down or follow "Hot Swap" guidelines if the specific rack configuration supports it, although it is generally safest to remove power before changing I/O modules to prevent electrical transients.

      Firmware Compatibility: Ensure that the firmware version of the main 3500/22M module is compatible with the configuration software and the versions of other monitor modules in the rack.

      Environment Protection: While the module is built for industrial use, it should be housed in a protective enclosure that meets the required IP rating for the specific installation site to prevent damage from moisture or corrosive gases.

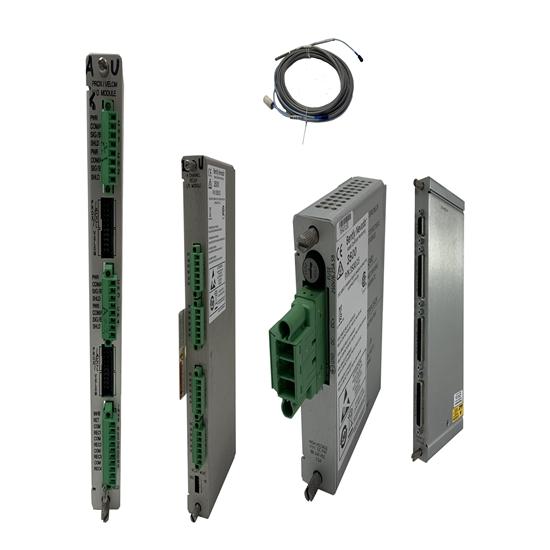

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
