YPHT31551-1D YASKAWA

YPHT31551-1D YASKAWA Servo Controller

Product  Description：

Yaskawa Servo Controllers, commonly known as SERVOPACKs within the Sigma series, are high-performance amplifiers designed to precisely control the torque, speed, and position of AC brushless servo motors. These controllers act as the power interface between the central machine controller and the motor, utilizing advanced feedback loops and high-speed digital signal processing to achieve industry-leading motion performance.

Product Parameters

The technical performance of a Yaskawa Servo Controller is defined by its power handling and feedback resolution:

• Input Power Supply: Supports a wide range of voltages including Single/Three-phase 200-240V AC and Three-phase 380-480V AC.

• Frequency Response: High-speed velocity loop frequency response, often reaching 3.1 kHz in the latest Sigma-7 models, allowing for rapid machine response.

• Feedback Support: Designed to work with high-resolution 24-bit absolute encoders, providing over 16 million pulses per revolution for nanometer-level precision.

• Communication Protocols: Integrated support for MECHATROLINK-III, MECHATROLINK-4, EtherCAT, and analog/pulse train interfaces.

• Overload Capacity: Typically capable of handling a peak current of 300 percent of the rated current for up to several seconds to accommodate rapid acceleration.

• Safety Integrated: Built-in Safe Torque Off (STO) functions compliant with SIL3/PLe standards for human-machine safety.

Product Advantages

Yaskawa controllers are recognized for their ease of use and superior motion algorithms:

• Vibration Suppression: Features advanced "Advanced Autotuning" and "Custom Tuning" functions that automatically compensate for machine resonance and friction, ensuring smooth motion even in high-inertia loads.

• Zero Settling Time: The specialized "Model Reference Adaptive Control" allows the motor to reach its target position with virtually no oscillation or settling delay.

• Energy Efficiency: Utilizes high-efficiency power modules and regenerative power capabilities, allowing captured braking energy to be reused or dissipated safely.

• Compact Footprint: The high-density power design allows for "side-by-side" mounting in control panels, significantly reducing the required space for multi-axis systems.

• Longevity and Reliability: Engineered for a design life of 10 years or more under standard industrial operating conditions, backed by extensive self-diagnostic tools.

Product Applications

These controllers are essential in industries where speed and precision cannot be compromised:

• Electronic Assembly: Used in high-speed surface mount technology (SMT) machines for the precise placement of microscopic components.

• CNC Machining Centers: Providing the high-torque and synchronized motion required for complex milling, lathing, and grinding operations.

• Robotics: Driving the joints of articulated industrial robots to ensure fluid, repeatable, and fast movement.

• Packaging Machinery: Managing high-speed vertical form-fill-seal (VFFS) machines and synchronized rotary cutters.

• Semiconductor Processing: Controlling the motion of silicon wafer stages where absolute stability and precision are required.

Important Precautions

To ensure safe operation and prevent damage to the SERVOPACK, the following guidelines must be followed:

• Proper Grounding: The SERVOPACK must be grounded to a resistance of 100 ohms or less. Improper grounding is the leading cause of signal noise and potential electric shock.

• Dynamic Brake Considerations: If the dynamic brake is used frequently for emergency stops, ensure the system allows enough time for the internal resistors to cool down to prevent overheating.

• Cable Shielding: Always use Yaskawa-specified shielded cables for encoder and power connections. The encoder cable must be separated from the power cables by at least 30cm to prevent interference.

• Polarity and Phase: Double-check the U, V, and W motor terminal connections. Reversing phases will not only cause the motor to run in reverse but can trigger an overcurrent alarm or damage the controller.

• Residual Voltage: After turning off the power, wait at least 5 minutes for the internal charge lamps to extinguish before touching terminals. The capacitors retain high-voltage energy for a significant period.

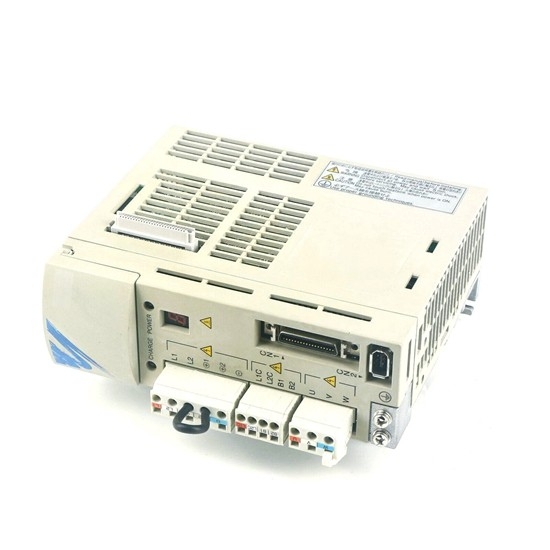

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
