YB161102-AH/4 DSDX110 ABB Bailey

YB161102-AH/4 DSDX110 ABB Bailey Output Module

Product  Description：

• • • ABB Bailey output modules are designed to provide electrical signals that control or indicate the status of field equipment. They receive digital or analog commands from the control system's CPU and convert them into appropriate electrical signals (e.g., voltage, current, or contact closures) to operate actuators, valves, indicators, or to send status information to other systems.



      Key Functions



      • Signal Conversion: Translating digital commands from the controller into physical output signals.

      • Actuation Control: Driving field devices such as relays, solenoids, indicators, and motor starters.

      • Status Indication: Providing feedback on the state of outputs or internal module status.

      • Isolation: Providing electrical isolation between the control system and field devices to protect sensitive electronics.

      • Fault Detection: Some modules may offer diagnostics to detect internal faults or issues with the connected field devices.



      Product Parameters (Typical)



      The specific parameters depend heavily on the module type and the control system it belongs to. Common parameters include:

      • Module Type: Digital Output (DO), Analog Output (AO), Relay Output (RO).

      • Number of Channels: The quantity of independent output points on a single module (e.g., 8, 16, 32 channels).

      • Output Signal Type:

        • Digital: Voltage levels (e.g., 24 VDC, 120 VAC), current sinking/sourcing capabilities.

        • Analog: Current loops (e.g., 4-20 mA, 0-20 mA), voltage signals (e.g., 0-10 V).

      • Output Current/Voltage Rating: The maximum current or voltage the module can safely switch or provide.

      • Output Load: The minimum or maximum impedance/resistance of the connected field device.

      • Response Time: The time taken for the module to react to a command from the CPU.

      • Isolation Voltage: The level of electrical separation between the control system backplane and the field terminals.

      • Power Consumption: The electrical power required by the module itself.

      • Operating Temperature Range: The ambient temperature within which the module can reliably operate.

      • Communication Interface: How the module communicates with the controller (e.g., via a backplane bus).



      Product Advantages



      • Reliability: Designed to meet stringent industrial standards for continuous operation in demanding environments.

      • Integration: Seamlessly integrates with ABB Bailey control system hardware and software platforms, simplifying system design and maintenance.

      • Flexibility: Available in various configurations to suit diverse application needs, from simple on/off control to precise analog signal generation.

      • Robustness: Built with durable components to withstand electrical noise, power fluctuations, and harsh environmental conditions common in industrial settings.

      • Safety Features: Often include built-in diagnostics and isolation to enhance operational safety and protect equipment.



      Precautions



      • Compatibility: Always ensure the output module is compatible with the specific ABB Bailey control system (e.g., CPU, backplane, firmware version) and intended application.

      • Power Supply: Verify that the system's power supply can meet the total power requirements of the module and connected devices.

      • Wiring: Follow the manufacturer's wiring diagrams precisely. Incorrect wiring can lead to module damage, field device malfunction, or safety hazards. Pay attention to terminal assignments and polarity.

      • Field Device Ratings: Ensure the output module's specifications (voltage, current, load) are appropriate for the connected field devices. Overloading can cause module failure.

      • Environmental Conditions: Install and operate modules within their specified temperature, humidity, and environmental protection (e.g., IP rating) limits.

      • ESD (Electrostatic Discharge): Handle modules with care. Use proper ESD precautions during installation and maintenance to prevent damage to sensitive electronic components.

      • Configuration: If the module requires configuration (e.g., setting analog output ranges), ensure it is done correctly using the appropriate ABB software and procedures.



      Product Applications



      ABB Bailey output modules are widely used in process industries and power generation for controlling and monitoring a vast array of field equipment:

      • Process Control:

        • Controlling valves (on/off or proportional) in chemical plants, refineries, and manufacturing.

        • Actuating solenoid valves for pneumatic or hydraulic control.

        • Switching motor starters for pumps, fans, and conveyors.

        • Operating alarms and indicators (lights, horns) to signal process status or faults.

        • Generating 4-20 mA signals to control variable speed drives or positioners.

      • Power Generation:

        • Controlling turbine governors.

        • Operating circuit breaker trip and close coils.

        • Actuating auxiliary system controls.

      • Building Automation:

        • Controlling HVAC dampers and valves.

        • Switching lighting circuits.

      • Safety Instrumented Systems (SIS): In some configurations, output modules may be part of safety loops to ensure critical processes are shut down safely.

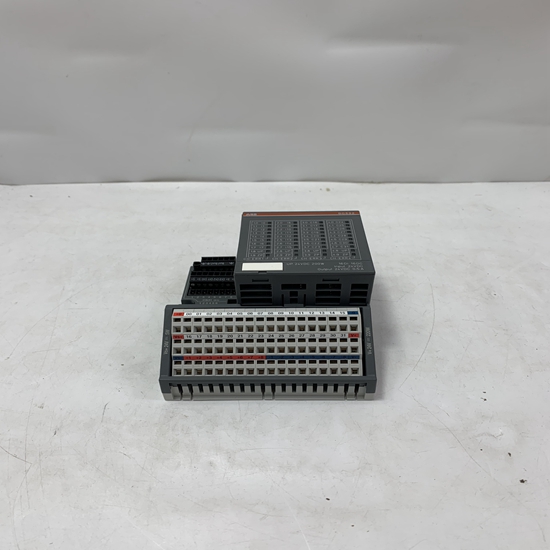

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
