XSA-V11151 SCHNEIDER

XSA-V11151 SCHNEIDER Output Module

Product  Description：

Schneider Electric Output Modules, integral components of the Modicon PLC and ePAC ranges (such as the Modicon M580, M340, and Quantum series), serve as the primary physical actuators interface for industrial automation networks. These modules receive digital logic commands or calculated analog setpoints from the central processing unit and convert them into electrical power signals. These signals directly actuate field equipment such as solenoid valves, motor starters, indicator lights, control valves, and variable frequency drives across industrial plant environments.

Product Parameters

The technical baseline of a Schneider Electric Output Module focuses on load management, channel density, and precise signal delivery:

• Channel Density: Available in high-density or flexible channel configurations, typically ranging from 8-channel and 16-channel analog cards to 32-channel or 64-channel discrete digital outputs.

• Output Types and Voltages: Discrete versions support 24V DC transistor outputs (sinking or sourcing) as well as 120/240V AC triac or relay contacts. Analog versions support standard 0-20mA, 4-20mA current loops, and 0-10V DC voltage outputs.

• Digital Load Capacity: High current carrying capacity, with individual channel ratings typically between 0.5A and 2A for solid-state outputs, and up to 5A per channel for heavy-duty mechanical relay modules.

• Analog Resolution: High-precision analog-to-digital conversion, typically delivering 15-bit to 16-bit resolution to ensure fine control over modulating valves and drive speeds.

• Isolation: Robust multi-zone isolation, providing up to 1500V AC or 2500V DC galvanic separation between output channels, field power, and the internal backplane logic.

• Response Time: Fast switching speeds with discrete solid-state turn-on/turn-off response times under 1 millisecond, and analog step response times under 5 milliseconds.

Product Advantages

Schneider Electric Output Modules offer distinct operational advantages engineered for plant uptime and high-precision control:

• Short-Circuit and Overload Protection: Solid-state digital outputs feature built-in electronic current limiting and thermal shutdown, automatically protecting internal traces and field wiring from short circuits.

• Advanced Field Diagnostics: Smart modules feature wire-break detection, load presence monitoring, and field power loss alerts, immediately reporting field-side fault locations to the control software.

• Live Module Replacement: Supports true hot-swappability, allowing technicians to replace damaged or worn output modules while the backplane remains energized without stopping the rest of the process.

• Fallback State Management: Configurable output fallback behavior (Hold Last Value or Force to Safe Zero State) ensures predictable and safe field behavior if backplane communication is lost.

• Conformal Coating: Standard or optional G3-class conformal coating shields internal circuitry against corrosive gases, high humidity, and industrial chemical vapors.

Product Applications

These output modules deliver execution commands across a wide spectrum of industrial and process applications:

• Process Control Loops: Sending 4-20mA positioning signals to modulating control valves, dampers, and heating elements in chemical processing plants.

• Motor and Motion Actuation: Energizing contactors, relays, and variable frequency drive start/stop inputs to run conveyor belts, pumps, and mixers.

• Indication and Alarm Signaling: Activating visual stack lights, audible sirens, and annunciator panels across factory floors to alert operators of system states.

• Solenoid Valve Control: Driving pneumatic solenoid manifolds to extend or retract cylinders in high-speed automated packaging lines.

• Power Switching: Regulating power distribution systems, lighting circuits, and industrial heaters via robust relay output channels.

Important Precautions

To ensure safe installation and maintain the operational lifespan of the hardware, the following precautions must be observed:

• Inductive Load Suppression: When driving inductive loads such as solenoid coils or mechanical relay coils, always install flyback diodes for DC loads or RC snubbers for AC loads across the external device to suppress voltage spikes and prevent contact arc damage.

• External Power Sourcing: Verify that field power supply units are properly fused and sized to handle the cumulative inrush current of all active output channels simultaneously.

• Maximum Current Limits: Do not exceed the maximum common terminal current limit specified for the module rack. Exceeding group current ratings will cause localized overheating and permanent thermal damage to the terminal block.

• Wiring Polarity and Grounding: Respect polarity markings for DC sourcing and sinking modules. Incorrect wiring can cause continuous un-switched output activation or damage internal switching transistors.

• Static Electricity Precautions: Always use an anti-static wrist strap connected to a verified ground when removing, inserting, or handling uninstalled output cards to prevent electrostatic discharge from puncturing sensitive semiconductors.

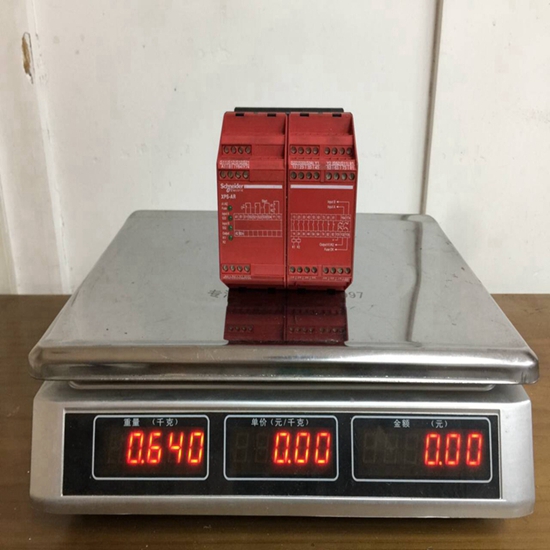

The structure and details of the product：
