XS4P18KP340 Telemecanique

XS4P18KP340 Telemecanique  Processor module

Product  Description：

The Telemecanique XS4P18KP340 is a specific model of OsiSense XS Inductive Proximity Sensor manufactured by Schneider Electric. This sensor is designed for non-contact detection of metal objects at short ranges in automated systems.

Product Specifications

• Sensor Type: Inductive proximity sensor

• Series: OsiSense XS

• Model: XS4

• Design: Cylindrical, M18 size (18 mm diameter)

• Body Material: Plastic (often PBT/PPS for robust performance)

• Detection Face: Frontal

• Output Type: DC 3-wire

• Output Function: PNP (Positive-Negative-Positive)

• Output State: NO (Normally Open)

• Nominal Sensing Distance ($S_n$): $8 \text{ mm}$

• Connection Type: Pre-cabled (fixed cable)

• Cable Length: Typically $2 \text{ m}$

• Switching Frequency: Up to $1000 \text{ Hz}$ (depending on operating voltage and temperature)

• Operating Voltage Range ($U_B$): 12 to $24 \text{ VDC}$ (typical industrial low voltage)

• IP Degree of Protection: IP67 (Protected against dust ingress and the effects of temporary immersion in water).

• Target Material: Ferrous metals (will sense non-ferrous metals like aluminum and copper but with a reduction factor).

Product Advantages

• High Durability: The plastic M18 body is resistant to corrosion and many common industrial chemicals, making it suitable for wet or harsh environments.

• Non-Contact Detection: Since there is no physical contact with the target, the sensor and the target object avoid wear and tear, leading to a long mechanical life.

• High Switching Frequency: The fast switching speed allows the sensor to reliably detect small or rapidly moving targets, making it suitable for high-speed machinery.

• IP67 Rating: The strong ingress protection rating ensures reliable operation even when subjected to washing, temporary submersion, or high-humidity conditions.

• Standard Industrial Design: The M18 cylindrical format is an industry standard, facilitating easy mounting and replacement in existing installations.

Important Considerations (Precautions)

• Sensing Distance: The maximum sensing distance ($8 \text{ mm}$) is only for ferrous metals (mild steel). When sensing non-ferrous metals like aluminum or copper, the effective sensing distance will be shorter (reduced factor).

• Mounting: Ensure that the sensor is mounted correctly, respecting the minimum required separation distance from surrounding metal objects (side-by-side and opposite-face mounting distances) to prevent interference and false triggering.

• Power Supply: Must be connected to a stable, regulated 12 to $24 \text{ VDC}$ power source, and the wiring must respect the PNP output configuration (three wires: positive, negative, and signal output).

• Magnetic Fields: Avoid mounting the sensor near strong magnetic fields, as this can affect the magnetic field generated by the sensor and lead to incorrect operation.

• Load Current: Do not exceed the maximum specified load current for the PNP output, as this can damage the sensor's internal electronics.

Product Applications

The XS4P18KP340 sensor is widely used across various industries for presence and position detection tasks.

• Conveyor Systems: Detecting the presence or position of packages, trays, or components on an assembly line.

• Machine Tools: Detecting the position of moving parts, such as clamps, slides, or tool changers.

• Packaging Machinery: Counting products, verifying positions of bottles, or detecting the presence of caps/lids.

• Material Handling: Used in automated storage and retrieval systems (AS/RS) and elevators to detect the approach or endpoint of moving carriers.

• General Industrial Automation: Whenever a reliable, non-contact detection of a metal part is required, especially in applications where washdown or high humidity is a factor due to its IP67 rating.

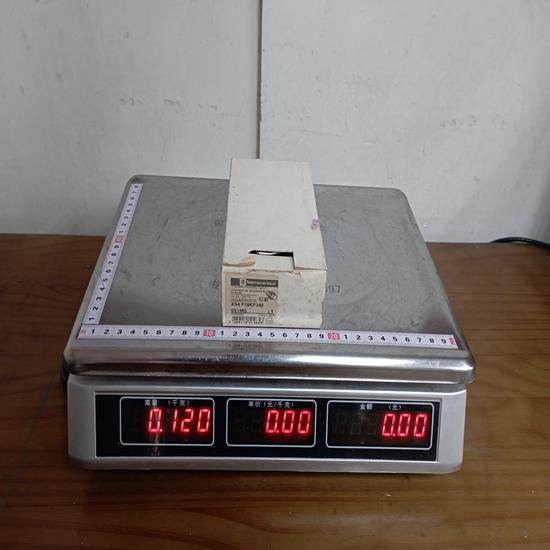

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
