VIA1003C02A0000 SCHNEIDER

VIA1003C02A0000 SCHNEIDER Power module

Product  Description：

The VIA1003C02A0000 is an integrated solution that combines power electronics with sophisticated software algorithms. It serves as the primary controller for asynchronous and synchronous motors, allowing for precise speed and torque regulation. The unit is designed with a "Process" mindset, meaning it does not just control the motor, but also monitors the health of the entire system, including pumps, fans, or compressors, and provides real-time data to the supervisory control layer.

Product Parameters

The technical profile of this unit is centered around industrial efficiency and robust power delivery:

• Motor Power: Typically rated for heavy-duty industrial loads, often in the range of $1 \text{ to } 2.2 \text{ kW}$ depending on the specific voltage class and frame size.

• Input Voltage: Designed for three-phase power systems, generally supporting a wide range such as $380 \text{ V}$ to $480 \text{ V AC}$.

• Control Principle: Utilizes Pulse Width Modulation (PWM) with selectable profiles including Volts/Hertz ratio, Sensorless Vector Control, and Permanent Magnet motor control.

• Communication: Embedded Dual Port EtherNet/IP and Modbus TCP for seamless integration into industrial networks.

• I/O Capacity: Features multiple analog inputs/outputs and programmable digital inputs/outputs for local logic control.

• Protection Rating: Standard units are typically rated IP21 or IP55, though the specific housing configuration determines the final environmental resistance.

• Operating Temperature: Rated for operation up to $50\text{°C}$ without derating.

Product Advantages

The Schneider Process drive offers several distinct advantages over standard general-purpose drives. Its Integrated Energy Management allows users to monitor energy consumption with an accuracy of within $5\%$, facilitating better cost tracking. The Embedded Intelligence includes specific functions for pumps, such as anti-clogging and pump curve monitoring, which reduces maintenance and prevents dry-run failures.

Another major benefit is the Serviceability. The drive features a modular design that allows for easy replacement of fans and power components, significantly reducing Mean Time to Repair (MTTR). Furthermore, the Cybersecurity features are compliant with Achilles Level 2, ensuring that the drive remains a secure node within the factory network.

Important Considerations and Precautions

When deploying the VIA1003C02A0000, technicians must prioritize safety and correct installation. Electromagnetic Compatibility (EMC) is a critical factor; ensure that shielded motor cables are used and properly grounded at both ends to prevent interference with sensitive sensors.

Harmonic Mitigation should be evaluated, as large drives can introduce distortion into the power grid; ensure the line reactor or DC choke is correctly installed. Cooling and Clearance are essential; the drive must be mounted vertically with at least $100 \text{ mm}$ of clearance above and below to allow for adequate airflow. Lastly, always perform a Dielectric Test or "Megger" test on the motor cables before connecting them to the drive to avoid blowing the power transistors due to a short circuit to ground.

Product Applications

The versatility of the VIA1003C02A0000 makes it suitable for a wide array of industrial sectors:

• Water and Wastewater: Used for high-efficiency pumping stations, aeration blowers, and sludge treatment where flow control and energy savings are paramount.

• Oil and Gas: Controlling centrifugal pumps and compressors in midstream and downstream operations, often utilizing its advanced torque control for heavy-start loads.

• Mining and Minerals: Managing conveyor belts and crushers where high starting torque and robust environmental protection are required.

• Food and Beverage: Driving mixers, agitators, and refrigeration fans, where hygiene and precise speed control for process consistency are needed.

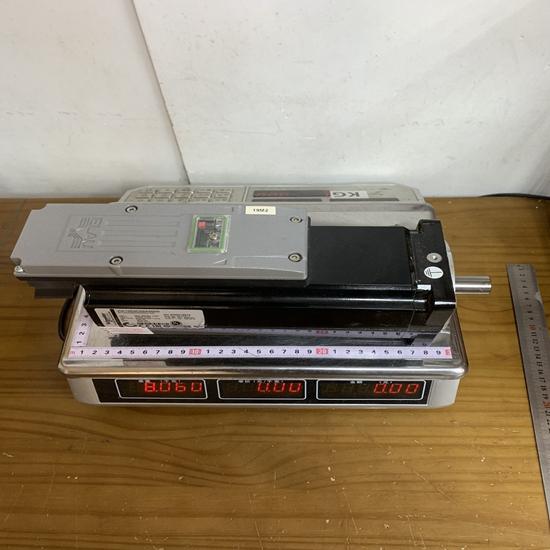

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
