TXM1.8D SIEMENS

TXM1.8D  SIEMENS Basis unit

Product  Description：

The TXM1.8D is a modular I/O extension component that connects to a PXC or PXM series controller via the island bus. This module is characterized by its eight individual digital inputs, each equipped with a dedicated green LED indicator on the front panel to provide immediate visual feedback of the logical state of the connected device. Its compact design and DIN rail mounting capability make it an ideal choice for high-density control cabinets in smart building applications.

Product Parameters

The technical specifications of the TXM1.8D ensure reliability across various building management scenarios:

• Number of Digital Inputs: 8 independent channels.

• Input Types: Supports potential-free (dry) contacts or pulse counting functions.

• Pulse Frequency: Capable of handling pulse inputs up to a maximum frequency of $20 \text{ Hz}$.

• Operating Voltage: $24 \text{ VDC}$ supplied via the island bus.

• Power Consumption: Approximately $1.1 \text{ W}$ maximum.

• Protection Class: IP20 (according to EN 60529).

• Connection Terminals: Plug-in screw terminals for wires up to $2.5 \text{ mm}^2$.

• Address Connection: Features a modular address plug for easy identification within the bus system.

Product Advantages

One of the primary advantages of the TXM1.8D is its Seamless Integration. As part of the Desigo system, it requires minimal configuration to communicate with central controllers. The Local Status Monitoring via LEDs allows maintenance personnel to troubleshoot issues at a glance without needing to access the software interface.

The module is also highly Space-Efficient, providing eight channels in a slim housing, which reduces the overall footprint of the control panel. Additionally, the Hot-Swappable Capability allows for the replacement of the electronics module without disturbing the permanent field wiring, significantly reducing system downtime during maintenance or upgrades.

Important Considerations and Precautions

When installing or maintaining the TXM1.8D, several safety and technical guidelines must be followed. First, the Bus Loading must be calculated carefully; ensure that the total power consumption of all TX-I/O modules does not exceed the capacity of the power supply or the controller's bus limits.

Second, the Wiring Length for digital inputs should not exceed $300 \text{ meters}$ (approximately $1000 \text{ feet}$) to avoid signal degradation or interference. Third, always ensure that the Address Plug is correctly inserted before powering the system, as the module will not be recognized by the controller without a unique address.

Finally, since the module is rated IP20, it must be installed in a clean, dry environment, typically inside a locked control cabinet, to prevent damage from dust or moisture. Never apply external voltage to the digital inputs, as they are designed for potential-free contacts only.

Product Applications

The Siemens TXM1.8D is widely used in Building Management Systems (BMS) for a variety of monitoring tasks:

• HVAC Systems: Monitoring the status of fans, pumps, and motors (on/off feedback).

• Fault Monitoring: Collecting fault signals from boilers, chillers, or air handling units.

• Energy Metering: Counting pulses from water, gas, or electricity meters to track utility consumption.

• Security and Safety: Integrating feedback from fire alarm panels, smoke detectors, or security door contacts.

• Lighting Control: Receiving inputs from manual override switches or motion sensors to trigger lighting logic.

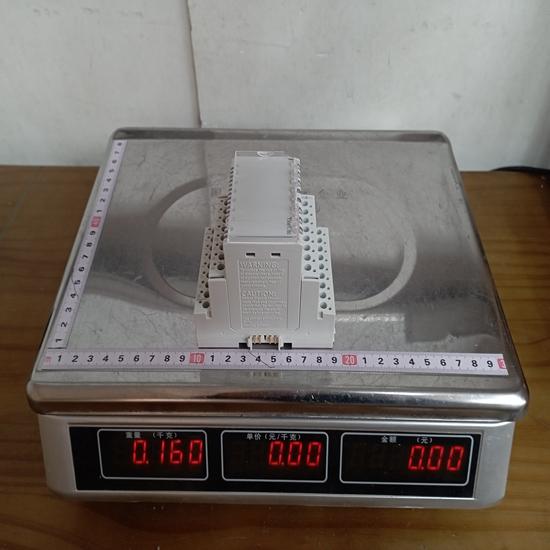

The structure and details of the product：
