TSXDEY64T2K SCHNEIDER

TSXDEY64T2K SCHNEIDER Digital Input Module

Product  Description：

Schneider Electric Digital Input Modules, particularly those within the Modicon X80 and Quantum platforms, are high-density discrete signal acquisition units designed for industrial programmable automation controllers. These modules act as the sensory interface of the automation system, converting binary ON/OFF signals from field devices into logic-level data that the central processing unit can execute. They are engineered to provide exceptional reliability, isolation, and signal conditioning in highly demanding electrical environments.

Product Parameters

The technical composition of Schneider Electric Digital Input modules is defined by high channel capacity and robust electrical parameters:

• Channel Configuration: Available in varying structural densities, typically ranging from 16-channel, 32-channel, to ultra-high-density 64-channel modules.

• Input Voltage Ratings: Supports multiple standard industrial field voltages, including 24V DC, 48V DC, 120V AC, and 230V AC variations.

• Threshold Detection: Precise logic switching thresholds, ensuring definite state transitions with typical ON voltage ratings above 11V DC and OFF ratings below 5V DC for 24V systems.

• Input Current and Impedance: Configured with a low current draw per channel, usually around 3mA to 5mA, minimizing the thermal load inside the enclosure.

• Debounce Filtering: Configurable digital hardware filtering, adjustable from 0.1 milliseconds to 20 milliseconds, allowing operators to tune out physical contact bounce.

• Dielectric Isolation: High-grade galvanic isolation up to 1500V AC or 2500V AC between the external field terminals and the internal bus logic.

Product Advantages

Schneider Electric's digital input modules provide distinct field benefits that maximize operational availability and diagnostic depth:

• Hot-Swappability: Built on advanced backplane topology that allows modules to be removed and inserted while the system is fully powered, preventing unnecessary process downtime.

• Advanced Channel Diagnostics: High-end modules feature broken wire detection and short-circuit monitoring per channel, allowing maintenance teams to instantly pinpoint field faults.

• Time-Stamping Capabilities: Specialized modules support internal Sequence of Events recording, appending millisecond-precise timestamps to signal changes at the source.

• Conformal Coating Availability: Available with robust chemical treatment options that shield the underlying circuitry from corrosive gases, moisture, and dust accumulation.

• Unified Software Integration: Fully integrated into the EcoStruxure Control Expert programming environment, allowing for rapid I/O mapping, forced variables, and diagnostic monitoring without custom logic blocks.

Product Applications

These modules provide reliable status tracking for automated processes and electrical equipment across various sectors:

• Factory Automation: Capturing real-time state data from proximity sensors, photoelectric eyes, and mechanical limit switches on high-speed assembly lines.

• Material Handling: Monitoring position sensors, weight sensors, and safety interlocks along extensive industrial conveyor systems and automated sorting grids.

• Water Infrastructure: Interfacing with float switches, pressure switches, and dry-run protection sensors across widespread pumping stations.

• Infrastructure Management: Tracking ventilation fan statuses, damper positions, and emergency stop buttons within public transport tunnels and large commercial buildings.

• Process Industries: Integrating auxiliary status signals from motor control center breakers, valve limit switches, and level indicators into the central control system.

Important Precautions

To maintain safe operation and protect the internal circuitry of the digital input system, the following practices must be observed:

• Sensor Power Sourcing: Ensure that the common line configuration (sinking or sourcing) matches the output type of the field sensor. Incorrect wiring will result in a failure to read the input state.

• Wetting Voltage Validation: Verify that the voltage source used to power the field loops strictly matches the module's rated input window to prevent overvoltage damage or failure to trigger.

• Cable Shielding: Route all low-voltage input wires inside dedicated wire ducts away from heavy motor cables and high-power conductors to avoid capacitive noise injection.

• Terminal Block Engagement: Ensure the removable terminal blocks are securely latched and tightened to the specific torque rating to avoid intermittent wiring faults caused by structural vibration.

• Unused Channel Management: Properly isolate any spare or unused channels on high-density connectors to prevent accidental short-circuits against the cabinet housing or nearby ground points.

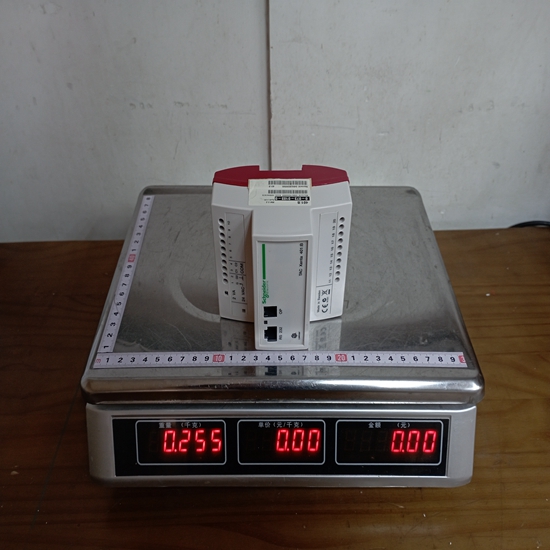

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
