TRICONEX MP 3101 I / O module
Product Description：
TRICONEX I/O (Input/Output) modules are fundamental components of Triconex safety instrumented systems (SIS), renowned for their exceptional reliability and fault tolerance in critical industrial applications. These modules serve as the interface between the Triconex safety controller (like the Tricon or Tricon CX) and field devices such as sensors, actuators, and other control systems. They are designed with Triple Modular Redundancy (TMR) architecture, meaning that three independent, identical channels process each signal. This redundancy ensures that the system can tolerate multiple faults without interrupting operation, making them crucial for safeguarding personnel, assets, and the environment in high-hazard industries.
Key Functions
- Input Modules: Receive signals from field devices (e.g., pressure sensors, temperature probes, emergency stop buttons). They validate these signals through a voting mechanism (2-out-of-3 voting) to eliminate false readings from a single faulty input channel.
- Output Modules: Send control signals to field devices (e.g., valves, pumps, motors) to initiate actions. These modules also employ voting logic and often include diagnostics (like line and load fault detection) to ensure the output signal is correctly delivered and the field device is functioning as expected.
- Fault Tolerance: The inherent TMR design allows each module to tolerate up to two faults without process disruption, ensuring continuous safe operation.
- Diagnostic Capabilities: Built-in diagnostics continuously monitor the health of the I/O modules and associated field wiring, identifying potential failures early.
- Online Replacement: Many Triconex I/O modules can be replaced online (hot-swapped) without shutting down the process, minimizing downtime and maintaining system availability.
Product Parameters (Typical)
Parameters vary significantly depending on the specific type of I/O module (Digital Input, Digital Output, Analog Input, Analog Output, Universal I/O).
- Type of Input/Output: Digital (Discrete) Input, Digital (Discrete) Output, Analog Input (e.g., 4-20mA, HART), Analog Output (e.g., 4-20mA, HART), Universal I/O (configurable as DI, DO, AI, AO).
- Number of Channels/Points: Typically ranging from 8 to 64 channels per module.
- Voltage Ratings: Common for digital inputs/outputs are 24 VDC, 48 VDC, 115 VAC, 230 VAC. Analog signals are typically current or voltage based.
- Current Ratings: For digital outputs, typical current ratings per point.
- Isolation: Often provides optical isolation between field devices and the internal control circuitry for noise immunity and safety.
- Fault Coverage: Level of diagnostics and fault detection (e.g., line and load fault detection for outputs, sensor open/short detection for inputs).
- Response Time: The speed at which the module can process signals and respond (e.g., typically very fast for safety applications).
- Safety Integrity Level (SIL) Rating: Certified to international safety standards, most Triconex I/O modules are rated up to SIL 3.
- Hazardous Location Ratings: Many modules have certifications for use in hazardous areas (e.g., Class I, Division 2).
Product Advantages
- Unparalleled Safety: Triple Modular Redundancy (TMR) architecture provides the highest level of fault tolerance, minimizing the risk of unsafe incidents and ensuring continuous safe operation even under multiple fault conditions.
- High Availability: The ability to tolerate faults and perform online module replacement without process disruption maximizes plant uptime and reduces operational risk.
- Built-in Diagnostics: Extensive self-diagnostics reduce the need for manual testing and provide early detection of potential issues, simplifying maintenance.
- Reduced Engineering and Maintenance: Standardized, highly fault-tolerant design and online replacement capabilities simplify system design, commissioning, and ongoing maintenance.
- Cyber Resilience: Designed with cybersecurity in mind, with certified hardware and software to protect against cyber threats.
- Scalability and Flexibility: A wide range of I/O types and channel counts allows for scalable solutions from small to very large and complex safety systems. Universal I/O modules further enhance flexibility by allowing individual points to be configured for different I/O types.
Precautions
- ESD Protection: Always handle I/O modules with proper electrostatic discharge (ESD) precautions to prevent damage to sensitive electronic components.
- Wiring and Installation: Adhere strictly to installation guidelines, including proper grounding, shielding, and wire sizing, to ensure signal integrity and prevent electrical interference.
- Power Supply: Ensure the power supply to the I/O modules is stable, within specified voltage ranges, and adequately sized for the connected loads.
- Environmental Conditions: Install and operate modules within their specified temperature, humidity, and vibration limits to ensure long-term reliability.
- Firmware and Software Compatibility: Ensure the I/O modules' firmware is compatible with the main processor's software and the system's overall configuration.
- Proper Configuration: Thoroughly configure each I/O point according to the specific application requirements, especially when using Universal I/O modules.
Product Applications
TRICONEX I/O modules are essential for mission-critical industrial applications where safety, reliability, and continuous operation are paramount. They are widely used in:
- Emergency Shutdown Systems (ESD): Protecting personnel, assets, and the environment by bringing a process to a safe state during hazardous conditions.
- Burner Management Systems (BMS): Ensuring the safe operation of boilers, furnaces, and fired heaters by managing ignition, flame supervision, and shutdown sequences.
- Fire and Gas (F&G) Systems: Detecting and mitigating fire and gas hazards in industrial facilities.
- High-Integrity Pressure Protection Systems (HIPPS): Preventing overpressure situations in pipelines and process vessels.
- Turbomachinery Control: Safeguarding critical rotating equipment like turbines and compressors.
- Process Safety Management: As a vital layer of protection in hazardous process industries such as oil and gas, chemical, refining, and power generation.
Typical Applications
- In an oil refinery: A Triconex system with DI modules monitoring emergency stop buttons and gas detectors, and DO modules controlling emergency shutdown valves.
- In a power plant: Using AI modules to monitor critical temperatures and pressures in a boiler, and DO modules to safely shut down burners if abnormal conditions are detected.
- In a chemical plant: Implementing a HIPPS using Triconex I/O modules to detect overpressure and activate high-integrity pressure relief valves.

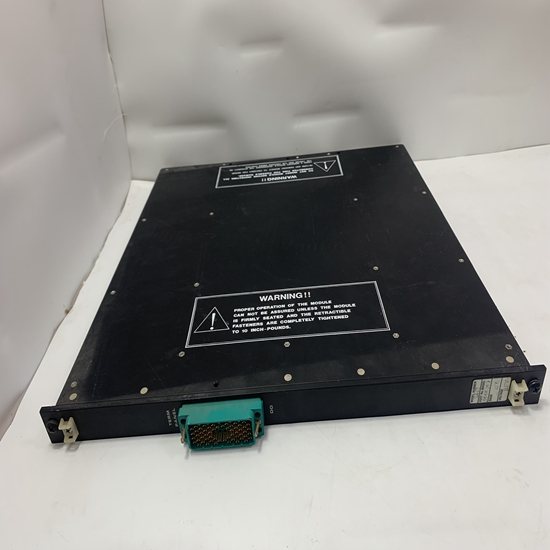

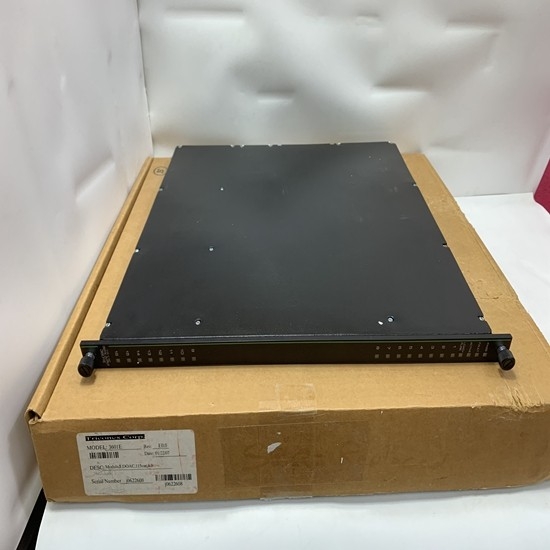

The structure and details of the product：
