TRICONEX DO3401 Interface Module
Product Description：
TRICONEX interface modules are critical components within Triconex Safety Instrumented Systems (SIS), designed to ensure safe and reliable operation in high-hazard industrial environments. These modules act as bridges, facilitating seamless communication and data exchange between the core Triconex controller (e.g., Tricon or Tricon CX) and external devices, field instruments, other control systems, or network infrastructures. They are specifically engineered to maintain the high levels of safety integrity (SIL) for which Triconex systems are renowned.
Key Functions
TRICONEX offers various types of interface modules, each serving a specific purpose:
- Communication Interface Modules (e.g., TCM - Tricon Communication Module, CIM):
- Enable communication with other PLCs, Distributed Control Systems (DCS), Human-Machine Interfaces (HMIs), and plant networks.
- Support various industrial communication protocols (e.g., Modbus, Ethernet/IP, OPC, TriStation protocols).
- Facilitate data exchange for monitoring, control, and diagnostics.
- May include multiple serial and network ports (e.g., copper Ethernet, fiber optic Ethernet).
- I/O Bus Interface Modules (e.g., IMFF):
- Provide the interface between the main processor and the various input/output (I/O) modules (digital input, analog input, digital output, analog output).
- Often used in I/O expansion chassis to extend the I/O capabilities of the Triconex system.
- Ensure reliable and secure transmission of I/O signals.
- Process Interface (PI) Modules:
- Specifically designed to interface with field sensors and devices, processing their signals for the safety system.
- May handle various signal types (e.g., differential, magnetic, open-collector).
Product Parameters (Typical)
Parameters vary significantly depending on the specific interface module type and model. Here are some typical examples:
- Communication Protocols: Ethernet/IP, Modbus TCP/IP, Modbus RTU, TriStation, ICMP, SNTP, TSAA (supports IP multicast), Trimble GPS, Embedded OPC Server.
- Number of Ports: Varies widely (e.g., 2 network ports, 4 serial ports for communication modules).
- Port Isolation: Often includes electrical isolation (e.g., 500 VDC) for enhanced safety and noise immunity.
- Data Rates: (e.g., 10/100 Mbps for Ethernet, up to 115.2 Kbps per serial port).
- Safety Integrity Level (SIL) Certification: Many modules are certified for high SIL levels (e.g., SIL 3), indicating their suitability for critical safety applications.
- Redundancy Support: Many Triconex interface modules are designed to support redundancy features, contributing to the overall fault tolerance of the SIS.
- Operating Temperature: Typically designed for harsh industrial environments, with wide operating temperature ranges.
- Mounting Type: Often rack-mounted to fit into Triconex mainframes or expansion chassis.
- Dimensions and Weight: Specific physical characteristics for integration into control cabinets.
Product Advantages
- High Safety Integrity: Designed and certified for safety-critical applications (e.g., SIL 3), ensuring the protection of personnel, assets, and the environment.
- Fault Tolerance: Built upon Triple Modular Redundancy (TMR) architecture (in the core Tricon system), with many interface modules also contributing to fault tolerance through redundancy features and extensive diagnostics. This allows for continuous operation even in the event of a single-point failure.
- Reliability and Availability: Engineered for continuous availability and reliability, with features like on-line replacement of failed modules to minimize downtime.
- Robustness: Designed to withstand harsh industrial environments.
- Seamless Integration: Designed to integrate seamlessly within the Triconex ecosystem, simplifying system design and deployment.
- Comprehensive Diagnostics: Built-in diagnostics monitor module health, detect faults, and help ensure reliable operation.
- Flexibility: Supports a wide array of communication protocols and configurations, allowing for integration with diverse plant architectures.
Precautions
- Compatibility: Always verify compatibility with the specific Triconex system version (e.g., Tricon v10.0 and later for some TCMs) and other modules in the system.
- Installation Guidelines: Strictly adhere to the installation directives and safety considerations provided in the official Triconex documentation. This includes proper grounding, wiring, and mounting.
- Environmental Conditions: Ensure the operating environment (temperature, humidity, vibration) remains within the specified limits for the module.
- ESD Protection: Handle modules with appropriate electrostatic discharge (ESD) precautions to prevent damage to sensitive electronic components.
- Power Isolation: Be aware of power isolation requirements and ensure proper power supply and wiring to prevent electrical hazards and interference.
- Hazardous Area Compliance: For installation in hazardous (classified) locations (e.g., Class 1, Division 2 or Zone 2), ensure the module and its enclosure meet the relevant safety standards (e.g., IEC 60079-0, IEC 60079-15) and wiring methods. Crucially, do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
- Firmware and Software: Ensure that the module's firmware and associated system software are up-to-date and compatible.
Product Applications
TRICONEX interface modules are integral to Safety Instrumented Systems (SIS) in industries where the highest levels of safety and availability are paramount. Key applications include:
- Emergency Shutdown Systems (ESD/SIS): Providing the interface for sensors and actuators that initiate safety shutdowns in critical processes (e.g., oil and gas, chemical, power generation).
- Fire and Gas Detection Systems (F&G): Connecting to fire and gas detectors and managing communication for alarm and suppression systems.
- High Integrity Pressure Protection Systems (HIPPS): Used in applications requiring very fast and reliable shutdown of over-pressurized conditions.
- Burner Management Systems (BMS): Ensuring the safe and controlled operation of industrial burners and furnaces.
- Turbine Control and Protection: Monitoring and controlling critical parameters for safe turbine operation.
- Pipeline Management: Overseeing critical functions in pipeline networks for safe transport of hazardous materials.
- Nuclear Power Plants: Providing reliable safety control for critical processes.
Typical Examples:
- A Tricon Communication Module (TCM) integrating a Triconex SIS with a plant-wide DCS for real-time process monitoring and data archiving.
- An I/O Bus Interface Module (IMFF) extending the reach of the Triconex controller to I/O modules located in remote I/O chassis, managing critical field signals for safety functions.
- A Process Interface (PI) module converting high-frequency pulse signals from a turbine speed sensor into a format usable by the Triconex controller for overspeed protection.

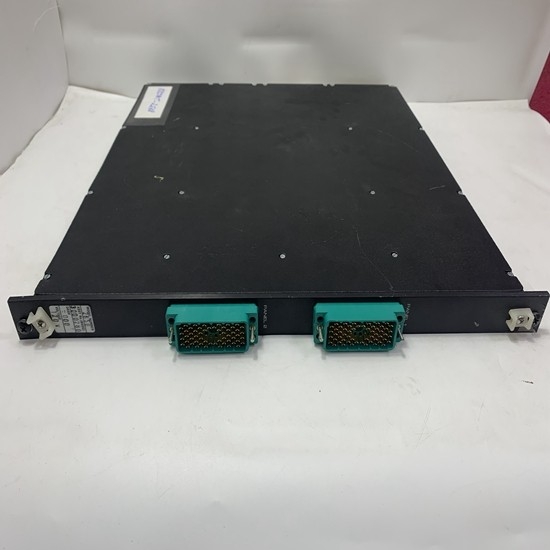

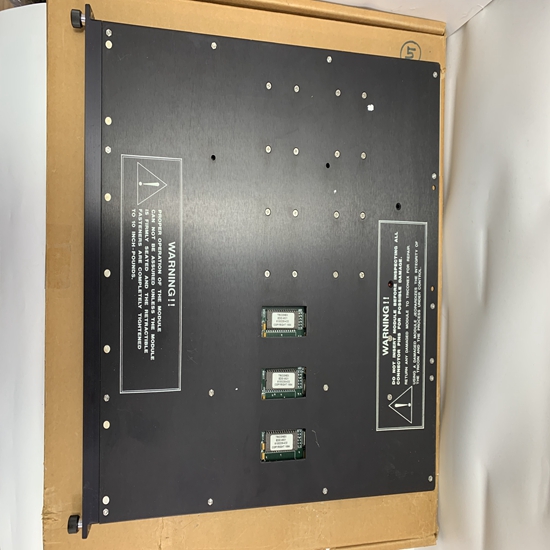

The structure and details of the product：
