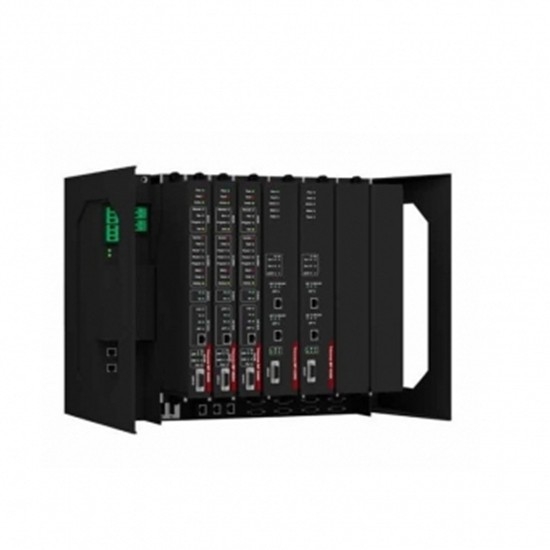

TRICONEX 9761-210 Filter Modules
Product Description：
TRICONEX programmable logic controller (PLC) modules, especially input modules, are designed with built-in filtering capabilities to ensure the integrity of signals from field devices. These integrated filters protect against electrical noise, transient signals, and other disturbances that could lead to false readings or erroneous control actions. This robust signal conditioning is critical for maintaining the high level of safety and reliability for which TRICONEX systems are renowned.
Key Functions (of integrated filtering)
- Noise Rejection: Attenuates unwanted electrical noise (e.g., electromagnetic interference (EMI), radio frequency interference (RFI)) from field wiring, preventing it from corrupting input signals.
- Signal Debouncing: For digital inputs, filtering helps to "debounce" mechanical contacts, preventing multiple signal transitions from a single physical event.
- Transient Suppression: Protects against voltage spikes and other transient disturbances that could damage sensitive electronics or cause momentary false readings.
- Signal Conditioning: Ensures that input signals are clean, stable, and within the expected range for accurate processing by the PLC.
- Diagnostic Support: The intelligent I/O modules within TRICONEX systems often use filtering and signal processing to also diagnose hardware faults on the module and field wiring problems.
Product Parameters (Relevant to filtering within modules - Typical)
While dedicated "filter modules" are not a standard offering, the filtering characteristics are inherent to relevant I/O modules:
- Input Impedance: The resistance of the input circuit, influencing how signals are received.
- Noise Rejection Ratio (e.g., Common Mode Rejection Ratio - CMRR): A measure of the module's ability to reject common-mode noise.
- Filter Type: Often digital filters implemented in the module's microprocessor, sometimes combined with analog front-end filtering.
- Response Time/Sampling Rate: The speed at which the module can acquire and process signals, impacting the effectiveness of filtering for dynamic signals.
- Voltage/Current Ranges: The operational ranges for input signals, which the filtering is designed to operate within.
Product Advantages (of integrated filtering)
- Enhanced System Safety: By ensuring clean and accurate input signals, filtering reduces the likelihood of spurious trips or failures in safety-critical applications.
- Increased Reliability: Minimizes the impact of noisy industrial environments on system performance, leading to greater uptime and fewer unexpected shutdowns.
- Improved Accuracy: Provides more precise measurements and control by eliminating signal distortions.
- Reduced Troubleshooting: Built-in diagnostics, aided by clean signals, help in quickly identifying and resolving field wiring or sensor issues.
- Simplified Design: Integrates signal conditioning directly into the I/O modules, reducing the need for external filtering components and simplifying system design.
- Fault Tolerance Support: In TRICONEX's Triple Modular Redundant (TMR) architecture, each channel independently executes control programs and filters inputs, contributing to the overall fault tolerance. If one channel's filtering is compromised, the voting mechanism ensures the correct signal is used.
Precautions (General for TRICONEX modules and systems)
- Proper Grounding and Shielding: While modules have internal filtering, proper grounding and shielding of field wiring are still crucial to minimize external noise sources.
- Environmental Considerations: Ensure modules are operated within specified temperature, humidity, and vibration limits to maintain optimal performance of all internal components, including filters.
- Module Compatibility: Always ensure that any I/O module is compatible with the specific TRICONEX chassis and main processors.
- Calibration and Configuration: For analog inputs, ensure proper calibration and configuration of input ranges and any software-selectable filter settings.
- Qualified Personnel: Installation, maintenance, and troubleshooting should only be performed by qualified personnel familiar with TRICONEX systems and industrial safety practices.
Product Applications
TRICONEX systems, with their inherently filtered I/O modules, are deployed in critical industrial applications where safety, reliability, and continuous operation are paramount. These include:
- Emergency Shutdown Systems (ESD): Preventing hazardous situations by automatically shutting down processes in the event of an anomaly.
- Fire and Gas Systems (F&G): Detecting fire and gas hazards and initiating protective actions.
- Burner Management Systems (BMS): Ensuring safe and reliable operation of industrial burners and furnaces.
- High-Integrity Pressure Protection Systems (HIPPS): Preventing over-pressurization of pipelines and vessels.
- Turbomachinery Control (TMC): Protecting and controlling critical rotating equipment like turbines and compressors.
- Nuclear Power Plants: Providing highly reliable control and safety functions.
- Oil and Gas (Upstream, Midstream, Downstream): From wellhead control to refinery operations, ensuring safety and uptime.
- Chemical and Petrochemical Plants: Managing complex and potentially hazardous chemical processes.
- Power Generation: Ensuring safe operation of power plants, including conventional and renewable energy facilities.
The structure and details of the product：
Our services：
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Warranty: one year
