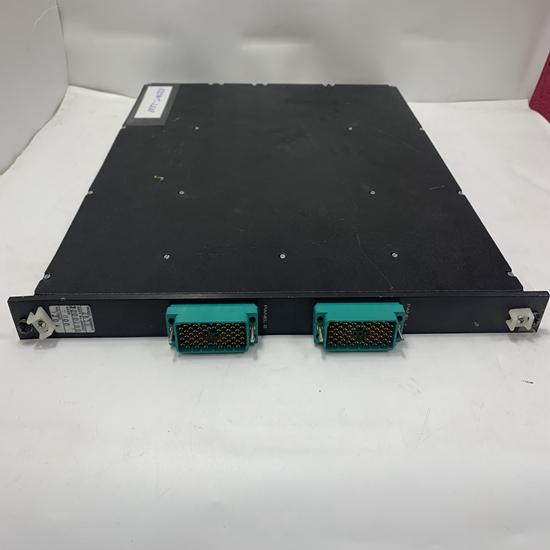

TRICONEX 2658-74000110-010 Relay Input Module
Product Description：
TRICONEX Relay Input Modules are typically high-integrity digital input modules that connect to field devices such as pushbuttons, limit switches, and other contact-closure devices. Unlike solid-state inputs, relay input modules utilize physical relays to provide electrical isolation and ensure safe and reliable signal detection, especially in applications where a higher level of isolation or specific voltage/current characteristics are required for field signals. These modules are built with the inherent fault-tolerant architecture of TRICONEX systems, ensuring continuous, error-free operation even in the presence of component failures.
Key Functions
- Discrete Signal Acquisition: Receives on/off signals from field devices.
- Electrical Isolation: Provides galvanic isolation between field wiring and the control system logic, preventing ground loops and protecting the control system from field disturbances.
- Signal Conditioning: Conditions the input signals for reliable processing by the TMR controller.
- Diagnostic Capabilities: Incorporates extensive diagnostics to detect and report module and field wiring faults, enhancing system integrity.
- Fault Tolerance: Works within the TMR architecture, where three independent channels process inputs in parallel, and a voting mechanism ensures the integrity of the signal.
Product Parameters (Typical)
While specific parameters vary by model, typical specifications for TRICONEX Relay Input Modules include:
- Number of Input Points: Commonly 16, 32, or other configurations.
- Nominal Input Voltage: Often a range (e.g., 24 VDC, 48 VDC, 125 VDC/VAC).
- Operational Voltage Range: The acceptable voltage range for input signals.
- Absolute Maximum Input Voltage: The maximum voltage the module can withstand without damage.
- Input Current: The current drawn by each input point (e.g., in mA).
- Input Impedance: The electrical resistance of the input circuit.
- Input Delay: The time taken for the module to register an input state change.
- Isolation: Specifies the dielectric strength (e.g., 500 VDC, 800 VDC) between functional earths, and between functional earth and protective earth.
- Diagnostics: Includes features like Force-to-Value Diagnostic (FVD) for detecting "stuck-open" conditions.
- Hot Swappable: Support for online replacement of modules without process interruption.
- Certifications: Typically TÜV certified up to Safety Integrity Level (SIL) 3 in accordance with IEC 61508.
Product Advantages
- Unparalleled Safety & Reliability: The core advantage lies in the Triple Modular Redundant (TMR) architecture. Each relay input module often has three isolated channels that independently process field data. A 2-out-of-3 voting mechanism in the main processor ensures high integrity and error-free operation, even if one channel fails.
- Fault Tolerance: Designed to tolerate multiple faults without causing a nuisance trip or affecting process operation. A module can continue to operate normally with a single fault, and diagnostics can detect specific types of multiple faults.
- Continuous Operation: Hot-swappable design allows for online replacement of faulty modules without interrupting the controlled process, maximizing plant availability.
- Comprehensive Diagnostics: Extensive built-in diagnostics continuously monitor the module and field wiring for faults, providing early detection and preventing unsafe conditions.
- High Electrical Isolation: The use of relays provides excellent isolation, protecting the control system from transient voltages, noise, and ground faults from the field.
- Compliance with Safety Standards: Designed and certified to meet rigorous international safety standards like IEC 61508 for SIL 3 applications, ensuring adherence to the highest safety practices.
- Robustness: Engineered to withstand harsh industrial environments, ensuring long-term performance and reliability.
Precautions
- ESD Protection: Always handle modules with appropriate Electrostatic Discharge (ESD) precautions to prevent damage to sensitive electronic components.
- Correct Wiring: Adhere strictly to the wiring diagrams and guidelines provided in the product manual. Incorrect wiring can lead to module damage, false readings, or unsafe conditions.
- Field Device Compatibility: Ensure that the field devices connected to the relay input module are compatible with its input voltage, current, and switching characteristics.
- External Termination Panels (ETPs): Many TRICONEX input modules require specific External Termination Panels (ETPs) for field wiring connections. Ensure the correct ETP is used and properly installed.
- Environmental Conditions: Operate the module within its specified temperature, humidity, and vibration limits to ensure optimal performance and longevity.
- Power Supply Integrity: Verify that the power supply to the module is stable and within the specified voltage range.
- Module Keying: TRICONEX modules are typically mechanically keyed to prevent incorrect insertion into chassis slots. Do not force a module into a slot if it does not fit.
- Regular Diagnostics Review: Periodically review diagnostic alarms and indicators to address potential issues promptly.
Product Applications
TRICONEX Relay Input Modules are critical in safety-critical applications across various industries where the highest levels of reliability and safety are paramount.
- Emergency Shutdown Systems (ESD): Used to receive signals from emergency stop buttons, safety switches, and process interlocks to initiate safe shutdown sequences in response to hazardous conditions.
- Fire and Gas (F&G) Systems: Receives inputs from fire detectors, smoke detectors, and gas sensors to activate alarms, initiate suppression systems, and trigger emergency shutdowns.
- Burner Management Systems (BMS): Monitors flame presence, fuel pressure, and other critical parameters to ensure safe startup, operation, and shutdown of industrial burners and furnaces.
- High-Integrity Pressure Protection Systems (HIPPS): Receives signals from pressure transmitters to initiate automatic shutdown of pipelines or vessels if pressure exceeds safe limits.
- Turbomachinery Control (TMC): Monitors critical parameters of turbines, compressors, and pumps to ensure safe operation and initiate shutdowns in case of abnormal conditions.
- Nuclear Power Plants: Employed in safety-related control systems due to their unparalleled fault tolerance and reliability.
- Oil & Gas (Upstream, Midstream, Downstream): Crucial for preventing incidents in drilling, pipelines, refineries, and petrochemical plants.
- Chemical and Pharmaceutical Industries: Ensuring safe operation of reactors, processes, and preventing hazardous releases.
