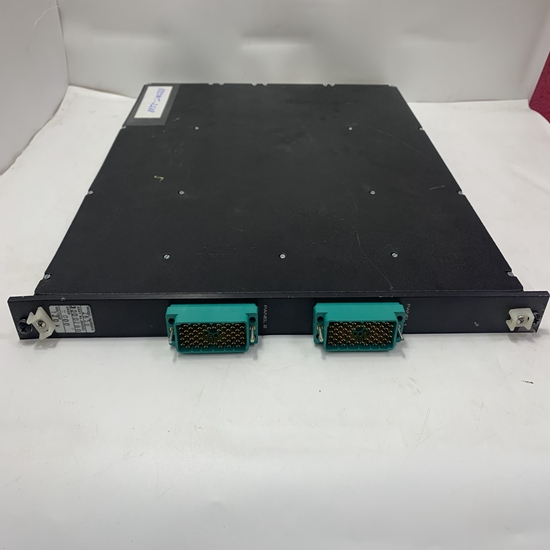

TRICONEX 2553 3000109-300 Power Board
Product Description：
TRICONEX power boards are essential components within TRICONEX safety instrumented systems (SIS). These boards provide the necessary power to the various modules in a TRICONEX chassis, ensuring reliable and continuous operation of critical safety applications. They are designed with a focus on high availability, fault tolerance, and diagnostics, consistent with the overall TRICONEX architecture for preventing hazardous events.
Key Functions
- Power Conversion: Converting incoming AC or DC power to the regulated DC voltages required by TRICONEX modules (e.g., 24V DC).
- Power Distribution: Distributing power efficiently and reliably to all modules within the chassis.
- Redundancy Support: Often designed with redundant inputs and outputs to ensure continuous power delivery even if one power source fails.
- Diagnostic Capabilities: Incorporating built-in diagnostics to monitor power status, detect faults, and provide alerts.
Product Parameters (Typical)
- Input Voltage Range: Common ranges include 100-240V AC/DC or 185-285V AC for AC inputs, and 18-35V DC for DC inputs.
- Output Voltage: Typically 24V DC, which is the standard operating voltage for most TRICONEX modules.
- Output Current/Power Capacity: Varies by model, but often in the range of 1.5A to 10A at 24V DC, or power output capacities like 240W.
- Frequency: 50/60 Hz for AC inputs.
- Redundancy: Often features dual power inputs for enhanced reliability.
- Operating Temperature Range: Wide operating temperature ranges are common, such as -40°C to 70°C (-40°F to 158°F) for industrial environments.
- Hold Time: Minimum output hold time (e.g., 20 ms) to bridge short power interruptions.
- Fuse Rating: Specified fuse ratings for protection (e.g., 2.5 amps time-delay).
- Dimensions and Weight: Varies significantly depending on the model and power capacity.
Product Advantages
- High Reliability & Fault Tolerance: Crucial for safety-critical applications, often incorporating redundant designs (e.g., dual inputs) to eliminate single points of failure.
- Robust Construction: Built to withstand harsh industrial environments, including wide temperature variations, vibrations, and electromagnetic interference (EMI).
- Built-in Diagnostics: Comprehensive diagnostic features monitor power health, detect anomalies, and provide timely alerts, reducing downtime and simplifying troubleshooting.
- Hot-Swappable: Many TRICONEX power modules are hot-swappable, allowing for replacement without shutting down the entire safety system, thus maximizing plant availability.
- Seamless Integration: Designed to integrate perfectly with the TRICONEX chassis and other modules, ensuring optimal system performance.
- Certified for Safety Applications: Compliant with stringent international safety standards (e.g., IEC 61508 for Functional Safety), making them suitable for Safety Integrity Level (SIL) applications.
Precautions
- ESD (Electrostatic Discharge) Protection: Always handle power boards with appropriate ESD precautions to prevent damage to sensitive electronic components.
- Proper Installation: Follow the manufacturer's installation guidelines meticulously, including correct mounting, grounding, and wiring to ensure safe and reliable operation.
- Power Requirements: Ensure the input power supply meets the specific voltage, current, and frequency requirements of the power board. Using an incompatible power source can cause damage or malfunction.
- Environmental Conditions: Operate the power board within its specified temperature, humidity, and vibration limits. Exceeding these limits can lead to premature failure.
- Wiring Integrity: Verify all power connections are secure, properly insulated, and free from shorts or loose connections to prevent electrical hazards and ensure stable power delivery.
- Redundancy Management: If implementing redundant power supplies, ensure both sources are properly configured and monitored for optimal fault tolerance.
- Maintenance: While designed for high reliability, regular visual inspections and adherence to recommended maintenance schedules are advisable.
Product Applications
TRICONEX power boards are integral to TRICONEX safety systems, which are deployed in a wide array of critical industrial applications where safety and uninterrupted operation are paramount.
- Oil and Gas:
- Emergency Shutdown Systems (ESD) for offshore platforms, refineries, and pipelines.
- Burner Management Systems (BMS) for furnaces and boilers.
- High-Integrity Pressure Protection Systems (HIPPS).
- Chemical and Petrochemical:
- Process shutdown and safety interlock systems to prevent runaway reactions.
- Fire and Gas (F&G) detection and suppression systems.
- Power Generation:
- Turbine control and protection systems.
- Boiler and balance-of-plant safety.
- Mining and Metals:
- Emergency stop systems for heavy machinery.
- Safety interlocks for conveyors and crushing equipment.
- Water and Wastewater Treatment:
- Safe operation of pumping stations and treatment processes.
- Overfill protection systems for tanks.
The structure and details of the product：
Our services：
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Warranty: one year
