TK6070IP MITSUBISHI

TK6070IP MITSUBISHI I / O module

Product  Description：

Mitsubishi Electric I/O (Input/Output) modules are fundamental components of the MELSEC PLC ecosystem. They act as the primary interface between the central processing unit and the physical world. These modules receive signals from input devices like pushbuttons and sensors and send commands to output devices such as motors, lamps, and solenoids. Engineered for high-speed response and long-term durability, they are a staple in global industrial automation.

Product Parameters

The technical profile of these modules varies depending on the specific series (such as iQ-R, iQ-F, or Q series), but standard parameters include:

• Point Density: Available in configurations of 8, 16, 32, or 64 points per module to accommodate various cabinet sizes.

• Input Voltage: Common ratings include 24V DC (Sink/Source), 100V AC, and 240V AC.

• Output Types: Options include Relay outputs for high current, Transistor outputs for high-speed switching, and Triac outputs for AC loads.

• Rated Load Current: Typically 0.1A to 0.5A per point for transistor modules and up to 2A for relay modules.

• Response Time: Fast switching speeds with input filter times adjustable from 0.1ms to 70ms.

• Isolation: High-voltage photocoupler isolation between the external terminals and the internal PLC logic.

• Connection Type: Choice of removable terminal blocks, D-sub connectors, or high-density 40-pin connectors.

Product Advantages

Mitsubishi I/O modules are recognized for their engineering excellence and operational efficiency:

• High-Speed Synchronized Control: When paired with the latest backplanes, these modules support high-speed data refreshing, which is essential for precision motion control.

• Enhanced Troubleshooting: Every module features status LEDs for each individual I/O point, allowing maintenance personnel to diagnose wiring issues or sensor failures instantly.

• Space-Saving Design: High-density modules allow for up to 64 points in a very slim housing, significantly reducing the size of the control panel.

• Superior Durability: The use of high-quality internal relays and robust transistor circuits ensures millions of switching cycles even in demanding environments.

• Flexible Wiring Options: Terminal blocks are often removable, allowing for "pre-wiring" of the cabinet and easy module replacement without disconnecting individual wires.

Product Applications

These modules are used across a wide spectrum of automated industries:

• Automotive Assembly: Managing the sensors and actuators for robotic welding cells and conveyor systems.

• Food and Packaging: Coordinating high-speed bottling, labeling, and sorting machines where timing is critical.

• Water Treatment: Monitoring level switches and flow meters while controlling pumps and chemical valves.

• Semiconductor Manufacturing: Interfacing with ultra-precise sensors in cleanroom environments.

• Building Automation: Controlling elevators, lighting systems, and HVAC dampers in large-scale infrastructure.

Important Precautions

To ensure safety and prevent hardware damage, the following precautions should be followed:

• Polarized Wiring: For DC input modules, verify whether the system uses Sink or Source logic. Incorrect wiring will prevent signal detection and may damage the module.

• Inductive Load Protection: When using transistor outputs to drive inductive loads like solenoids, always install a surge suppression diode to prevent back-EMF damage.

• Common Terminal Limits: Be aware of the maximum current allowed per common terminal. Exceeding this limit can cause the internal traces of the module to overheat and fail.

• Environmental Protection: Install modules in an IP54 or higher rated enclosure if the environment contains conductive dust, oil mist, or high moisture levels.

• Power-Off Handling: Always turn off the external power supply before wiring or replacing a module to prevent electrical shock or accidental machine movement.

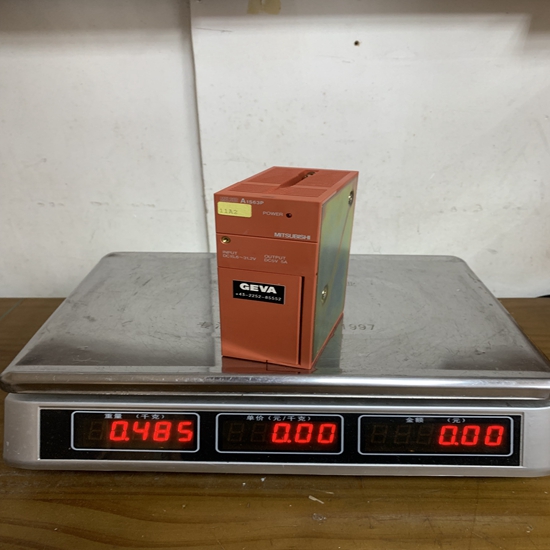

The structure and details of the product：
