TED134030WL GE FANUK

TED134030WL GE Fanuc Power Board

Product  Description：

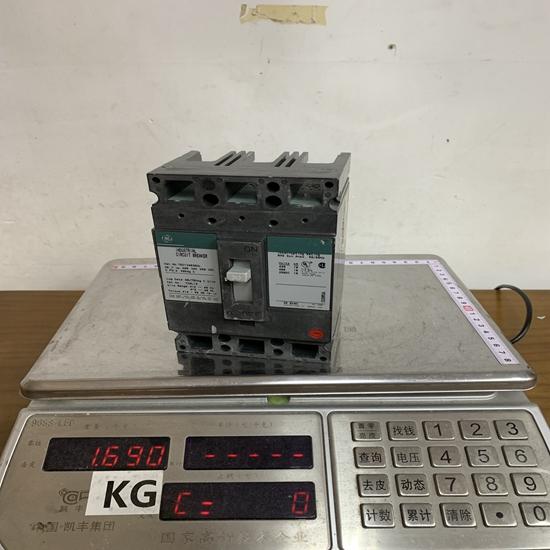

The GE TED134030WL is a high-performance Molded Case Circuit Breaker (MCCB) from the E150 product line. This three-pole thermal-magnetic breaker is engineered to provide reliable overcurrent and short-circuit protection for industrial and commercial electrical systems. The "WL" suffix in the model name indicates that the unit is factory-equipped with aluminum/copper line and load lugs, facilitating a "feed-thru" installation.

Product Parameters

The technical profile of the TED134030WL is defined by its robust electrical ratings and compact E150 frame size:

• Amperage Rating: 30 Amps

• Voltage Rating: 480V AC (Standard), with a maximum AC rating of 600V and a maximum DC rating of 500V

• Number of Poles: 3 Poles

• Interrupting Capacity (AIC): 18 kA at 240/480V AC, 14 kA at 600V AC, and 10 kA at 500V DC

• Trip Type: Non-interchangeable Thermal-Magnetic (LI - Long-time and Instantaneous protection)

• Frame Type: E150 (Mid-tier Core E)

• Phase: 3-Phase

• Connection Type: Feed-Thru with Line and Load Lugs (Cu/Al)

• Dimensions: Approximately 6.31 inches Height x 4.13 inches Width x 3.38 inches Depth

• Temperature Rating: 40°C Standard Ambient

Product Advantages

The GE TED series offers several key benefits for electrical distribution and machinery protection:

• Versatile Application Markings: This breaker carries HACR (Heating, Air Conditioning, and Refrigeration) and HID (High Intensity Discharge) ratings, making it suitable for a wide variety of specific equipment loads.

• Rugged Construction: Part of the proven E150 line, the molded case design provides excellent durability and electrical insulation for industrial environments.

• Flexible Mounting: Designed for panel-mounted applications, its compact size allows for efficient use of space within electrical enclosures.

• Reliable Dual Protection: The thermal element protects against long-term overloads, while the magnetic element provides instantaneous protection against high-fault short circuits.

• Ready for Installation: By including factory-installed copper/aluminum lugs, the "WL" model reduces assembly time and ensures secure wire terminations right out of the box.

Product Applications

The TED134030WL is commonly utilized as a branch or feeder protection device in the following sectors:

• HVAC Systems: Used as a primary disconnect or protection for industrial air conditioning and heating units (HACR rated).

• Commercial Lighting: Ideal for managing high-intensity discharge (HID) lighting circuits in warehouses and parking facilities.

• Industrial Machinery: Providing 3-phase power protection for small motors, pumps, and control panels within manufacturing plants.

• Power Distribution: Functioning within panelboards and switchboards to distribute 480V power to various sub-circuits.

• Renewable Energy: Suitable for certain DC circuits up to 500V, supporting solar or battery storage distribution systems.

Important Precautions

To ensure safety and equipment longevity, the following guidelines must be observed:

• Reverse Feed Capability: While many TED breakers are suitable for reverse feed, always verify the specific marking on the breaker body before performing a reverse-line installation.

• Torque Specifications: When connecting cables to the included WL lugs, always use a calibrated torque wrench to meet the manufacturer’s specified inch-pounds to prevent overheating or terminal failure.

• Voltage Limits: Do not apply this breaker to circuits where the system voltage exceeds the 600V AC or 500V DC maximum rating.

• Environmental Exposure: Ensure the breaker is installed in a NEMA-rated enclosure that protects against moisture, dust, and corrosive chemicals, as the unit is designed for indoor panel use.

• De-energized Maintenance: Always disconnect the upstream power source before attempting to inspect, clean, or replace the circuit breaker to avoid the risk of arc flash or electric shock.
