TCSMCNAM3M002P SCHNEIDER

TCSMCNAM3M002P SCHNEIDER Analog Output Modules

Product  Description：

Schneider Electric Analog Output Modules, primarily engineered for the Modicon ePAC and PLC platforms (such as the Modicon M580, M340, and Quantum ranges), are high-precision industrial components designed to convert digital control signals into continuous, variable analog signals. These modules transmit precise voltage or current outputs to field devices, enabling smooth, proportional regulation of final control elements such as control valves, variable frequency drives, dampers, and analog indicators across industrial processes.

Product Parameters

The technical specification profile of Schneider Electric Analog Output Modules emphasizes precision, signal isolation, and fast dynamic response:

• Channel Density: Available in flexible configurations, typically featuring 4-channel, 8-channel, or 16-channel variants per module slot.

• Output Signal Ranges: Configurable channel-by-channel for standard industrial signal types, including 0 to 20 mA, 4 to 20 mA, -10V to +10V DC, and 0 to 10V DC.

• Digital-to-Analog Conversion Resolution: High-resolution conversion, generally 15-bit plus sign or 16-bit, providing precise signal step changes down to microampere or millivolt levels.

• Accuracy and Temperature Drift: High conversion precision, typically within plus or minus 0.1 percent of full scale at 25°C, with low drift characteristics across the operational thermal spectrum.

• Isolation Rating: Robust galvanic channel-to-bus and channel-to-ground isolation, typically rated up to 1500V AC or higher, protecting internal PLC backplane logic from field-side electrical surges.

• Output Load Impedance: Supports standard industrial loads, up to 750 Ohms for current loop outputs and a minimum load resistance of 1000 Ohms for voltage outputs.

Product Advantages

Schneider Electric Analog Output Modules offer distinct technical benefits that ensure accurate and reliable process execution:

• Individual Channel Configuration: Each output channel can be independently parameterized for current or voltage ranges, reducing the need for multiple specialized module types in a single cabinet.

• Advanced Channel Diagnostics: Integrated hardware diagnostics continuously monitor for field wiring anomalies, such as open-loop current detection or short-circuit voltage conditions, instantly triggering system alarms.

• Fallback and Hold Behaviors: User-configurable safe-state outputs allow channels to either hold their last valid value or drop to a pre-defined safety value (e.g., 4 mA) upon loss of communication with the primary controller.

• Hot-Swappable Design: Supports live module replacement on active backplanes without powering down the rack, minimizing downtime during routine maintenance or emergency replacements.

• Seamless EcoStruxure Software Mapping: Deeply integrated into EcoStruxure Control Expert, enabling direct scaling to engineering units (such as percentage, temperature, or flow rate) without complex custom code.

Product Applications

These analog modules are critical for closed-loop control and continuous process regulation across industrial sectors:

• Process Control Valves: Modulating pneumatic or motorized control valves to manage fluid flow rates, pipeline pressure, and vessel levels in chemical and refining plants.

• Speed Regulation for Drives: Sending reference speed signals (4-20 mA or 0-10V) to variable frequency drives (VFDs) powering large pumps, ventilation fans, and heavy conveyors.

• Heating and Temperature Control: Adjusting power output regulators and thyristor units for industrial furnaces, boilers, and continuous baking ovens.

• HVAC and Damper Actuation: Controlling proportional air dampers, chilling water valves, and air handling units in large infrastructure facilities.

• Signal Generation and Testing: Driving analog recorders, panel meters, and external testing equipment with precise reference signals.

Important Precautions

To preserve signal integrity and avoid hardware damage, the following installation and handling precautions must be followed:

• Load Impedance Matching: Verify that the load connected to a current output channel does not exceed the module's maximum allowed loop resistance. Overloading causes signal clipping and inaccuracy at higher mA values.

• Shielding and Grounding Standards: Always use shielded twisted-pair (STP) cables for analog output signals. Ground the cable shield at a single designated point (typically at the cabinet side) to prevent ground loops and electromagnetic interference from corrupting the signal.

• Unused Channel Treatment: Configure unused channels as disabled in the software environment, or jumper them according to manufacturer specifications, to prevent floating inputs or spurious fault diagnostics.

• Separation from High-Voltage Wiring: Route analog output cables through dedicated, isolated cable raceways, keeping them physically separated from high-voltage AC power lines and motor drive outputs to prevent inductive noise coupling.

• External Power Supply Integrity: When using external power supplies to energize field current loops, ensure the supply is stable, regulated, and features overcurrent protection to avoid damaging the module's output channels.

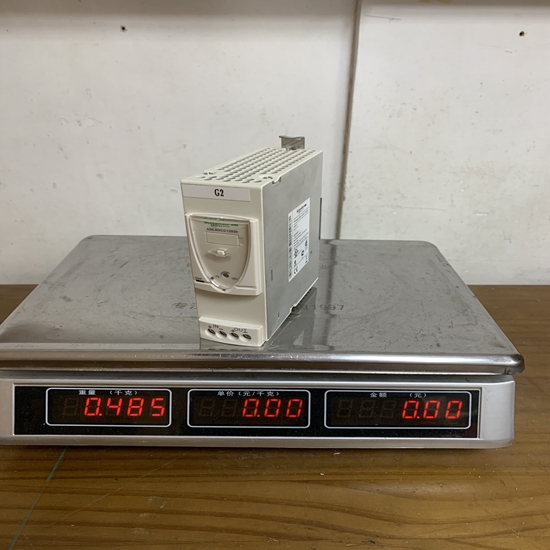

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
